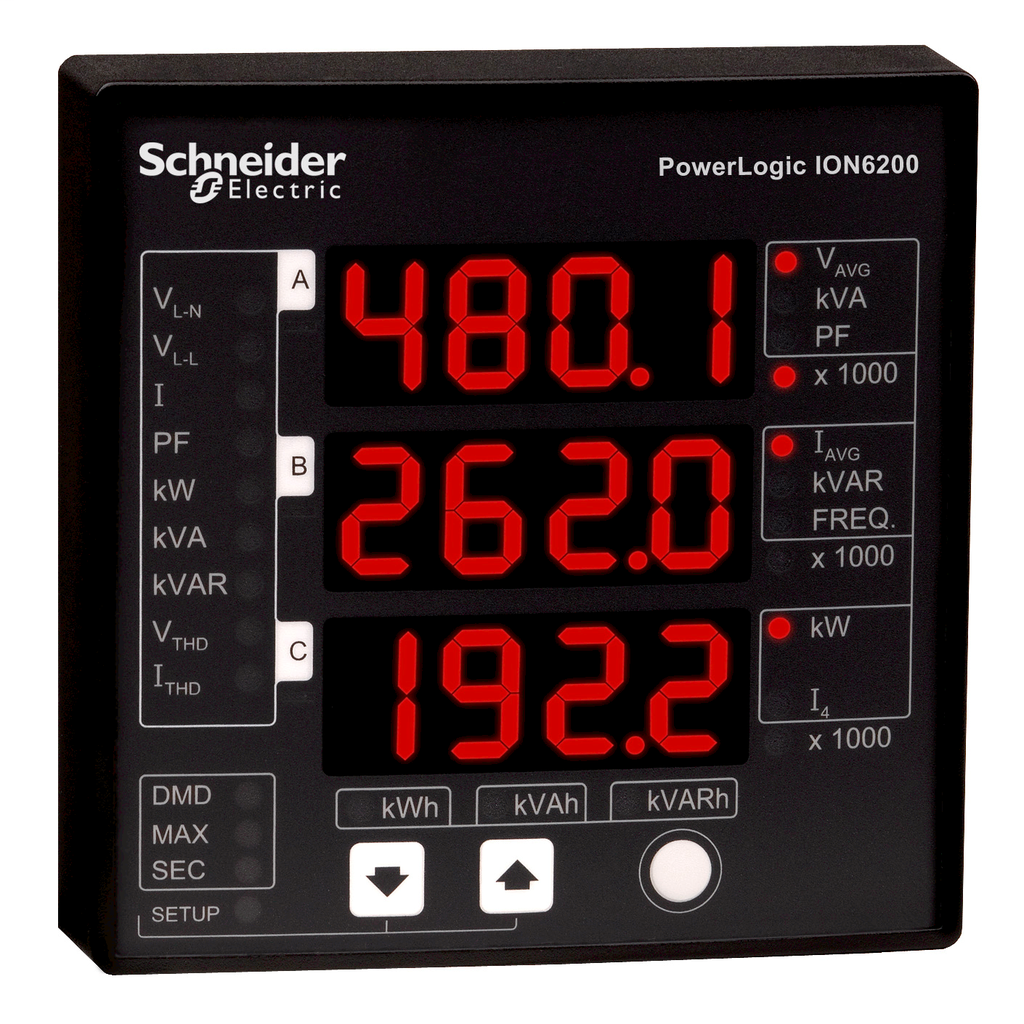

Product image for SQD S6200A0A0B0Z0A0R ION6200 meter
Image thumbnail 0
Image thumbnail 1
Email

SQD S6200A0A0B0Z0A0R ION6200 meter

Manufacturer: Square-D / Schneider | Catalog # S6200A0A0B0Z0A0R | Cooper Electric Part # 847312
$1,234.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1
ION6200 meter (all measurmt) - w/display 240VAC/300VDC - wo com - w pwd

Technical Information

Accuracy
CLASS 0.5 POWER IEC 60687-CLASS 0.5 ENERGY IEC 60687-CLASS 0.5 POWER ANSI C12.20-CLASS 0.5 ENERGY ANSI C12.20,CURRENT 0.3 -VOLTAGE 0.3 -POWER +/- 0.5 -FREQUENCY +/- 0.1 -POWER FACTOR +/- 1 -ENERGY +/- 0.5
Amperage
10 Amp
Applications
INDOOR,METERING
Indicator
7 SEGMENTS LED + DECIMAL POINT
Line Rated Current
10 A
Mounting Type
Panel-mounted
Net Weight
0.68 kg
Number of Outputs
0
Output
0
Size
110 MM,110 MM,65 MM
Standard
CSA 1010-1,EN 61010-1,UL 3111-1
Storage Temperature
-40-85 degrees C
Type
APPARENT POWER TOTAL-APPARENT POWER PER PHASE-CURRENT-VOLTAGE-FREQUENCY-HARMONIC DISTORSION (I THD & U THD)-ACTIVE AND REACTIVE POWER TOTAL-ACTIVE AND REACTIVE ENERGY-APPARENT ENERGY-POWER FACTOR-DEMAND CURRENT (I1, I2, I3, IG)-ACTIVE AND REACTIVE POWER PER PHASE,ENERGY AND POWER QUALITY METER
Voltage
100...240 Volt AC 50/60 HZ-110...300 Volt DC

Manufacturer Information

Brand
Square D
Sub Brand
ION6200,POWERLOGIC ION6200

General Product Info

12-Digit UPC
785901980728
GTiN
00785901980728
Product UPC
78590198072
Weight
1.50 lb

Dimensions

Depth
2.56 Inch
Height
4.33 Inch
Warranty Length
18 mth
Width
4.33 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Dichloromethane (Methylene chloride) and Bisphenol A (BPA) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CUL CSA C22.2
Country of Origin
Canada
