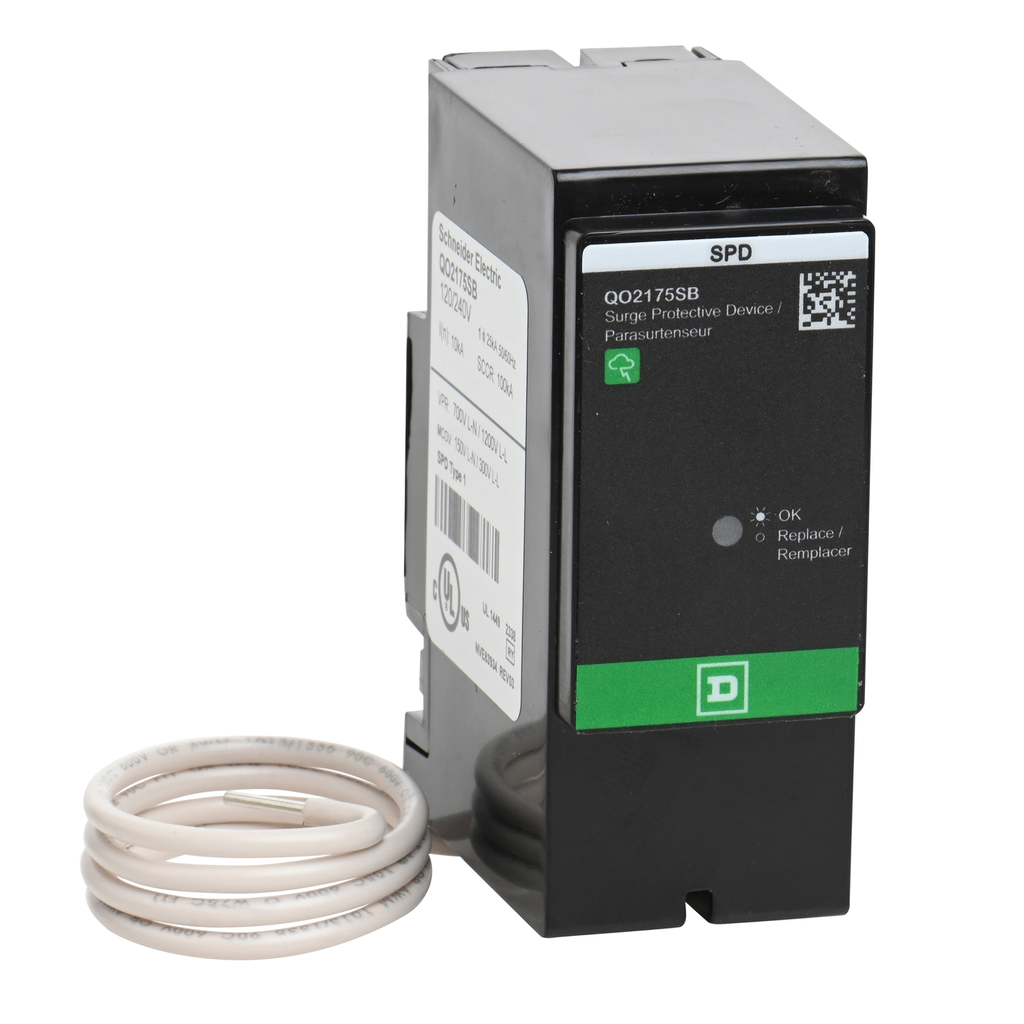

Square D QO2175SB 150 VAC 22.5 kA Surge Arrester

Manufacturer: Square-D / Schneider | Catalog # QO2175SB | Cooper Electric Part # 84692
$159.00/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Pick Up

at Ocean Opens Monday 7:00am ET
253 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
Square D™ load center surge protective devices, QO2175SB, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

Technical Information

Applications
THE EXCLUSIVE SQUARE D® SURGEBREAKER® TYPE 2 SURGE PROTECTIVE DEVICE (SPD) IS A PLUG-IN UNIT THAT INSTALLS AS EASILY AS A STANDARD CIRCUIT BREAKER. THE SURGEBREAKER USES TWO POLE SPACES
Circuit Breaker Type
QO
Enclosure
2
Input Voltage
1500 V
Interrupt Rating
22 kAIC
NEMA Size
2
Nominal Discharge Current
10 kA
Number of Phases
1 Phase
Number of Spaces
2
Operating Temperature
-20-65 degrees C
Standard
CSA C22.2,UL 1449
Type
Surge protection device
Voltage
120/240 Volt

Manufacturer Information

Brand
Square D
Sub Brand
QO SURGE BREAKER

General Product Info

12-Digit UPC
785901210894
GTiN
00785901210894
Product UPC
78590121089

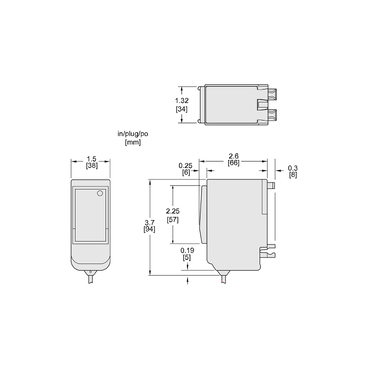

Dimensions

Depth
2.6 Inch
Height
3.7 Inch
Warranty Length
18 mth
Width
1.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CULus
Country of Origin
Mexico
Range Of Product
  • Surge Breaker
  • QO
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0025438
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.098485
Standards
  • UL 1449
  • CSA C22.2
Related Products
  • CQO112L100PGC
  • CQO112M100PC
  • CQO124M100PC
  • CQO132M100PC
  • CU12L400CB
  • CU12L400CB150
  • CU12L400CN
  • CU816D400CB
  • CU816D400CN
  • PBPQO4A100
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 2 kg CO2 eq.
  • 2.3679
Persona Type Names
  • End User
  • Consumer
  • Contractor
  • Original Equipment Manufacturer
  • Electrician
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 247 kg CO2 eq.
  • 247.47
Persona Type Ids
  • EU
  • EUA
  • LC
  • OM
  • SC
Input Voltage
  • 700 V L-N
  • 1500 V L-L
Carbon Footprint Of The Distribution Phase A4
  • 0.033546
  • 0 kg CO2 eq.
Product Destination
  • load center QO
Local Signalling
  • 1 LED green normal operation
UE Rated Operational Voltage
  • 120/240 V AC
