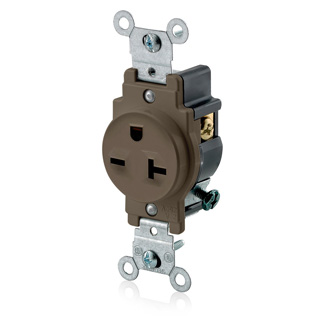

Product image for Leviton 5821 250 Volt 20 Amp 2-Pole 3-Wire NEMA 6-20R 2 Hp Brown Nylon Narrow Straight Blade Receptacle
Email

Leviton 5821 250 Volt 20 Amp 2-Pole 3-Wire NEMA 6-20R 2 Hp Brown Nylon Narrow Straight Blade Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 5821 | Cooper Electric Part # 846
$15.57/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Single Receptacle Outlet, Commercial Specification Grade, 20 Amp, 250 Volt, Side Wire, NEMA 6-20R, 2-Pole, 3-Wire - Brown

Technical Information

Amperage
20 Amp
Applications
For Commercial Use
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wired
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding,Self-Grounding
Horsepower
2 hp
Material
Nylon
Mounting Type
Wallbox
NEMA
WD-1
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.38 W x 16 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Side Wire
Type
Single Outlet,Straight Blade
Voltage
250 Volt
Wire Count
3,3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477249703
Color
Brown
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477249703
Product UPC
07847724970

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Ivory
NEMA
  • 6-20R
Features
  • Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
