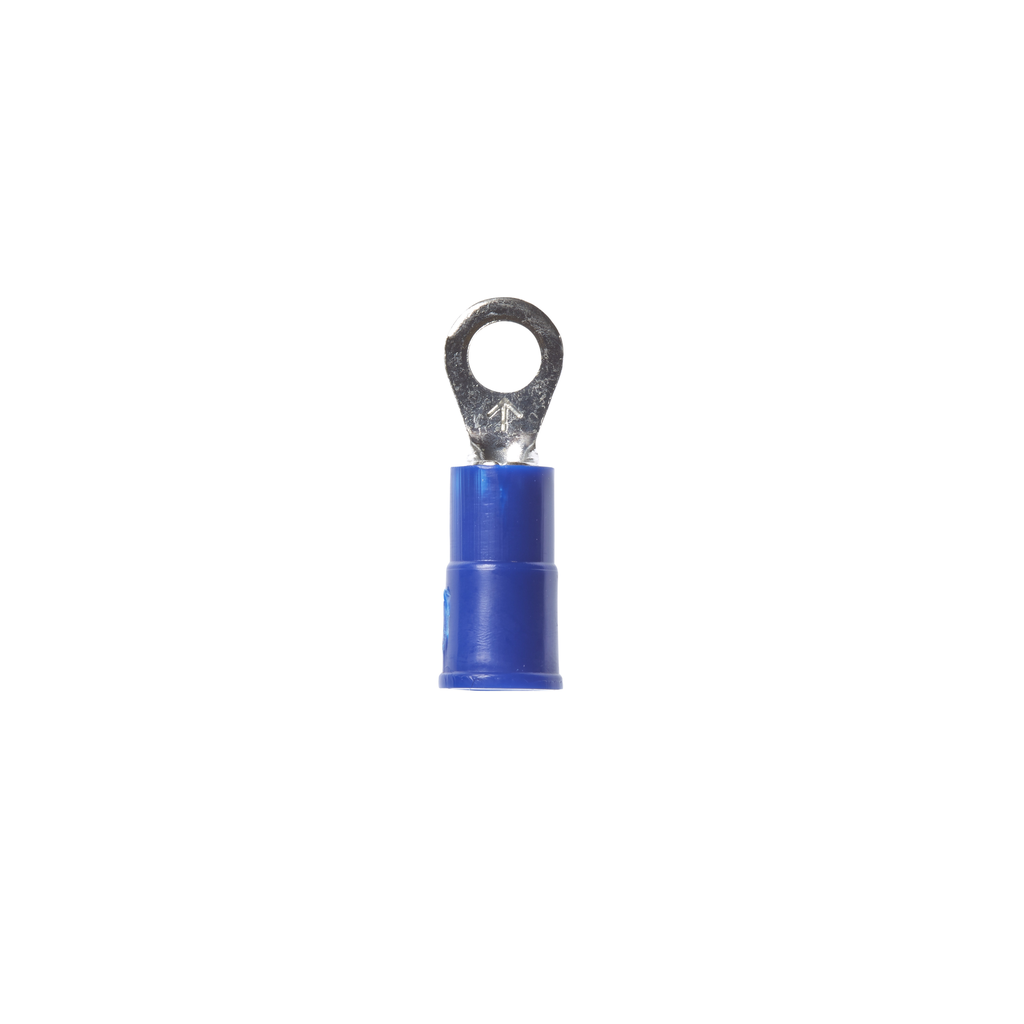

Product image for 3M 7010398190 3M™ Scotchlok™ Vinyl
Email

3M 7010398190 3M™ Scotchlok™ Vinyl

Manufacturer: 3M | Catalog # 7010398190 | Cooper Electric Part # 844075
$0.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Butted
Conductor Size
16-14 AWG
Insulation Material
Vinyl
Material
PVC
Standard
UL And CSA
Stud Size
6
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128588185
GTiN
00051128588185
Product UPC
05112858818

Dimensions

Length
0.8 Inch
Overall Length
0.8 in
Thickness
0.03 in
Width
0.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
