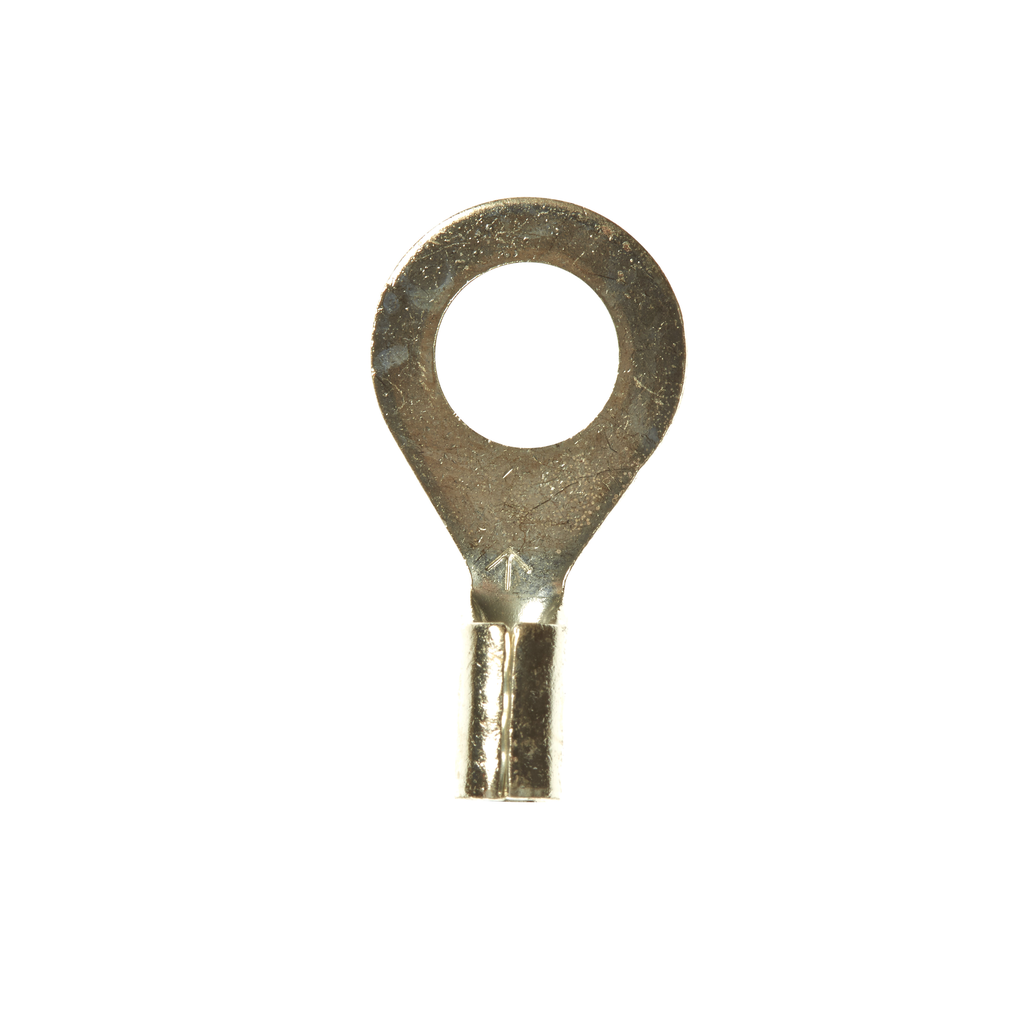

Product image for 3M 7100163989 3M™ Scotchlok™ Non-In
Email

3M 7100163989 3M™ Scotchlok™ Non-In

Manufacturer: 3M | Catalog # 7100163989 | Cooper Electric Part # 843936
$0.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
16-14 AWG
Insulation Material
Non-Insulated
Stud Size
1/4 Inch
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Ring

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007013747
GTiN
00054007013747
Product UPC
05400701374

Dimensions

Length
0.89 Inch
Overall Length
0.89 in
Thickness
0.03 in
Width
0.47 in

Certifications and Compliance

Country of Origin
USA
Features
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
