BB CSP1000 CU TP SPLICE SHORT BRL 1

Manufacturer: Blackburn / Thomas & Betts | Catalog # CSP1000 | Cooper Electric Part # 843430
$6,791.49/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 1000 kcmil, Tin Plated, Die Color Code N/A

Technical Information

Barrel Length
Short
Conductor Size
1000 kcmil
Conductor Type
Copper
Connector Type
Compression
Material
Copper
Standard
UL E9809
Type
Type CSP, Short Barrel
Voltage
35 kV
Wire Size
1000 kcmil

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786132188
Finish
Tin Plated
GTiN
00783786132188
Product UPC
78378613218

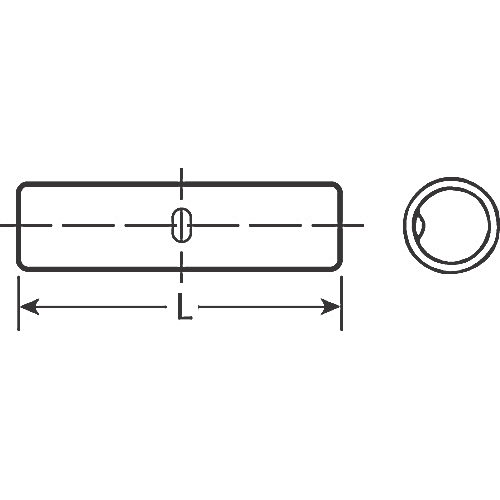

Dimensions

Length
3-5/8 Inch
Features
  • Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.
  • Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.
  • Specifically chamfered barrel for ease of installation.
  • UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.
  • Color-coded for matching die identification.
Notes
  • For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
