Ocal UNF505-G 1-1/2 Inch Ocal Gray Female Union

Manufacturer: Ocal / Thomas & Betts | Catalog # UNF505-G | Cooper Electric Part # 8411
$410.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

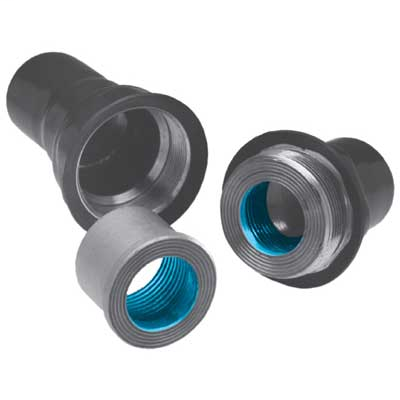

PVC Coated Explosion and Dust-Ignition Proof UNF Female Union, Pipe Size 1-1/2 Inch/41 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 2.75 Inch/69.85 Millimeters, Overall Diameter 3.06 Inch/77.72 Millimeters, Electrogalvanized Steel, Gray

Technical Information

Applications
Used to Connect Conduit to Conduit, or to Provide a Means for Future Modification of the Conduit System
Connection Type
Female
Material
Steel
Size
1 1/2 in
Standard
CSA,UL 1203
Trade Size
1-1/2 Inch
Type
Type UNF

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508413187
Color
Gray
Finish
PVC Coated
GTiN
00704508413187
Product UPC
70450841318

Dimensions

Length
2-3/4 Inch
Outside Diameter
3.06 in
Features
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • Pressure sealing sleeves to protect the connection.
Notes
  • Dimensional values are of uncoated fittings.
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
Application
  • To connect conduit to conduit, or to provide a means for future modification of the conduit system.
