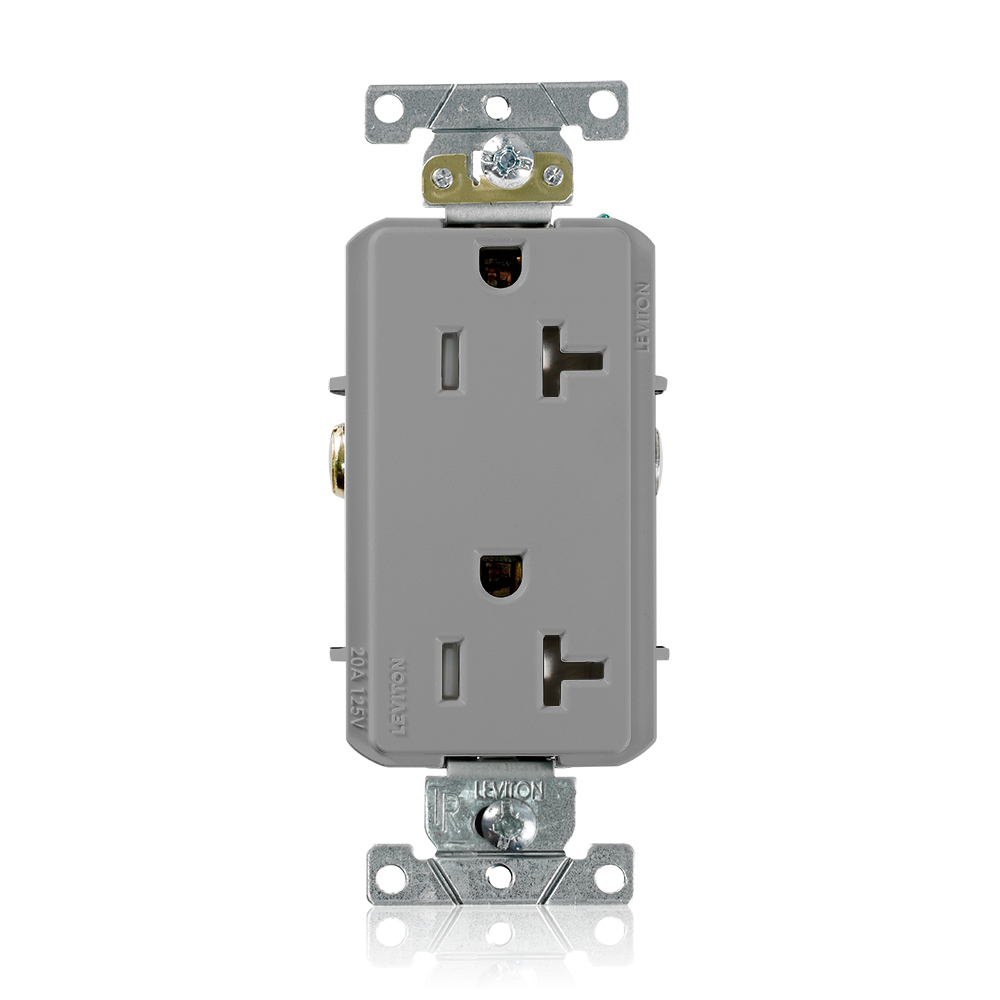

Product image for LEV TDR20-GY GR REC DUP DEC TR 2PO
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LEV TDR20-GY GR REC DUP DEC TR 2PO

Manufacturer: Leviton Mfg Co | Catalog # TDR20-GY | Cooper Electric Part # 840991
$24.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Back And Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 (Min.)
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1 hp
Material
Nylon
Mounting Type
Wall Box
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
75 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3,3
Wire Size
14-10 AWG
Wire Type
Stranded Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®, True Touch™

General Product Info

12-Digit UPC
078477392157
Color
Light Gray
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477392157
Product UPC
07847739215

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
CULus,CULus,NOM-ANCE,NOM-ANCE
Country of Origin
Mexico
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • MX321216
  • US7355117
  • US7820909
  • US7868719
  • US8242362
  • US8684771
