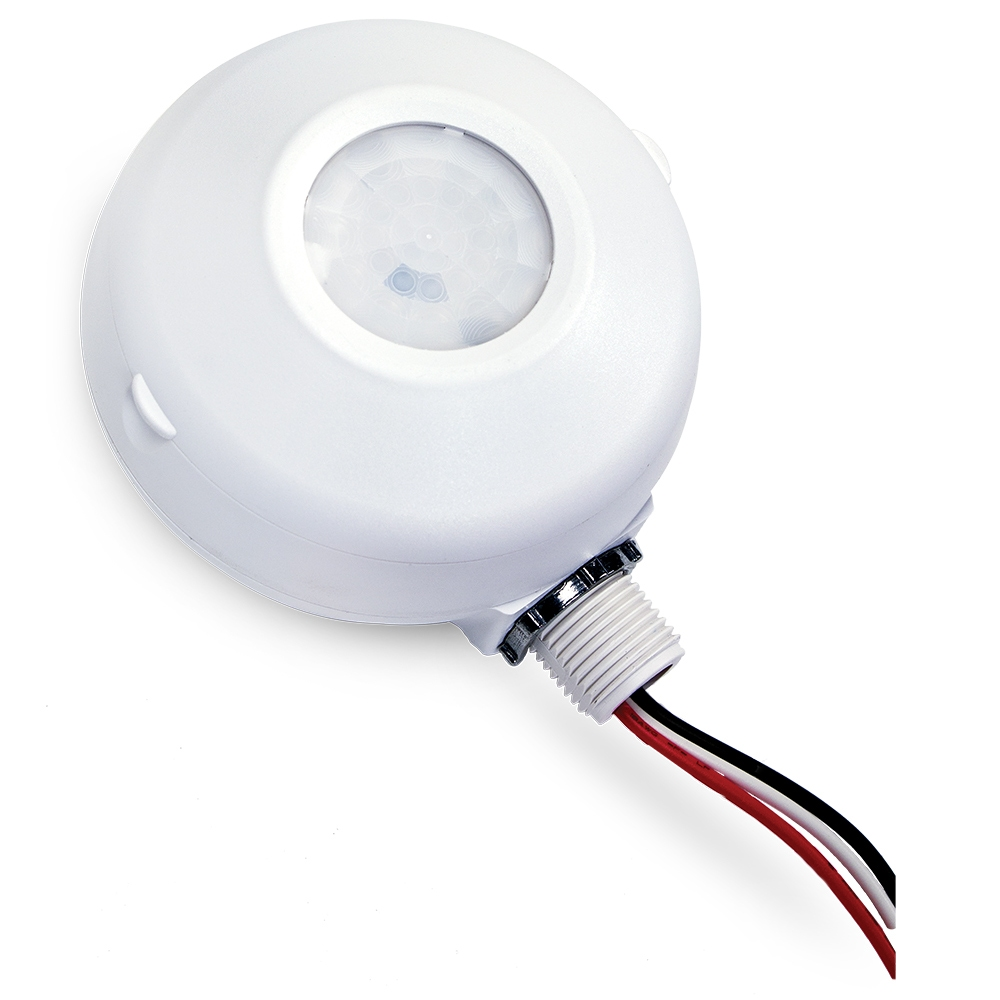

Intermatic IOS-HB-U 15-80FT CEILING MNT 1200-2800SF OCC SNSR

Manufacturer: Intermatic, Inc | Catalog # IOS-HB-U | Cooper Electric Part # 840181
$165.80/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
For installation on High Bay Light Fixtures. Provides ON/OFF control of lights by presence in warehouses and other industrial spaces.

Technical Information

Applications
Indoor Sensing Control
Grade
Commercial
Input Voltage
120-277 V
Load Type
1600 VA @ 277 VAC (Inductive Ballast),800 VA @ 120 VAC,800 WTT @ 120 VAC (Incandescent)
Max Operating Temperature
131 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Ceiling
Operating Temperature
131 degrees F
Response Time
15 sec - 30 min
Sensing Range
360 DEG 1200 SQ-FT (Lens 1), 360 DEG 2800 SQ-FT (Lens 2)
Sensor Type
Passive Infrared
Standard
CULus Listed,Title CA 20 Listed,UL/cUL Listed
Temperature Rating
32 - 131 degrees F
Type
Occupancy Sensor
Voltage
120-277 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275139923
Color
White
GTiN
00078275139923
Product UPC
07827513992
Weight
0.6 lb

Dimensions

Height
2-3/4 Inch
Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features
  • Passive Infrared (PIR) sensing for presence detection
  • Two lenses included
  • Coverage: 1200 ft2 (Lens 1) or 2800 ft2 (Lens 2) when mounted at 15 to 50 ft
  • Zero-crossing technology for long life and performance

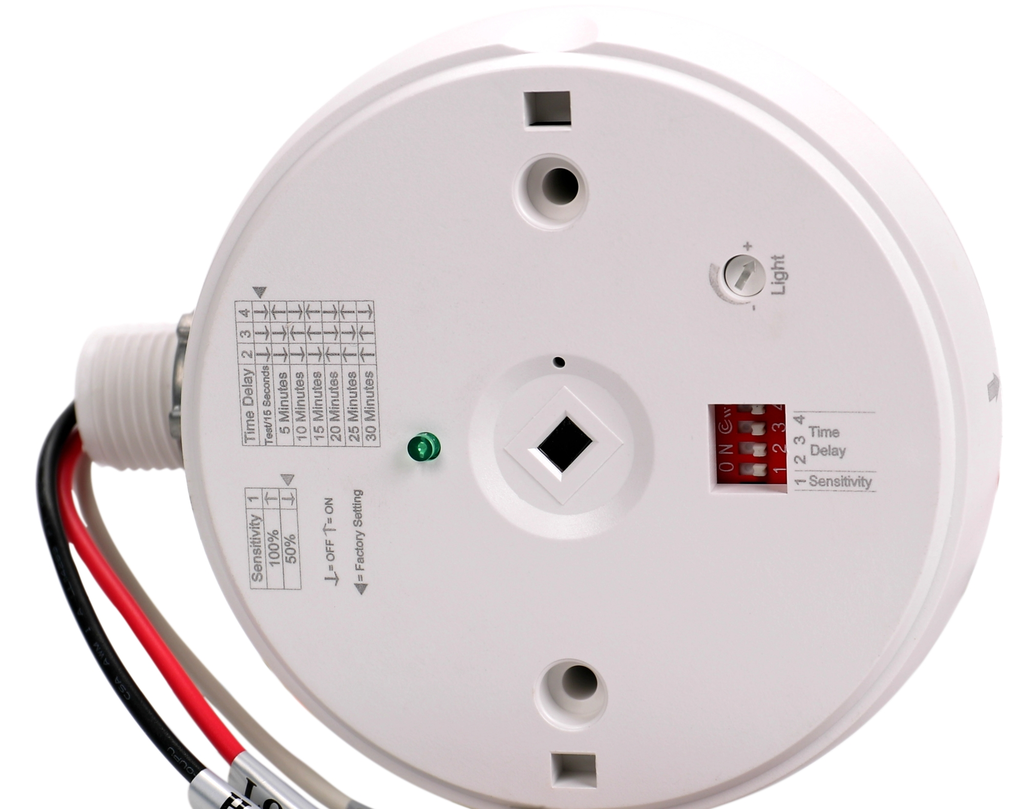

  • Adjustable ambient light sensor override
  • Incandescent/Fluorescent/CFL/LED compatible
  • NA
