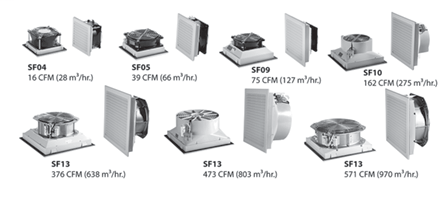

Product image for Hoffman SF1316433 IP54 13" 571 Filter Fan 115V 9011
Email

Hoffman SF1316433 IP54 13" 571 Filter Fan 115V 9011

Manufacturer: Hoffman | Catalog # SF1316433 | Cooper Electric Part # 839915
$688.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Click fit design quickly installs into enclosure wall; no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Reverse airflow option on SF13 models available to push/pull air through higher static pressure. Standard foam-in-place gasket. Similar cut-out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.

Technical Information

Amperage
1.02/1.47 Amp
Applications
Industrial
Current
1.02 Amp
Max Temperature
140 degrees F
Min Temperature
5 degrees F
Number of Phases
1 Phase
Size
12.72x12.72x5.51 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type
SF13 571 CFM (970 m3/hr.) Side-Mount Filter Fan
Voltage
115 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510202125
Finish
Black
GTiN
00783510202125
Product UPC
78351020212
Weight
10.14 lb

Dimensions

Depth
5.51 Inch
Height
12.72 Inch
Width
12.72 in
Features
  • Optional thermostat available to save energy and extend service life
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
  • Terminal wire connections
  • Simple snap-open grille for easy filter replacement
  • Similar cut-out sizes as other filter fan manufacturers
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Standard foam-in-place gasket
  • Enclosure side wall mounting
Applications
  • Industrial automation
  • Wind energy systems
  • Package handling equipment
  • Automotive assembly
  • Food and beverage process controls
Accessories
  • Thermostat
  • Rain shroud
  • Replacement filters
Finish
  • RAL 7035 light-gray, UV-resistant plastic standard
  • RAL 9011 black, UV-resistant plastic optional
Specifications
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
  • Service life hours from 40000 to 70000 hours
