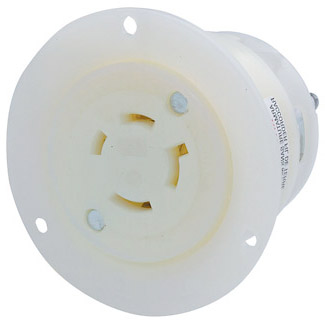

Product image for LEV 2466 WH OUTLET FLNG 4PO4WI L20-
Image thumbnail 0
Image thumbnail 1
Email

LEV 2466 WH OUTLET FLNG 4PO4WI L20-

Manufacturer: Leviton Mfg Co | Catalog # 2466 | Cooper Electric Part # 837708
$66.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 347/600 Volt 3PY, NEMA L20-20R, 4P, 4W, Flanged Outlet Locking Receptacle, Industrial Grade, Non-Grounding - WHITE

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
18-10 AWG
Connection Type
Back Wired
Contact Material
Brass,Solid Brass
Device Type
Locking Flanged Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Non-Grounding
Material
Nylon
Mounting Type
Flange
NEMA
WD-6
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
2.50 Dia x 1.78 H IN
Standard
ANSI C-73
TC Connection
Back Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire
Type
Locking
Voltage
347/600 Volt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477806371
Color
White
Environment
Dry
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477806371
Product UPC
07847780637

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • 10-year limited warranty
NEMA
  • L20-20R
