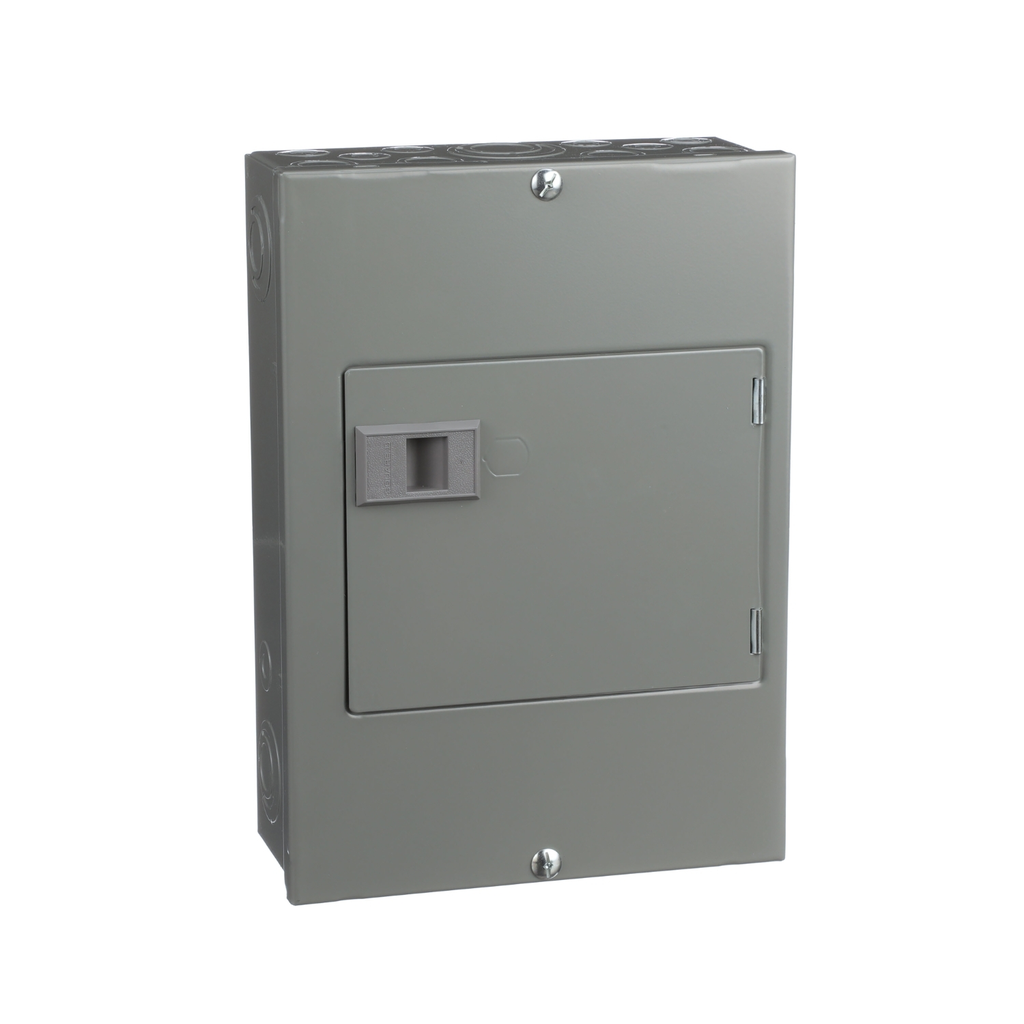

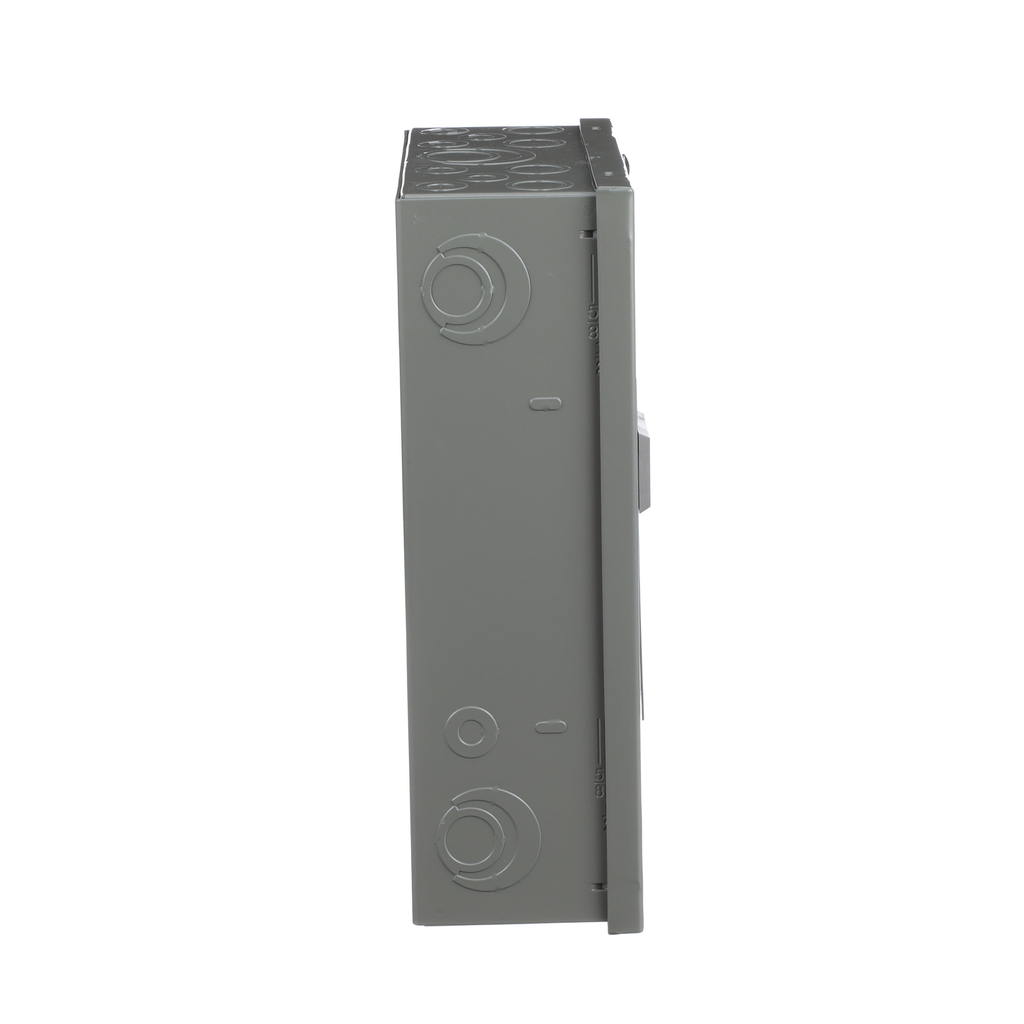

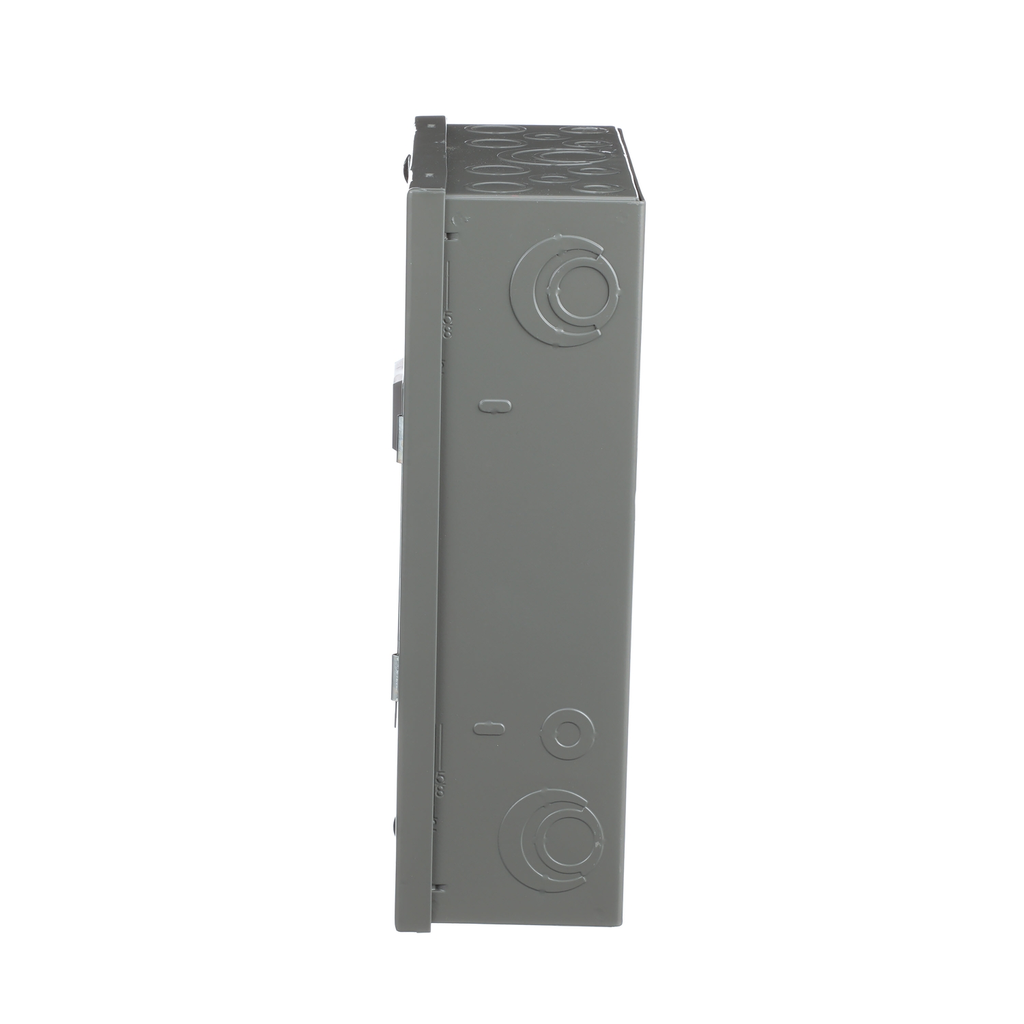

Square D QO48M60DSGP 120/240 VAC 60 Amp 1-Phase 3-Wire 8-Circuit NEMA 1 Load Center

Manufacturer: Square-D / Schneider | Catalog # QO48M60DSGP | Cooper Electric Part # 83749
$563.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
Square D® QO® Generator Panels connects directly to the main load center and provides four single pole spaces that will accommodate up to eight circuit dedicated for back-up power. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They have been certified to adhere to all the data sheet specifications by the Underwriters Laboratories (UL) and CSA.

Technical Information

Amperage
60 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Cable Size
AWG 8...AWG 2 ALUMINIUM/COPPER
Conductor Size
8-2 AWG
Cover Type
Surface Cover With Door
Current
60 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
10 kAIC
Line Rated Current
60 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
1
Number of Circuits
8
Number of Phases
1,3 Phase
Number of Spaces
4
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Surface Finish
Baked Enamel Gray
Type
Panel
Voltage
120/240 VAC
Wire Size
AWG 8...AWG 2 aluminium/copper

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901824343
Finish
Baked Enamel
GTiN
00785901824343
Product UPC
78590182434

Dimensions

Depth
97 mm
Height
319 mm
Warranty Length
18 mth
Width
226 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • PK7GTA
  • QO2175SB
  • QO260CP
  • PK8FL
  • QO2020
  • QO250PSPD
  • HEPD25
  • QO3020
  • HEPD50
  • QO1515
  • HEPD80
  • QO1520
  • HEPD25MKF
  • HEPD58MKF
