SQD NSYPIN128 Internal door for Pan

Manufacturer: Square-D / Schneider | Catalog # NSYPIN128 | Cooper Electric Part # 837260
*Call For Price*
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

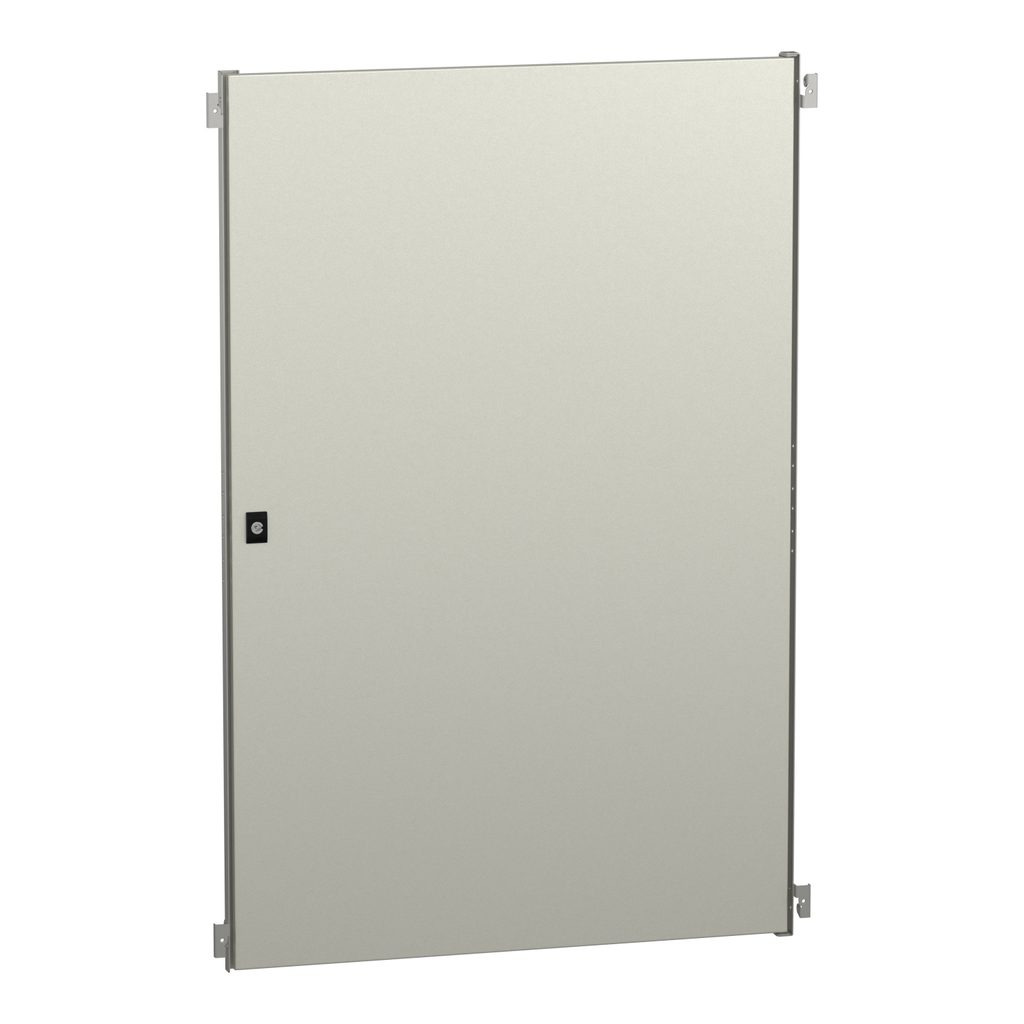

Internal door for Spacial WM steel enclosures (CRN, S3D, S3X). Enclosures H is1200 x W is800 mm. Multi-purpose application. Maximum load 30 kg/m.. 1 lock, 3 mm double bar insert. Step slides or front side mounting location. Adjustment is pitch 25 mm (on step slides). Sheet steel made. Grey RAL 7035. Door, 4 fixing brackets, 2 mounting uprights incl.
