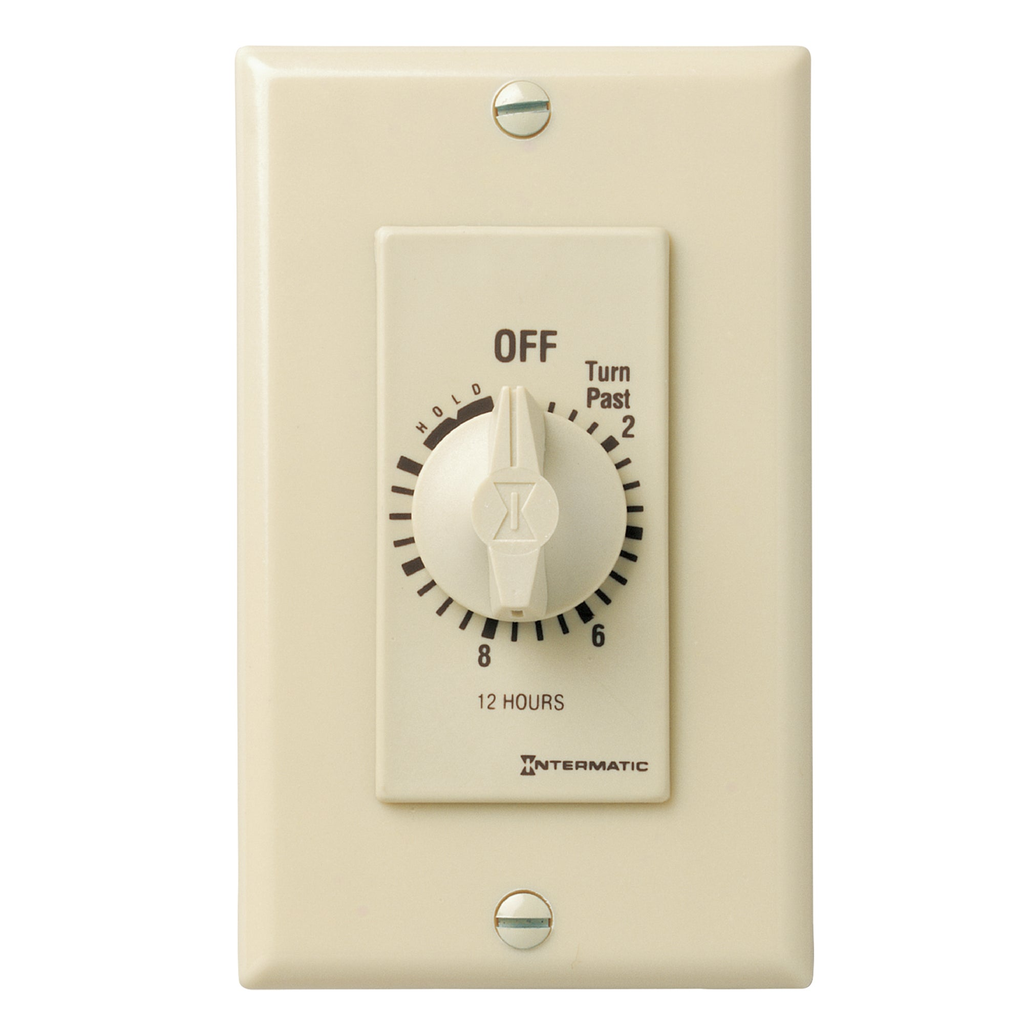

Product image for Intermatic FD12HH 12 Hour 125 to 277 VAC 60 Hz SPST Ivory Countdown Timer
Email

Intermatic FD12HH 12 Hour 125 to 277 VAC 60 Hz SPST Ivory Countdown Timer

Manufacturer: Intermatic, Inc | Catalog # FD12HH | Cooper Electric Part # 83580
$102.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control
Connection Type
Teeter Type
Contact Configuration
1 NO
Contact Rating
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Max Operating Temperature
120 degrees F
Min Operating Temperature
4 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
104 degrees F
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,UL Listed,UL Recognized
Switch Type
SPST
TC Connection
Teeter Type
Type
Decorator Spring Wound Auto-Off
Voltage
125-277 VAC

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275185708
Color
Ivory
GTiN
00078275185708
Product UPC
07827518570
Weight
0.299 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Tunisia
Features
  • 12-Hour timer with hold
  • SPST (Single-Pole Single-Throw)
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Breaks circuit at end of timing cycle
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required
