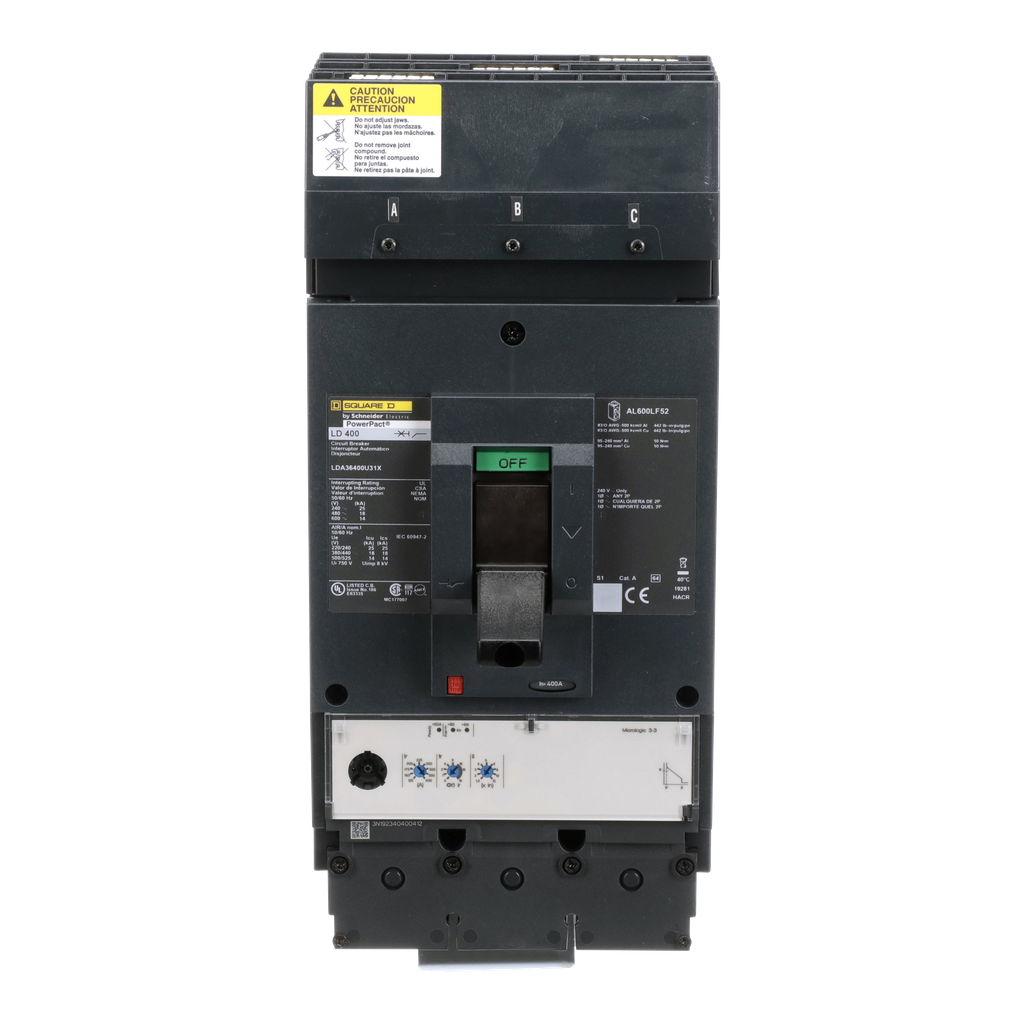

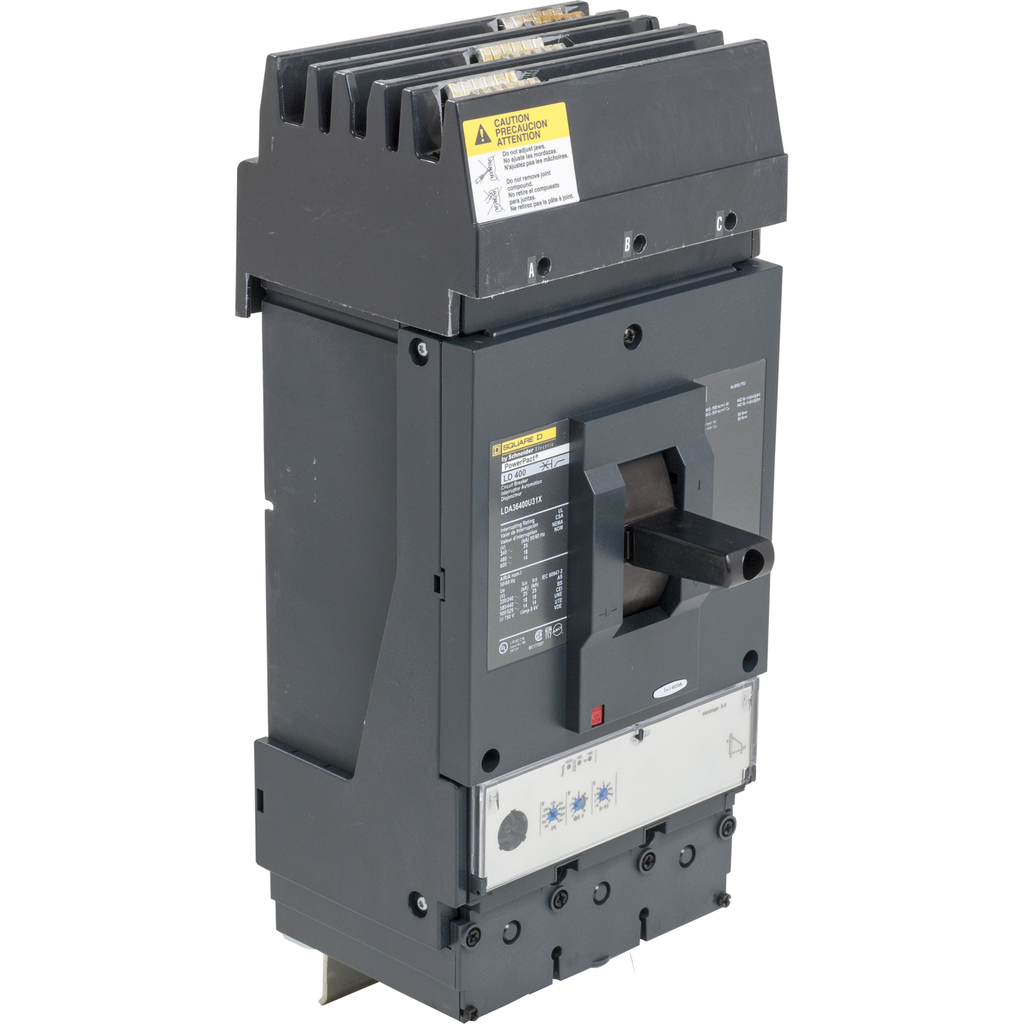

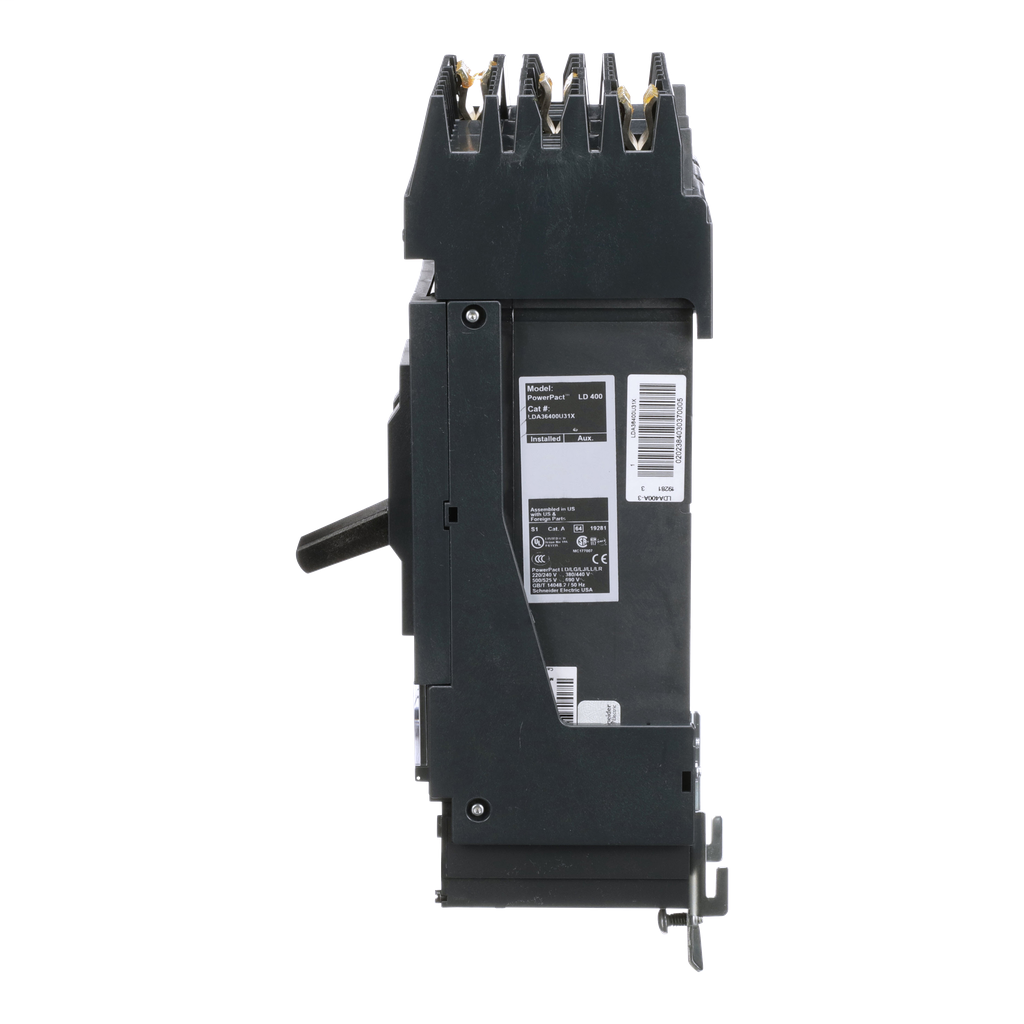

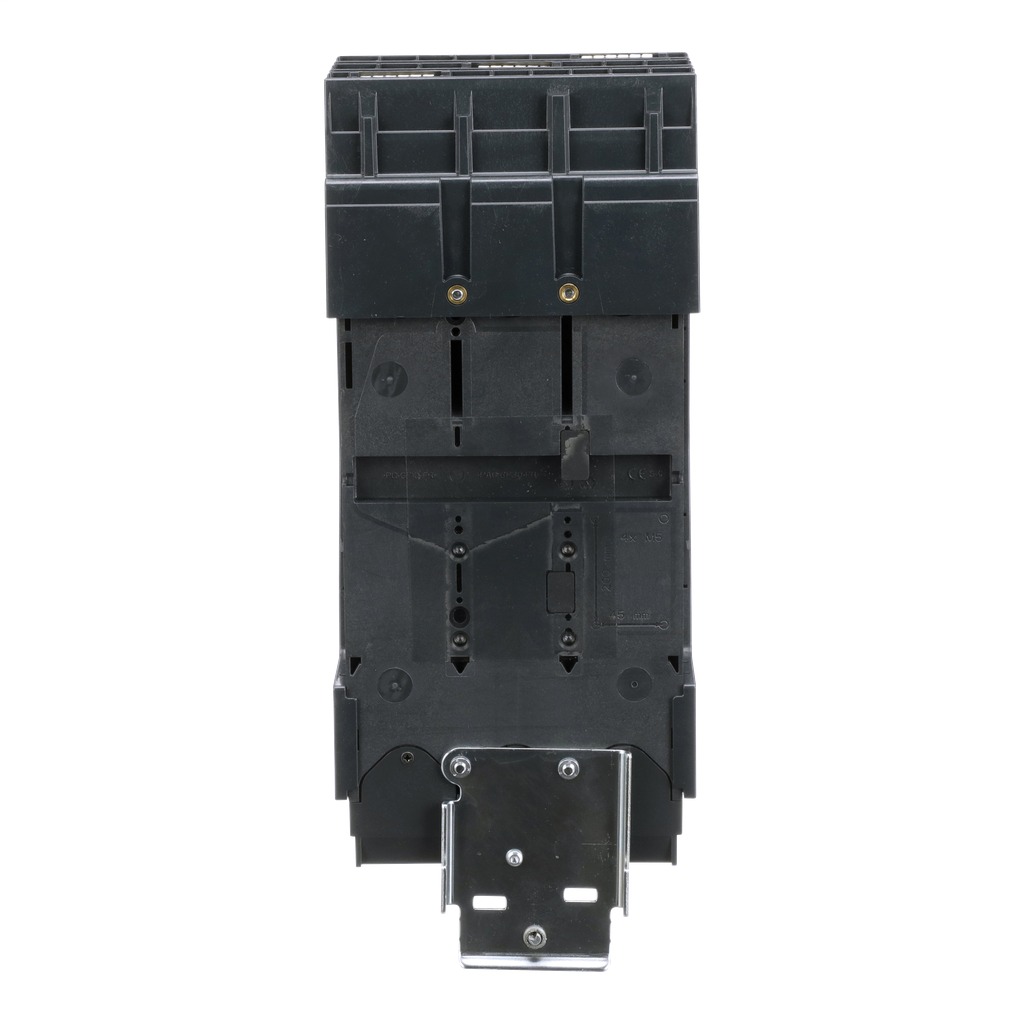

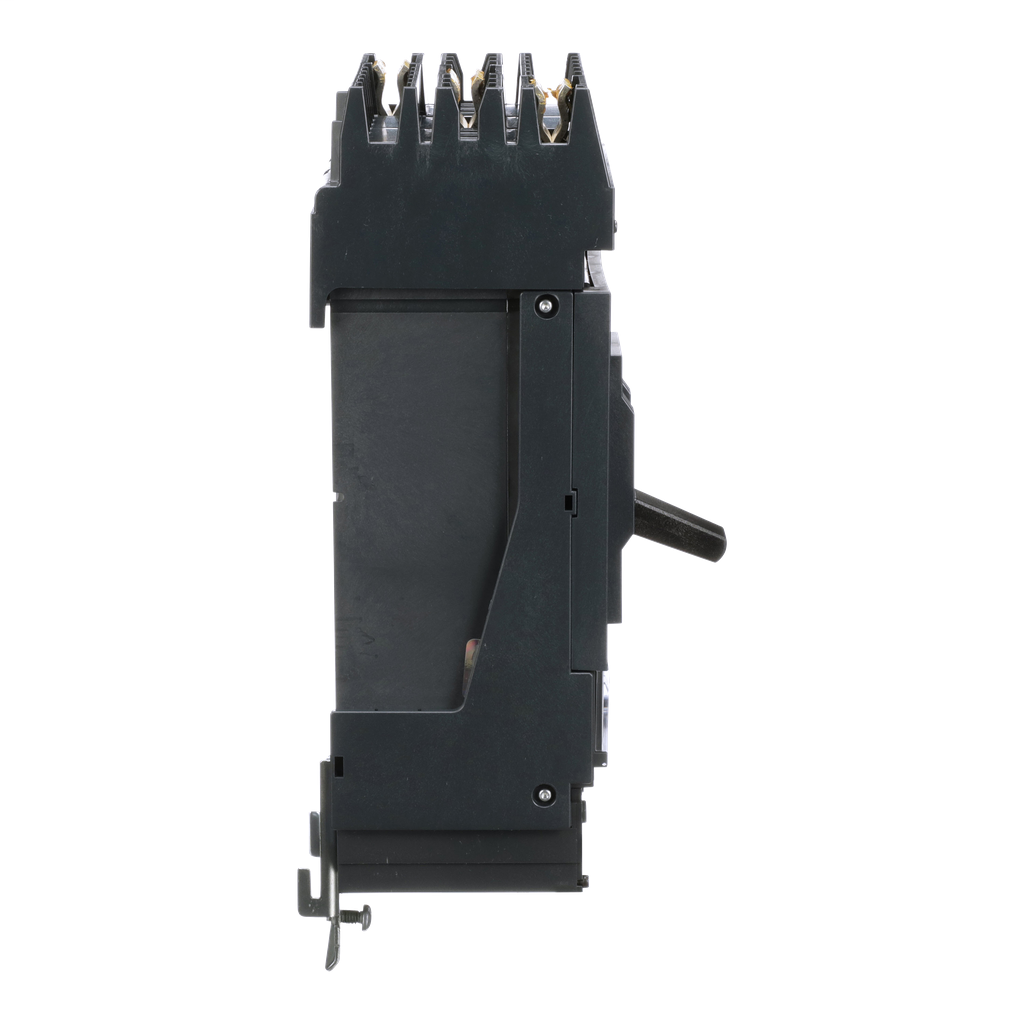

Square D LDA36400U31X 600 Volt 400 Amp Molded Case Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # LDA36400U31X | Cooper Electric Part # 832521
$2,810.39/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
The PowerPact H, J, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only.

Technical Information

Amperage
400 Amp
Applications
I-LINE PANELOBARDS OR SWITCHBOARDS
Control Type
Toggle
Frame
L- FRAME
Interrupt Rating
14, 18, 25 kAIC
Line Rated Current
400 A
Mounting Type
I-Line
Number of Poles
3 Pole
Operating Temperature
-13degrees F AND 158degrees F (-25 degrees C AND +70 degrees C)
Range
PowerPact
TC Connection
I-LINE CONNECTION LINELUGS LOAD
Trip Range
400 A
Trip Type
ELECTRONIC STANDARD MICROLOGIC 3.3 LI
Type
MOLDED CASE CIRCUIT BREAKER
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
POWERPACT

General Product Info

12-Digit UPC
785901298632
Color
Black
Environmental Conditions
95 AT 55 DEG C RELATIVE HUMIDITY
GTiN
00785901298632
Product UPC
78590129863

Dimensions

Depth
6.61 Inch
Height
14.7 Inch
Length
6.61 Inch
Warranty Length
18 mth
Width
5.94 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: DIDP and DINP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CCC,CE,CSA,NMX,UL Listed
Country of Origin
USA
