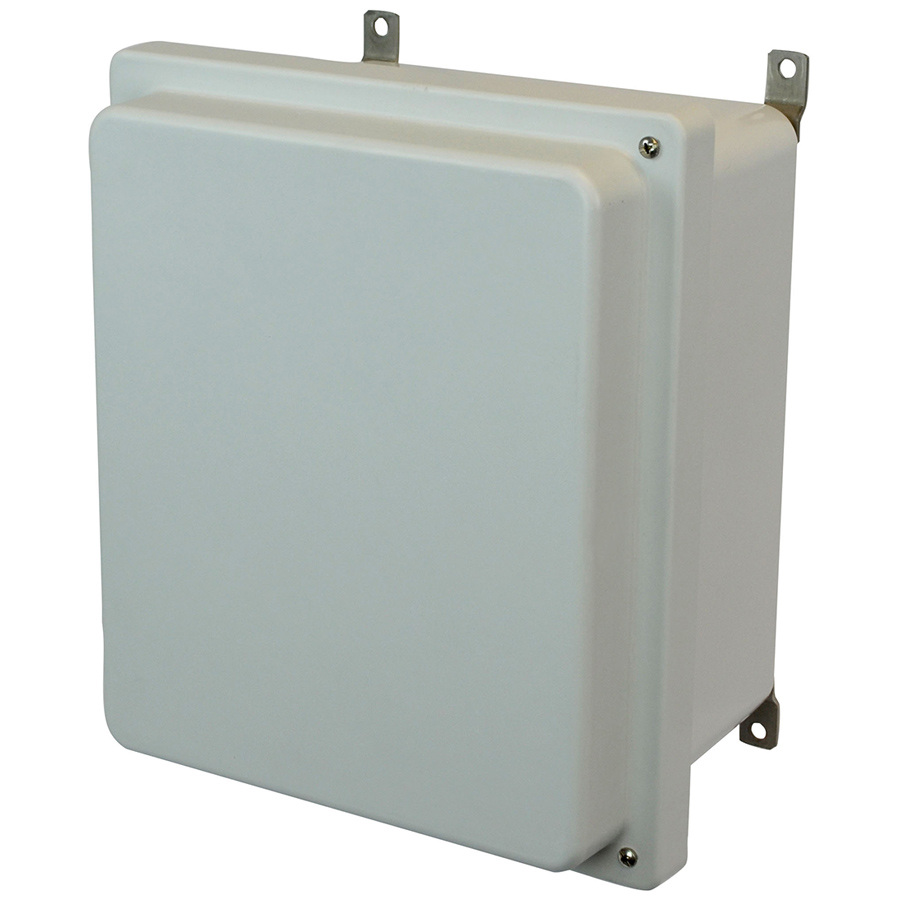

Product image for Allied Moulded Products AM1426RH Wall Mount Enclosure Assembly
Email

Allied Moulded Products AM1426RH Wall Mount Enclosure Assembly

Manufacturer: Allied Moulded Products | Catalog # AM1426RH | Cooper Electric Part # 831647
$110.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Safety Data Sheet
Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Raised, hinged Type: screw down, overlapping and opaque cover design with FIP formed-in-place polyurethane gasket system Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=14.13", B=12.26", C=6.13" plus 1.75" raised cover, usable depth=7.21" Color:RAL 7035 - Gray Mounting:Stainless steel feet fastened to back side brass inserts

Technical Information

Applications
Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Insulation Type
Non-Conductive,Non-Metallic
Material
Fiberglass
Mounting Type
Stainless Steel Feet Fastened To Back Side Brass Inserts
Size
A=14.13", B=12.26", C=6.13" plus 1.75" raised cover, usable depth=7.21"
Standard
UL 508A - Industrial Control Panels
Type
NEMA 4X Type Nonmetallic Enclosure

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
AM JIC

General Product Info

12-Digit UPC
085339914570
Color
Light Gray
Construction
Compression molded
GTiN
00085339914570
Product UPC
08533991457

Dimensions

Depth
6.01 Inch
Height
14.14 Inch
Width
12.26 in

Certifications and Compliance

Buy American Compliant
Y
  • PG142
  • PF142
  • AMU1426H
  • AMPOLEMNT12
  • HFP142
  • AM1426RHW
  • AMP1426H
  • AMHS075
  • PLA142
  • PL142
Additional Materials
  • 316 stainless steel mounting brackets
  • Polyurethane (FIP) Formed-In-Place gasket system
  • Brass inserts
  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • Plated carbon steel internal hardware
  • CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
  • UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175
  • Complies with:
  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive
  • Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.
  • Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
