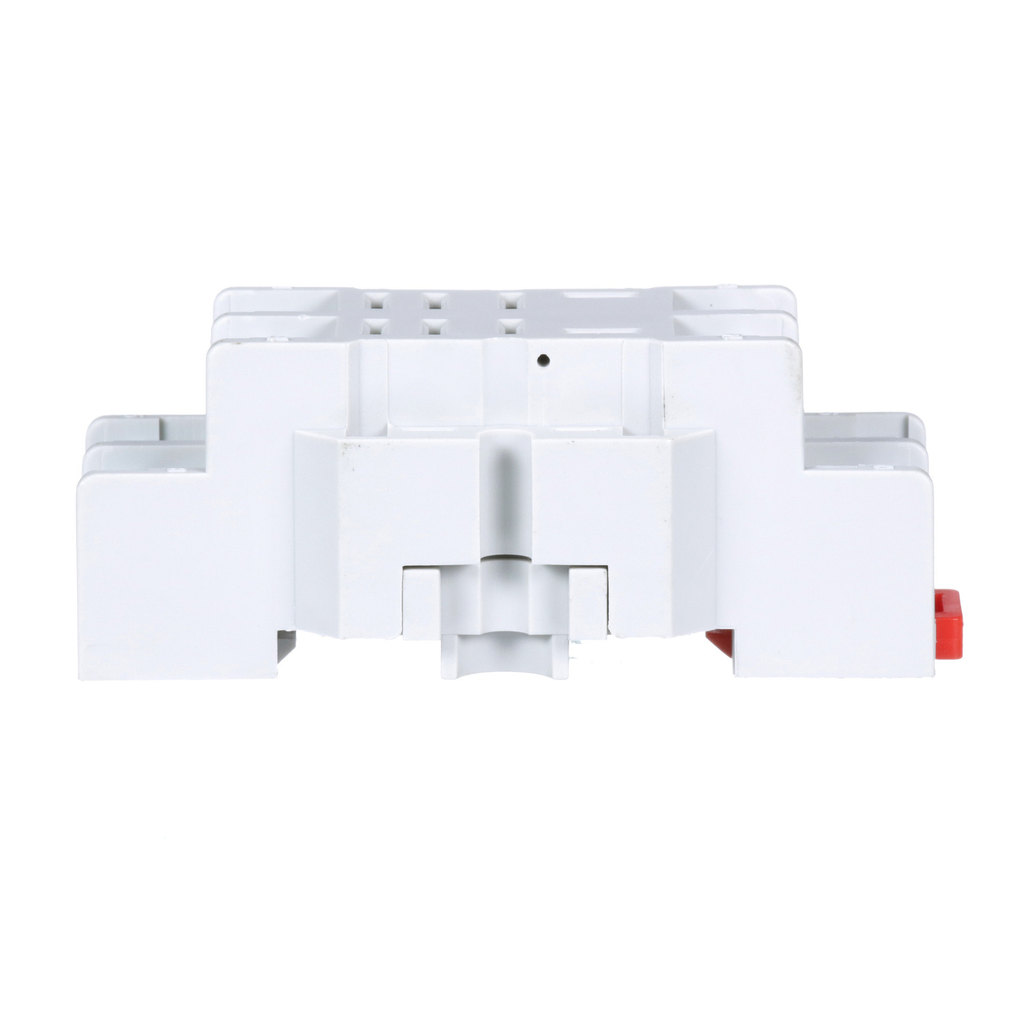

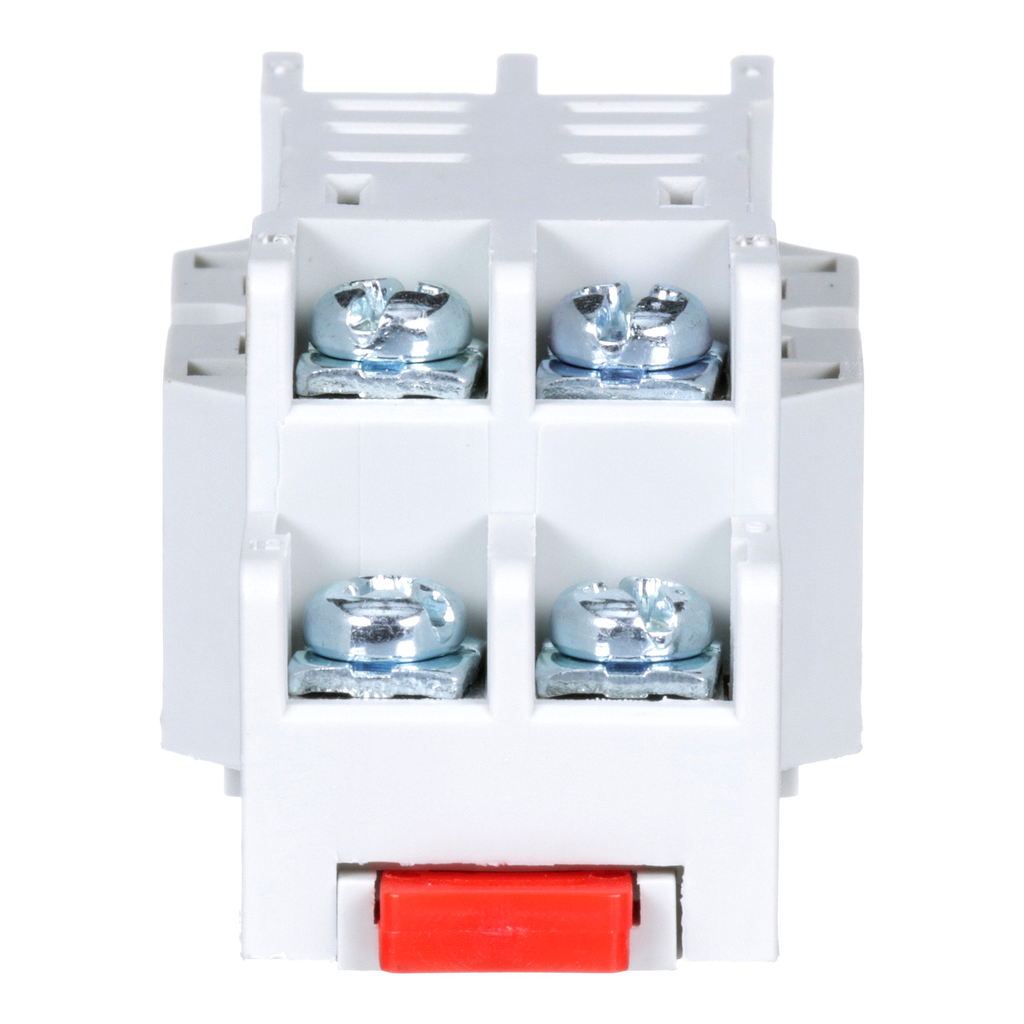

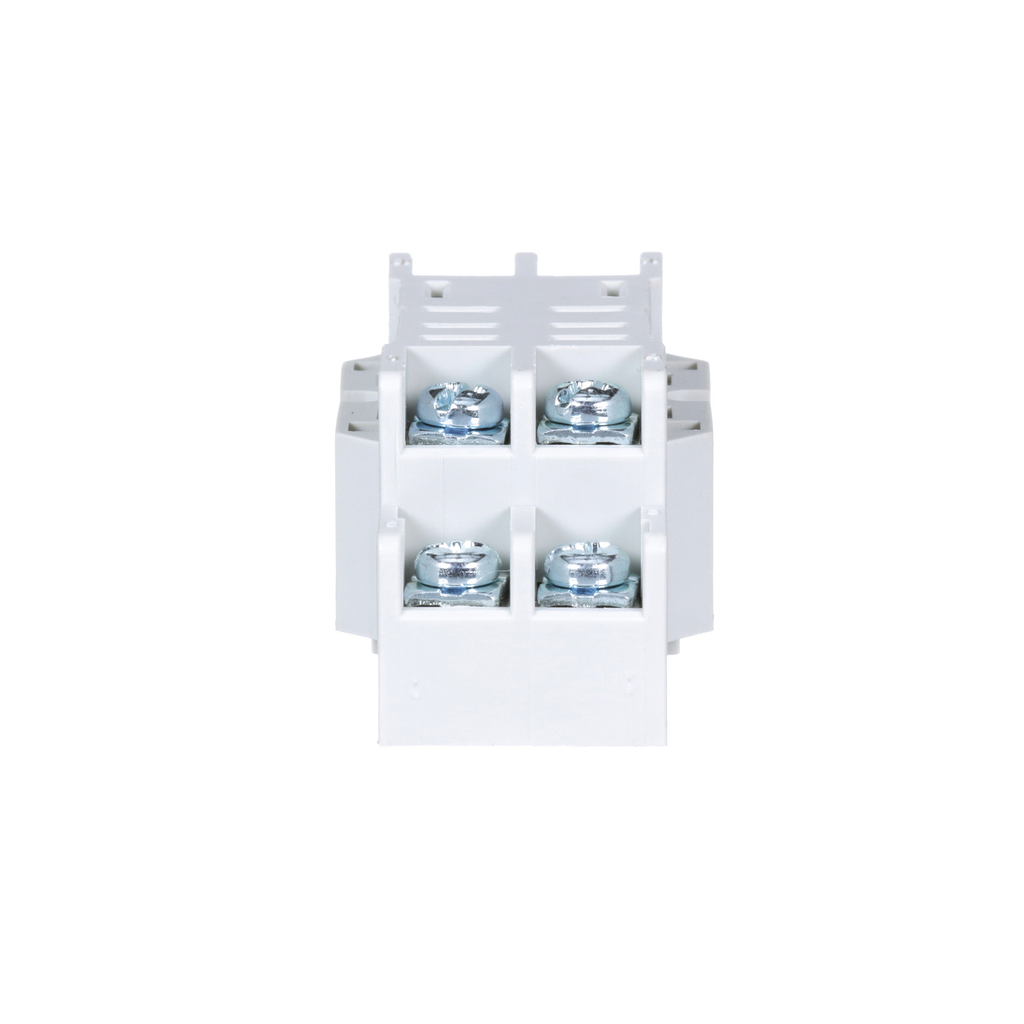

Square D 8501NR42 300 VAC 10 Amp Din Rail/Direct Panel Mount Double Tier Relay Socket

Manufacturer: Square-D / Schneider | Catalog # 8501NR42 | Cooper Electric Part # 83013
$41.55 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS42 or 8501RSD42 relay will plug into this relay socket which is designed for 8 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Technical Information

Amperage
10@300V Amp
Line Rated Current
10 A
Mounting Type
DIN Rail,Panel
Number of Pins
8
Type
Relay Socket

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097846
GTiN
00785901097846
Product UPC
78590109784

Dimensions

Depth
0.99 in
Height
2.72 in
Warranty Length
18 mth
Width
1.18 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Recognized
Country of Origin
China
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=E0703701-01&p_File_name=E0703701-01.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=E0703701-01&p_File_name=E0703701-01.dxf
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0004023099
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.0784413737
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.3 kg CO2 eq.
  • 0.3321117089
Accessories
  • 8501NH42
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Line Rated Current
  • 10 A 300 V AC
Accessory Products
  • 8501NH42
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Carbon Footprint Of The Distribution Phase A4
  • 0.0065245503
  • 0 kg CO2 eq.
