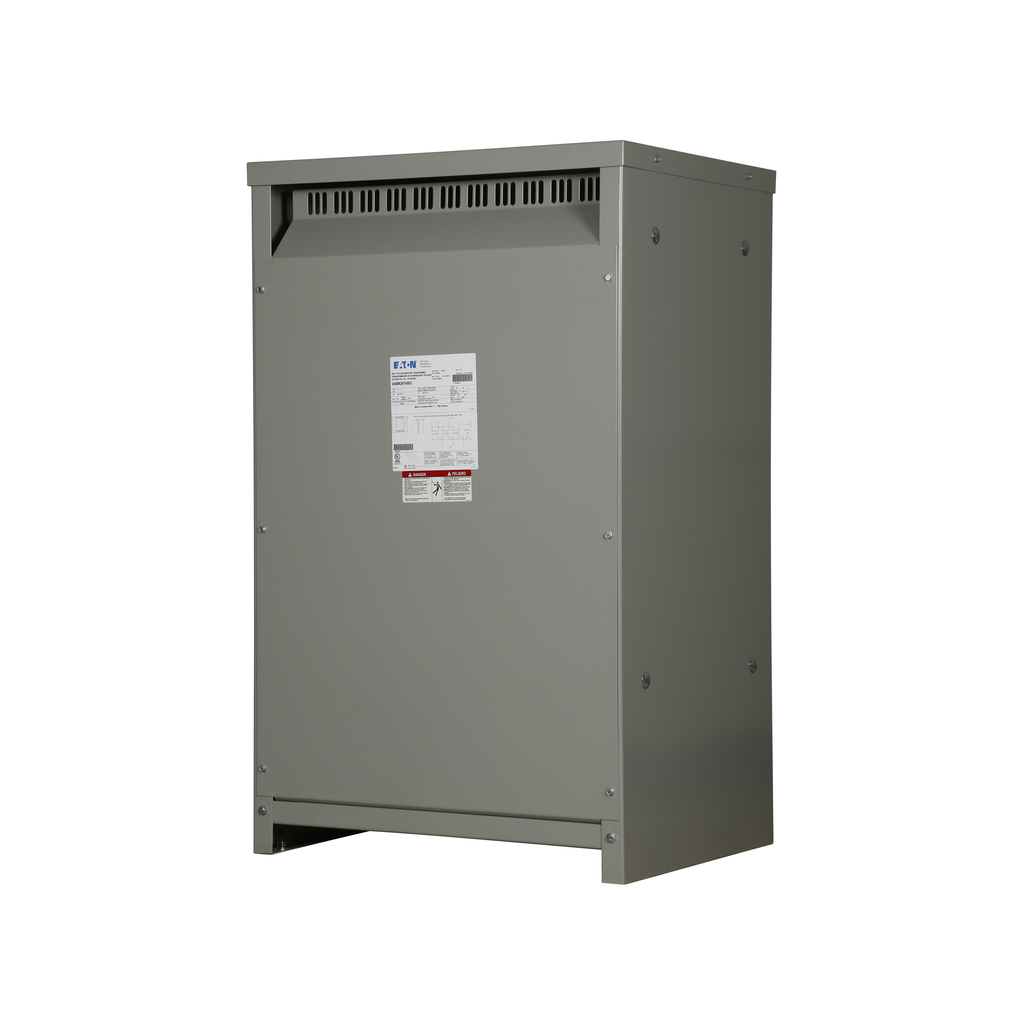

Image thumbnail 3

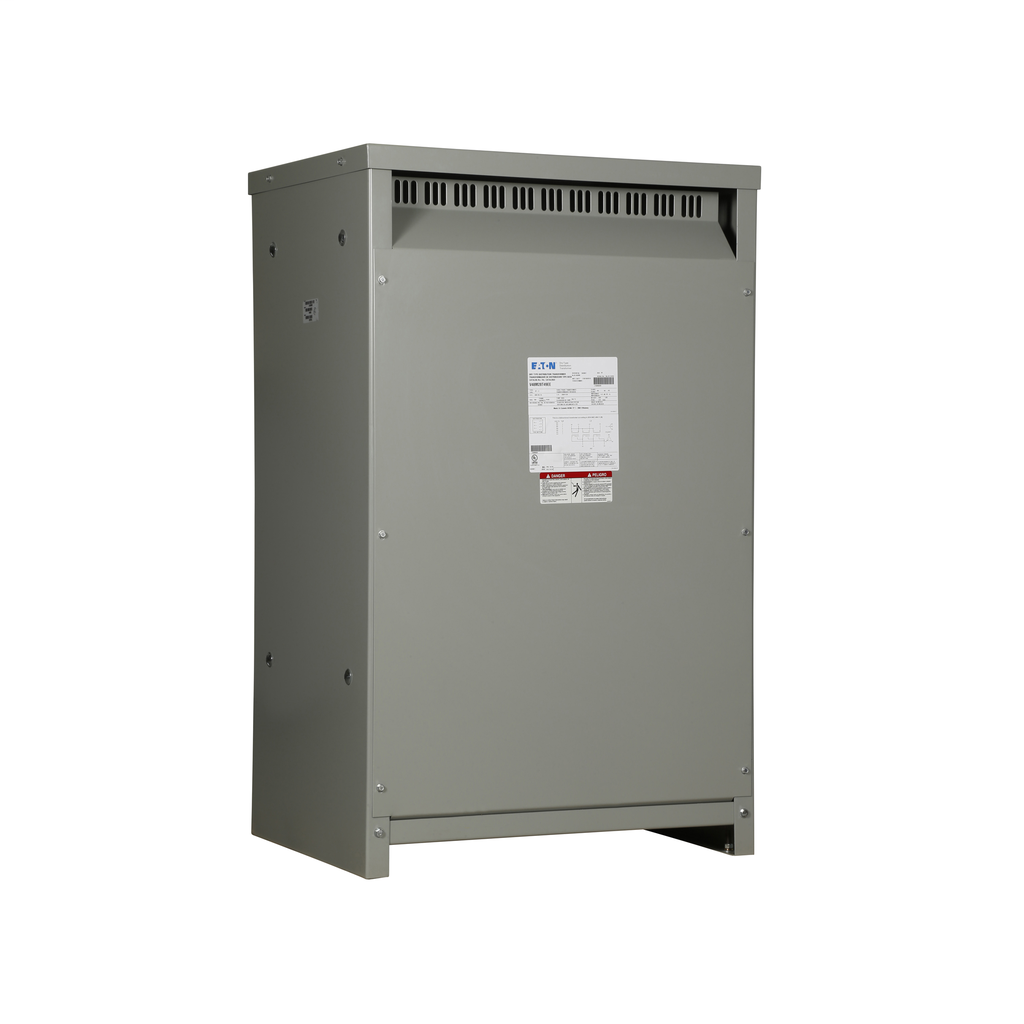

Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Email

Cutler-Hammer V48M28T49EE General purpose ventilated transformer, DT-3 (3-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 208Y/120V, 150?C rise w/ 200?C insulation systeam, 150 kVA, EE

Manufacturer: Cutler-Hammer / Eaton | Catalog # V48M28T49EE | Cooper Electric Part # 829643
$20,164.56/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Eaton General purpose ventilated transformer, DT-3 (3-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 208Y/120V, 150.C rise w/ 200.C insulation systeam, 150 kVA, EE

Technical Information

Applications
Commercial / Institutional Buildings / Structures - Safety and Security Systems
Coil Material
Aluminum
Frame
916A
Frequency
60 Hz
Number of Phases
3 Phase
Primary Voltage
480 V
Secondary Voltage
120 V
Standard
NEMA TP-1 Compliant,UL
Tap Size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Temperature Rating
150 degrees C
Type
Distribution,Dry Type
Voltage
480 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786680019388
GTiN
00786680019388
Product UPC
78668001938
Weight
913 lb

Dimensions

Height
48.56 Inch
Length
23.42 Inch
Width
28.22 in
