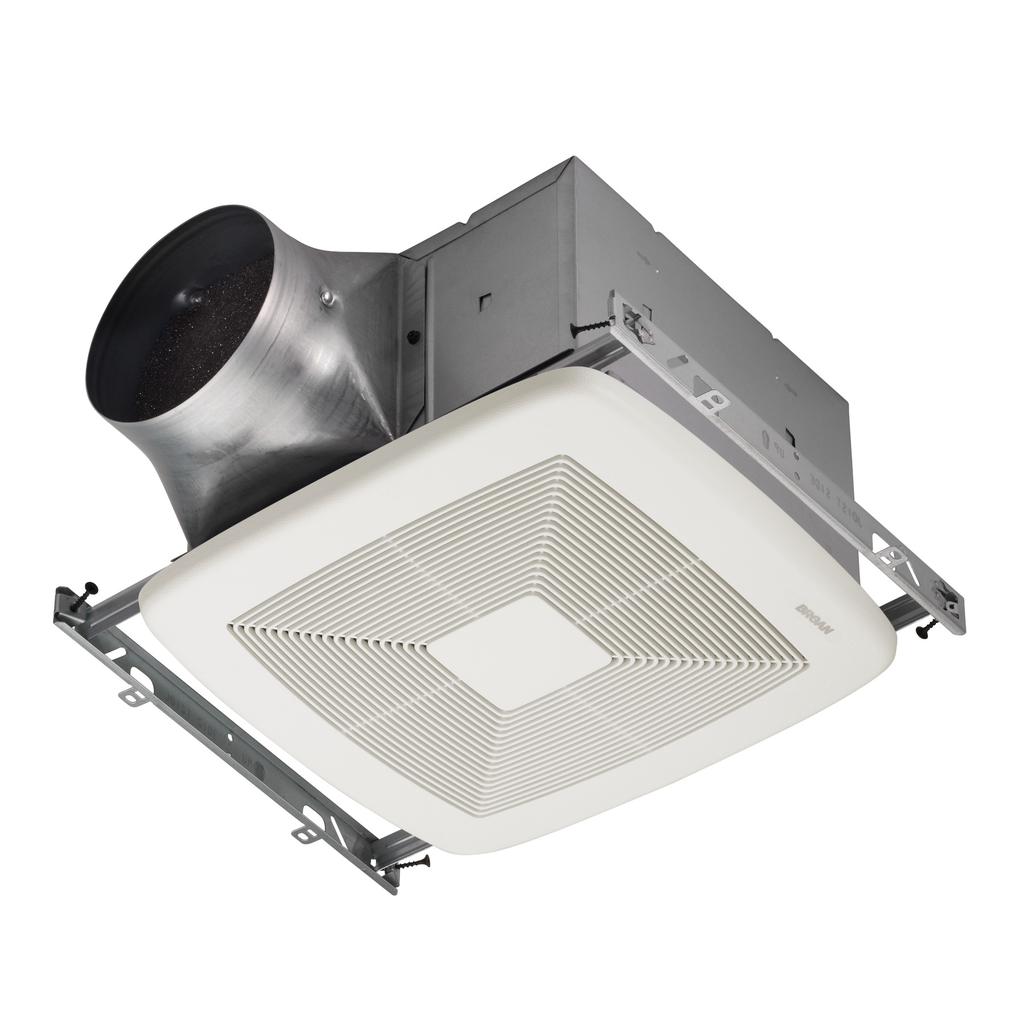

Broan ZB80 30 CFM to 80 CFM Energy Star Qualified Fan

Manufacturer: Nutone | Catalog # ZB80 | Cooper Electric Part # 825843
$294.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The Broan® ZB80 ULTRA GREEN™ Multi-Speed Ceiling Bath Fan gives a premium performance for today's demanding home ventilation requirements. 80 CFM quickly reduce humidity and manage moisture in bathrooms up to 75 sq. ft. ULTRASilent™ technology operates at the lowest sound rating achievable, less than 0.3 sones. The ULTRASmart DC motor and control technology provides energy efficiency almost 10 times greater than ENERGY STAR® requirements. With ULTRAQuick™ installation technology the ZB80 provides the fastest, easiest, and most universal installation in remodel, retrofit, and new construction. The Broan® ZB80 has been specifically designed to meet both spot and continuous ventilation needs for various building codes and green building standards.

Technical Information

Airflow Rate
80 CFM
Amperage
0.3 Amp
Applications
For Bathrooms
Bulb Included
No
Duct Shape
Round
Duct Size
4 in
Motor Type
DC Motor
Mounting Type
Ceiling
Nightlight
No
RPM
985 rpm
Sones
0.3 Sone
Standard
Energy Star Certified,HVI 2100 Certified,UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit (Ceiling Mount Only)
Type
Multi-Speed, Rectangular Grille
Voltage
120 Volt
Wattage
5.8 Watt

Manufacturer Information

Brand
Broan-NuTone
Sub Brand
UltraGreen

General Product Info

12-Digit UPC
026715201099
Color
White
Grille Material
Polymeric
GTiN
00026715201099
Housing Material
Galvanized
Product UPC
02671520109
Weight
11 lb

Dimensions

Grille Length
13 in
Grille Width
13-3/4 in
Height
7-5/8 Inch
Housing Height
7-5/8 in
Housing Length
10-1/2 in
Housing Width
11-3/8 in
Length
10-1/2 Inch
Warranty Length
3 yr
Width
13.75 in

Certifications and Compliance

Country of Origin
China
Features
  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • <0.3 Sones for Ultra quiet performance, you might not notice it's on
  • ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
  • Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fasters, easiest, most universal installation
  • Mounting Frame fits any type of joist, I-Joist or truss construction for a \"no guesswork\" installation to make the work fast and easy
  • ENERGY STAR® certified ventilation fan
  • UL listed and HVI-2100 Certified for safety
  • UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
  • Title 24 compliant
  • Powerful enough for rooms up to 75 sq. ft.

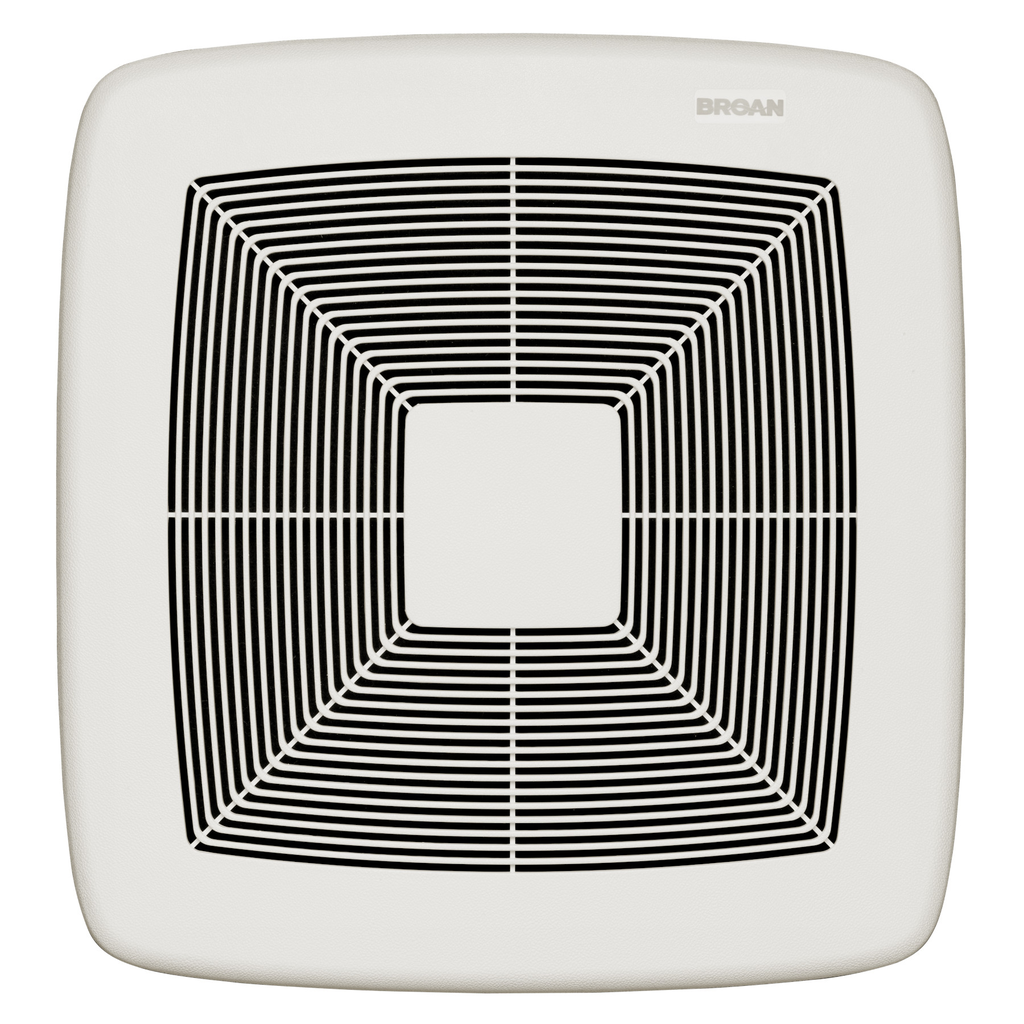

  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Brushless DC electronically controlled digital motor is 3Xmore efficient than standard AC powered ventilation
  • Very quiet, energy efficient , multi-speed exhaust fan
  • Powerful enough for rooms (including bathroom) up to 75 sq. ft.
  • Easy to install and/or replace existing product for DIY'ers
Includes
  • 6\" to 4 \" duct reducer
