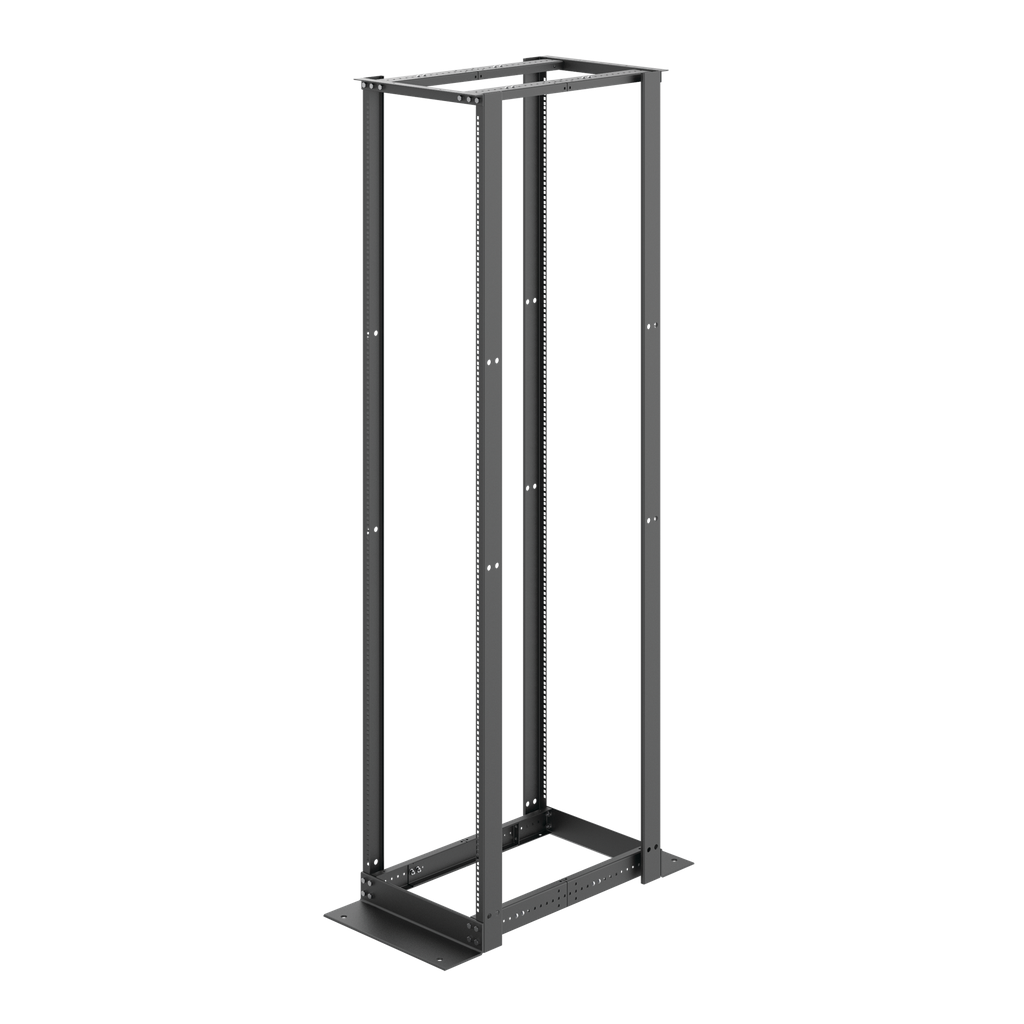

Product image for Hoffman E4DRS19FM51U 4-Post Open Frame Rack, Black, Aluminum
Email

Hoffman E4DRS19FM51U 4-Post Open Frame Rack, Black, Aluminum

Manufacturer: Hoffman | Catalog # E4DRS19FM51U | Cooper Electric Part # 825613
$1,020.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
4-Post Open Frame Racks combine the mounting security of a cabinet with the accessibility of a rack. Used in communication data center and telecommunication room applications, these adjustable-depth racks support deeper, heavier network equipment and can be ganged with standard 2-post or other 4-post racks to expand existing systems.

Technical Information

Applications
Networking, Storage and Data Center
Color Coding
RAL 9005
Material
Steel
Rack Unit
51
Standard
CUL Listed Per CSA C22.2 No. 182.4; File No. E230874,EIA 310-D,UL 2416 Listed; File No. E230874
Type
2-Post

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510129545
Color
RAL 9005 Black
Finish
Powder Coated
GTiN
00783510129545
Product UPC
78351012954
Weight
85 lb

Dimensions

Height
96 Inch
Length
97 Inch
Thickness
2.66 mm
Width
20.25 in
Features
  • Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
  • EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
  • Compatible with 19-in. rack accessories
  • Available with nominal frame height of 6, 7 and 8 feet
  • RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
  • Floor mounting holes predrilled at .750-inch diameter
  • 12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
  • For square hole model, order screws and cage nuts separately
  • Can be ganged with both 2- and 4-Post Open Frame racks
  • Includes complete assembly instructions
  • Shipped unassembled for convenient transport to job site
  • Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
  • Uprights on the square-hole model are made from 12 gauge steel
  • Top and bottom angles made of extruded aluminum (6063-T6 alloy)
