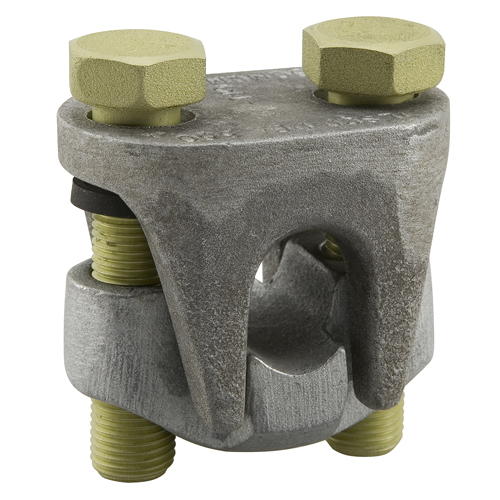

ILSCO DBA-250 AL MEC (M)250-1/0 (T)

Manufacturer: Ilsco | Catalog # DBA-250 | Cooper Electric Part # 825027
$89.07/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Two-Bolt Connector, Mechanical connection, Dual Rated, Aluminum material, Wax plated connector,Copper Primary Conductor 250 kcmil - 1/0 Str, Aluminum Primary Conductor 250 kcmil - 1/0 Str and, Copper/Aluminum Secondary Conductor 10 Sol and 250 kcmil - 10 Str, 2 conductors, 1 ports/wireways, Drive Type Main 5/8 External Hex, primary color Silver, 1 poles,

Technical Information

Applications
Two-Bolt Connector
Material
Aluminum
Number of Conductors
2
TC Connection
Mechanical
Temperature Rating
NA degrees C
Type
DBA:2 BOLT AL/CU S/B

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669212389
Color
Silver
Finish
Wax
GTiN
00783669212389
Product UPC
78366921238
