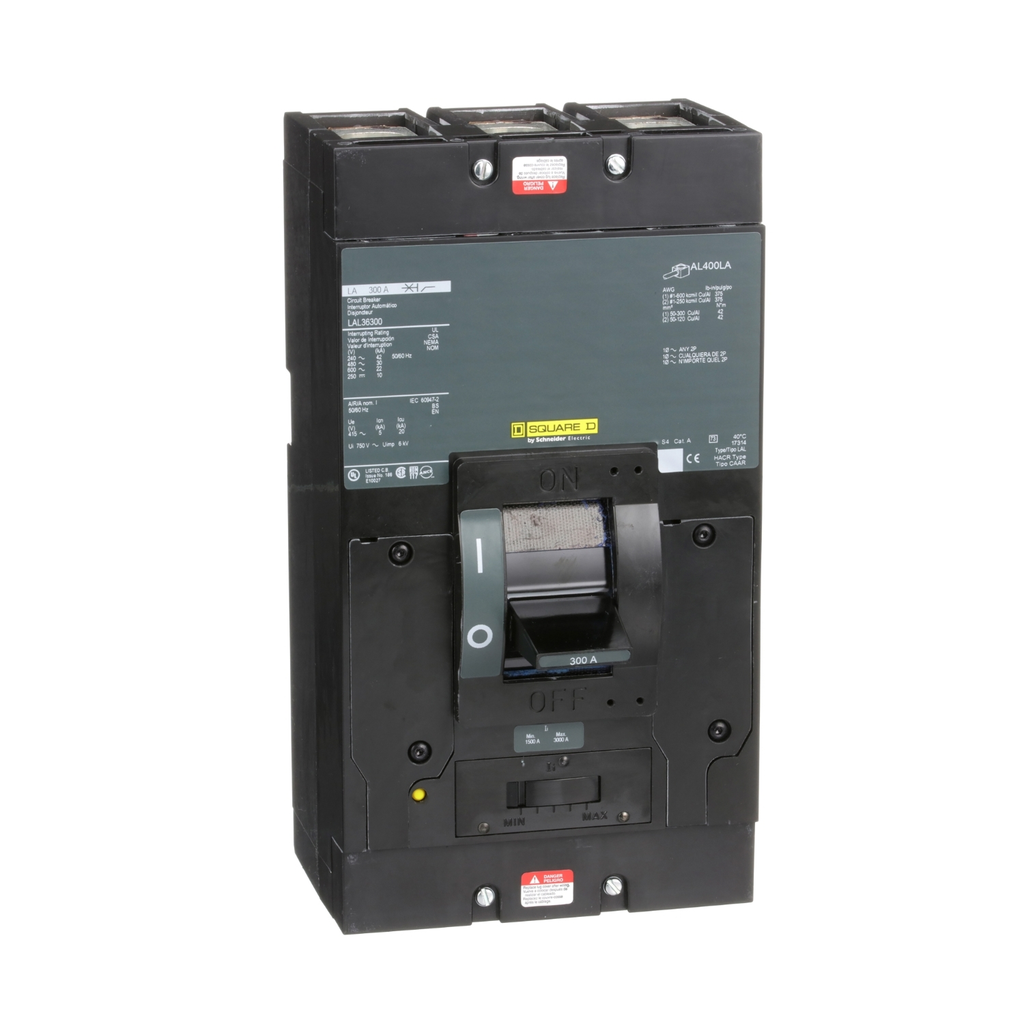

Square D LAL36300 600 Volt 100 Amp Molded Case Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # LAL36300 | Cooper Electric Part # 82419
$4,619.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
2 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 300A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.

Technical Information

Amperage
300 Amp
Current
300 Amp
Frame
L-FRAME
Interrupt Rating
10, 22, 30, 42 kAIC
Line Rated Current
300 A
Mounting Type
Unit Mount
Number of Poles
3 Pole
TC Connection
AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE
Terminal Type
AL400LA
Trip Point
3000-3000 A
Trip Range
1500 A,300 A,3000 A
Trip Type
THERMAL MAGNETIC
Type
Circuit breaker
Voltage
250 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901426783
GTiN
00785901426783
Product UPC
78590142678

Dimensions

Depth
5.84 Inch
Height
11 Inch
Length
5.84 Inch
Warranty Length
18 mth
Width
6 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Certifications
CSA,IEC,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Carbon Footprint Of The Installation Phase A5
  • 1.8967904693791804
  • 2 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 10 kg CO2 eq.
  • 10.302971150240523
Electrical Connection
  • lugs, load
  • lugs, line
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 44 kg CO2 eq.
  • 43.82880551360121
Accessories
  • HPALM
  • AL400LA
  • AL400LH7
  • CU400LA
  • CVC400LA3
  • PDC6LA20
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 1 102 kg CO2 eq.
  • 1102.0746377830335
Accessory Products
  • HPALM
  • AL400LA
  • AL400LH7
  • CU400LA
  • CVC400LA3
  • PDC6LA20
Persona Type Ids
  • LC
  • OM
  • OM8
  • PB
Carbon Footprint Of The Distribution Phase A4
  • 1.966271580566898
  • 2 kg CO2 eq.
Tightening Torque
  • 13-13 N.m 42-304 mm² (AWG 1...600 kcmil)
  • 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
