Square D 3106340944 208 VAC 60 Amp 60 Hz 311 VA Magnetic Contactor/Starter AC Coil

Manufacturer: Square-D / Schneider | Catalog # 3106340944 | Cooper Electric Part # 82380
$140.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page

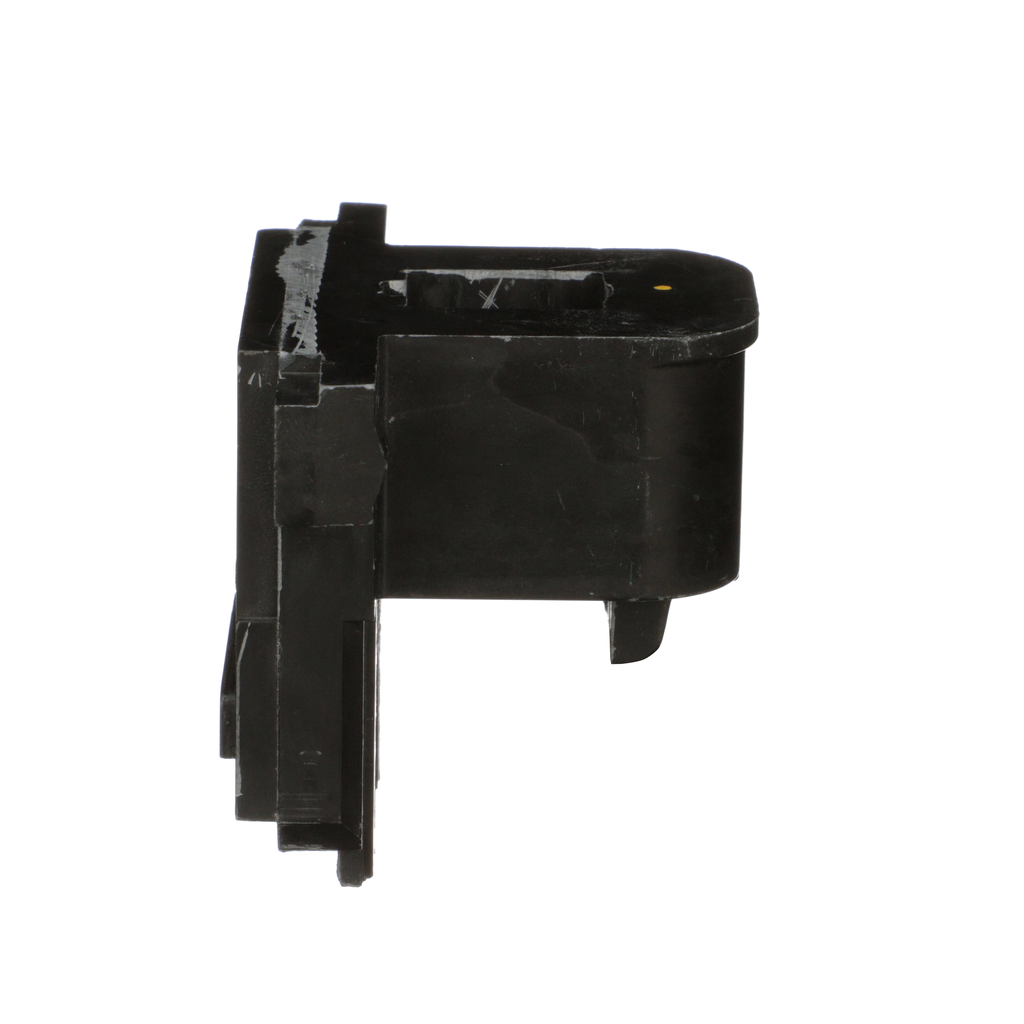

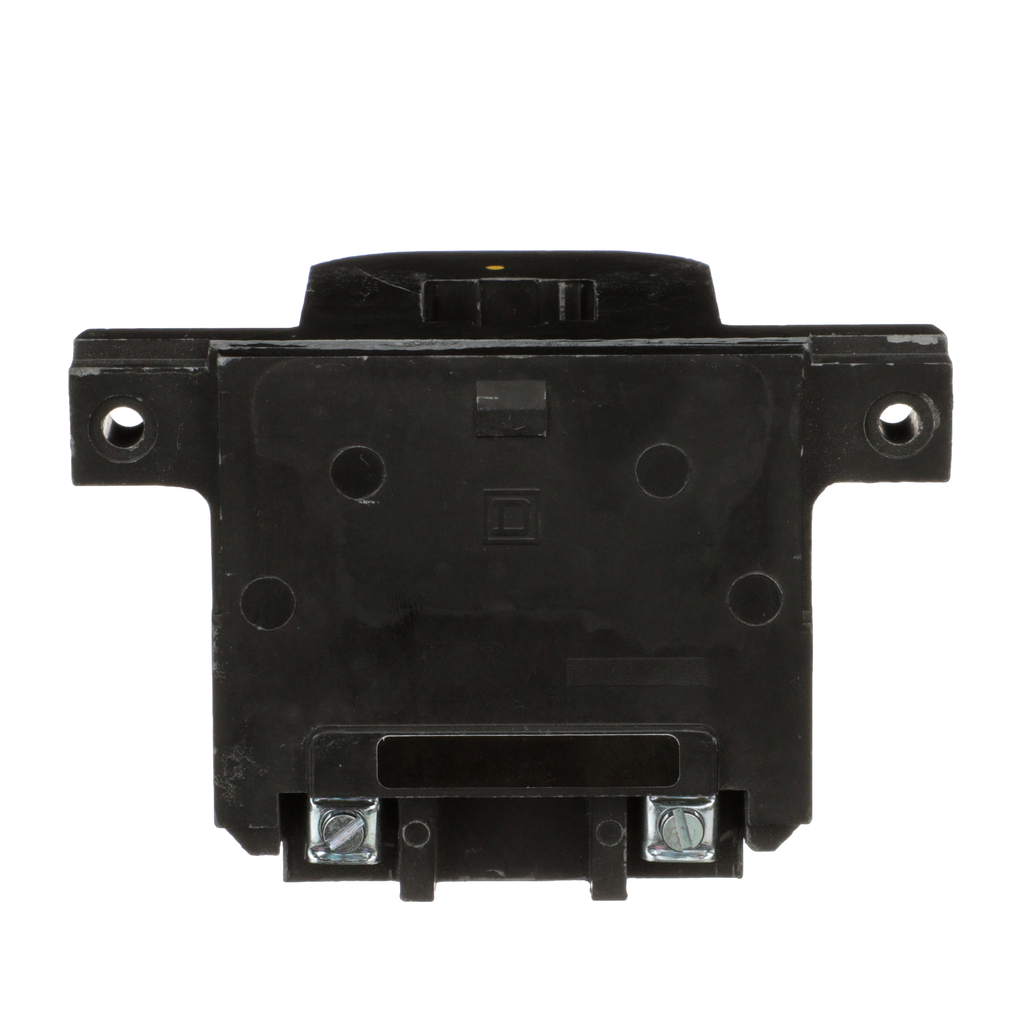

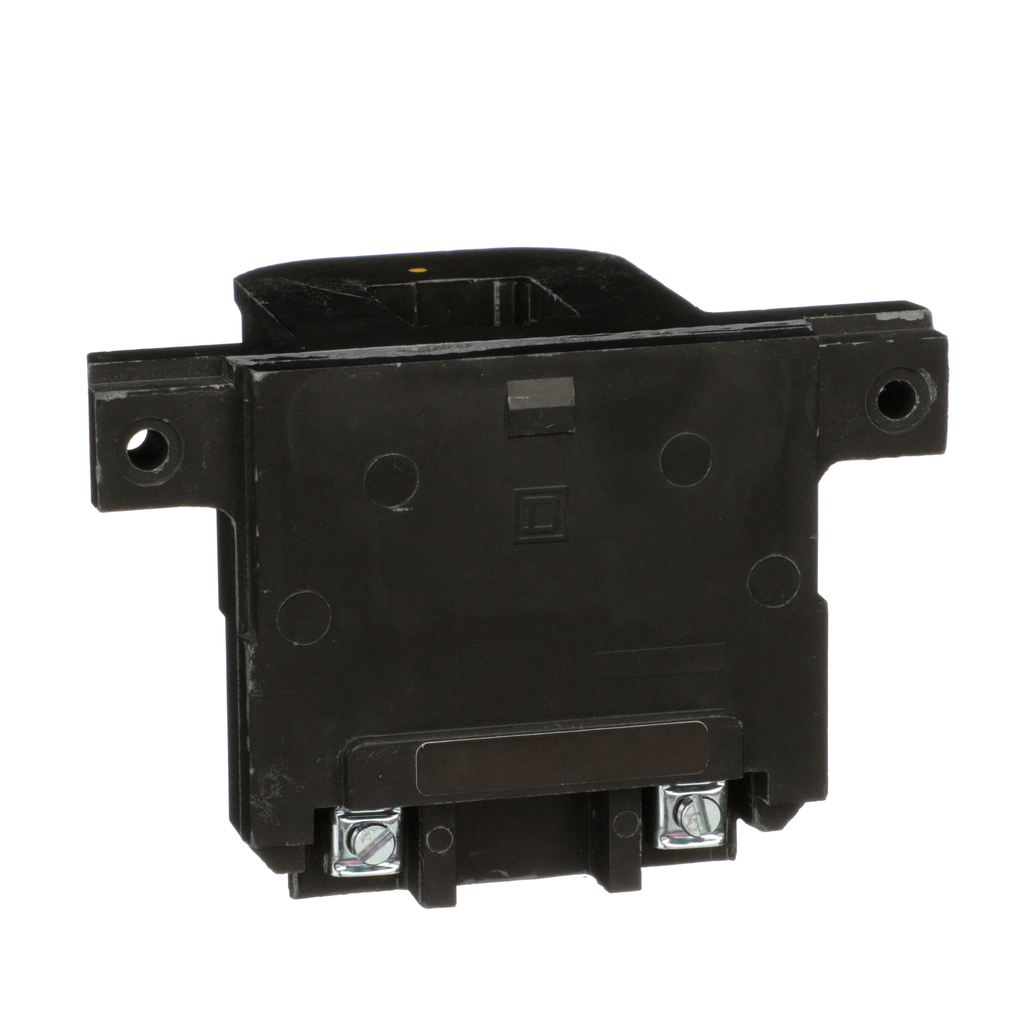

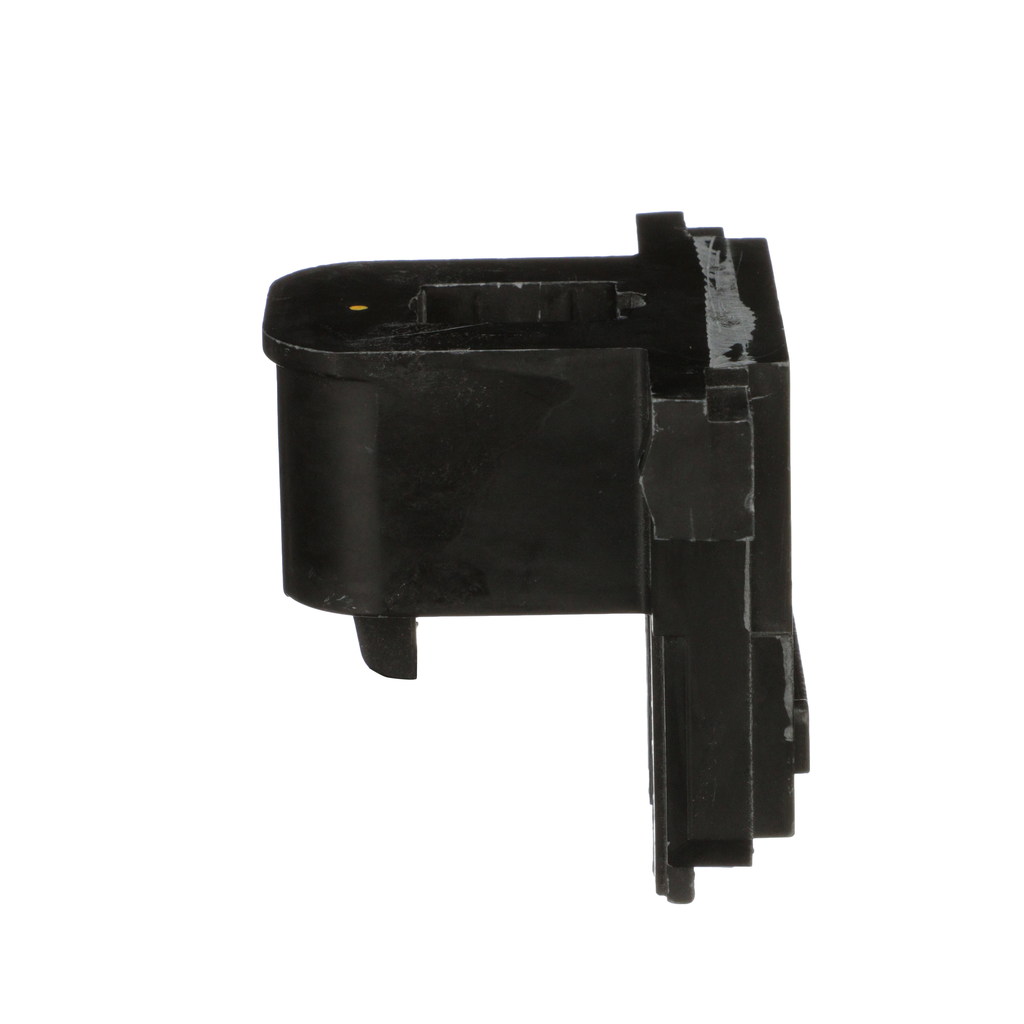

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SD contactor, an 8536SD starter or an 8903SP lighting contactor. This coil is rated for 208 VAC 60 Hz. The inrush power of this coil is 311 VA. It has an average sealed consumption of 37 VA. This coil has a height of 66.2 mm, a width of 101.1 mm and a depth of 61.7 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.

Technical Information

Applications
CONTACTORS AND STARTERS
Coil Voltage
208 V
NEMA Size
2
Operating Cycles
50/60HZ
Operating Temperature
40C AMBIENT
Power Consumption
37 VA
Size
2.43 in
TC Connection
SCREW CLAMP
Type
Coil
Voltage
208 Volt

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901107392
GTiN
00785901107392
Product UPC
78590110739

Dimensions

Depth
61.7 mm
Height
66.2 mm
Warranty Length
18 mth
Width
101.1 mm

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Country of Origin
Mexico
  • Non-reversing Magnetic Starters
  • Rated for 600 volts maximum, up to 600 HP and with a maximum of 810A
  • Bellcrank design is used to get improved electrical and mechanical life
  • Used to switch AC inductive motors
  • UL and CSA approvals
  • Available from NEMA Size 00 to NEMA Size 7
  • Replaceable coil and contacts
  • Supplied with VAC coil 50/60 Hz.
