Lutron MACL-153M-RHW-LA MAESTRO LED+ R

Manufacturer: Lutron | Catalog # MACL-153M-RHW-LA | Cooper Electric Part # 823541
$82.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Technical Information

Actuator
Tapswitch
Applications
Lighting
Connection Type
Screw Terminal,Screw-Type Terminals
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Size
75 in
Standard
UL CSA NOM
TC Connection
Screw terminals
Type
Clamshell Packaging,Companion Dimmer,Digital Fade Dimmer,Multi-location/3-way/single-pole,Wallplate
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Maestro
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276010542
Color
Almond
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
GTiN
00784276010542
Product UPC
78427601054

Certifications and Compliance

Country of Origin
China
Standards and Certifications
  • UL
  • CSA
  • NOM
Features
  • Provides the best dimming performance for LED bulbs
  • For use with up to 150-Watt of dimmable LED and up to 600-Watt of incandescent and halogen bulbs

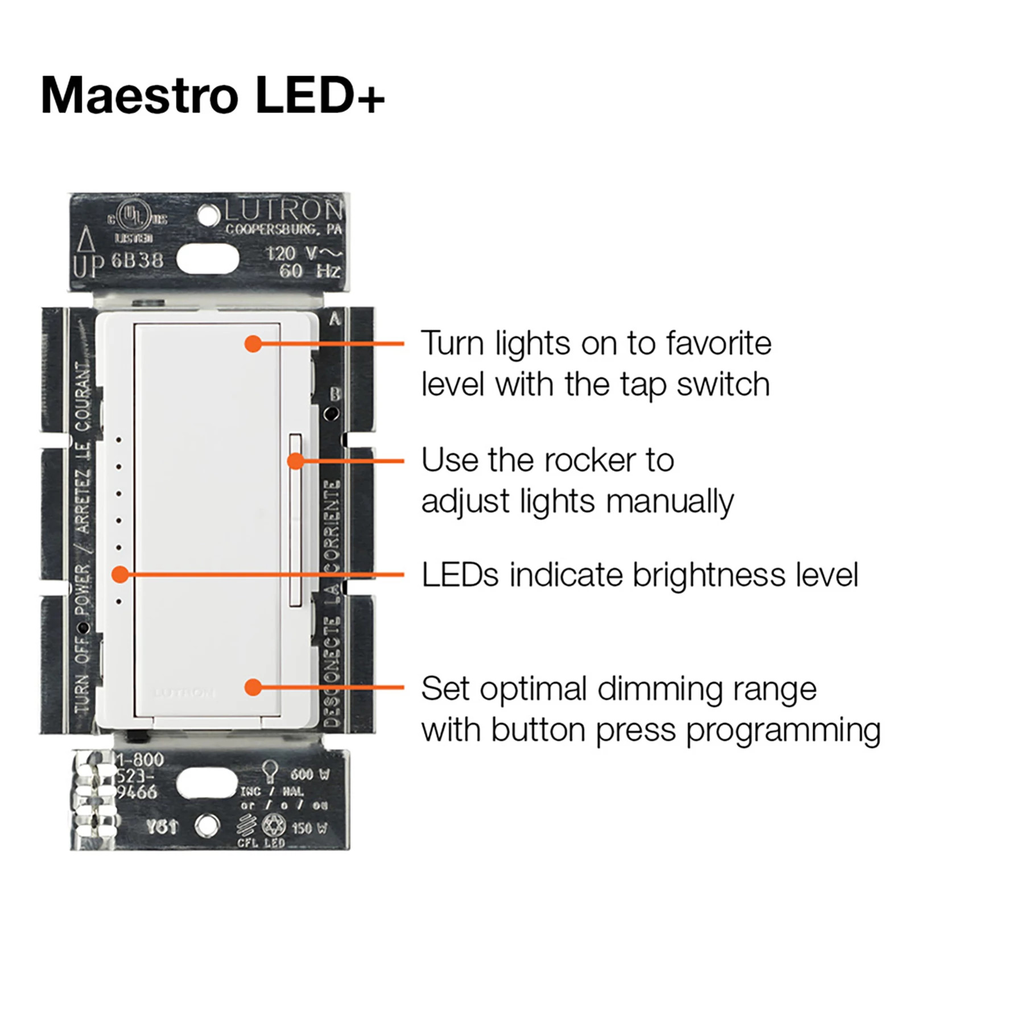

  • Features a tap switch to turn lights on/off or to preset level and a rocker to brighten/dim lights to suit any activity
  • Can be used in single-pole, 3-way, or multi-location applications
  • Programmable fade gradually turns lights on, allowing your eyes to adjust to the change in light, and gradually fade off, allowing time to exit a room before the lights turn off
  • Installs in as little as 15 minutes

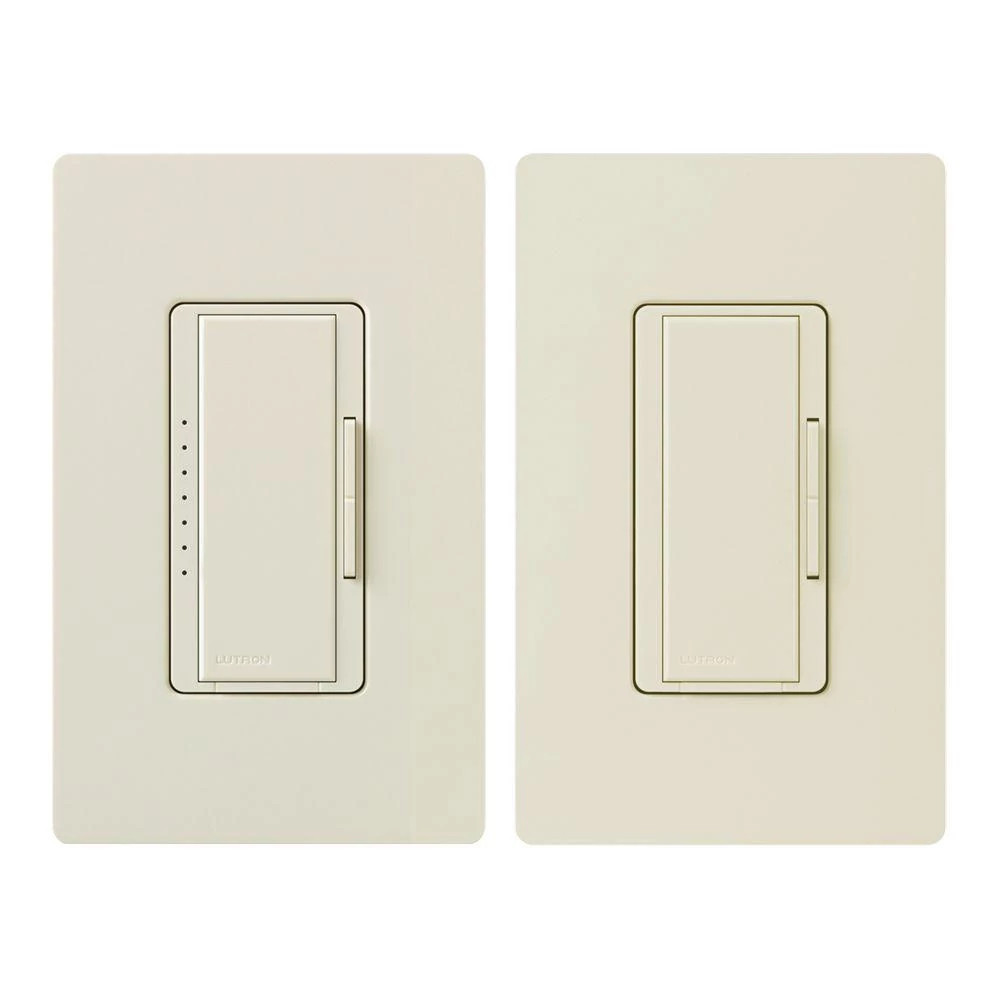

  • Kit Includes (1) Maestro LED+ (formerly C.L) Dimmer, (1) Maestro Companion Dimmer, and (2) coordinating Claro wallplates
  • Coordinating Claro and Stainless Steel wallplates available separately.
  • Capable of controlling up to 150 W Dimmable CFL / LED or 600 W Incandescent / Halogen or Mixed bulb type per Multigang and Mixed Bulb Type Ratings table
  • 100% factory tested
  • Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads

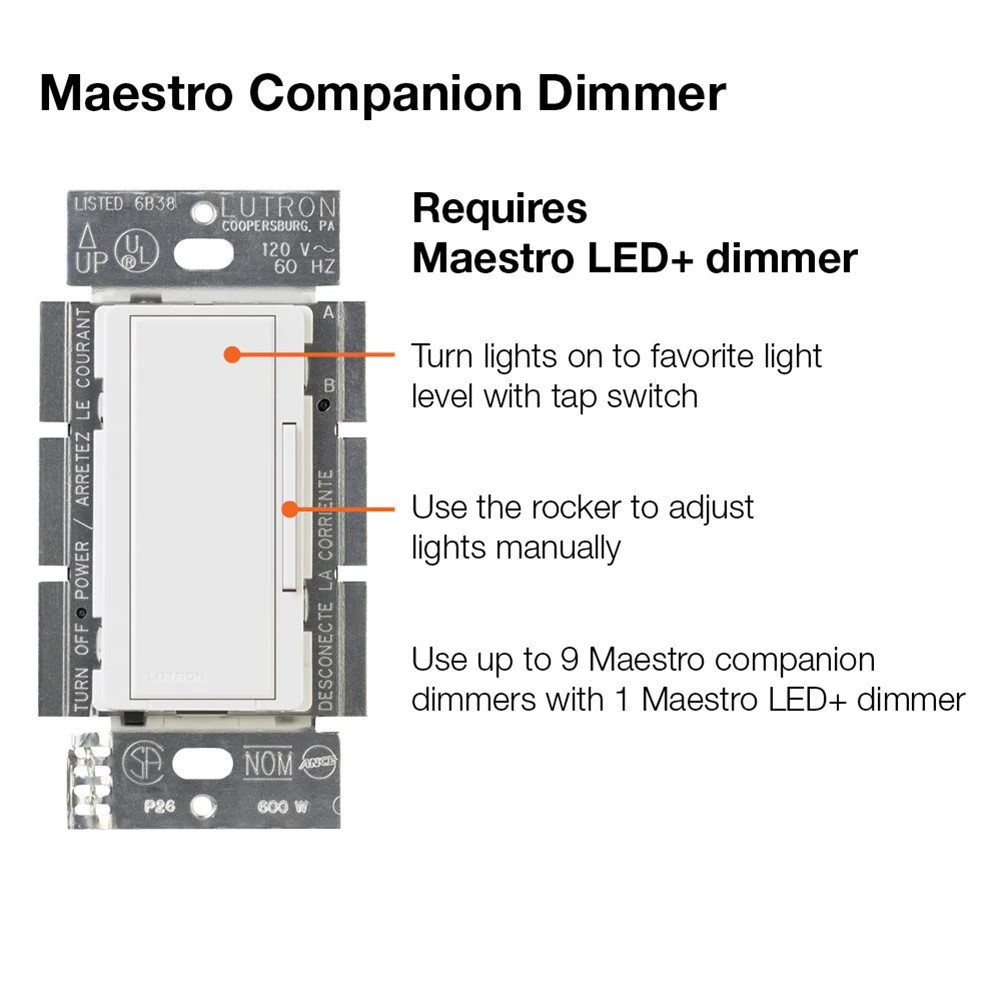

  • Provides true dimming from each location (with companion dimmers)
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
