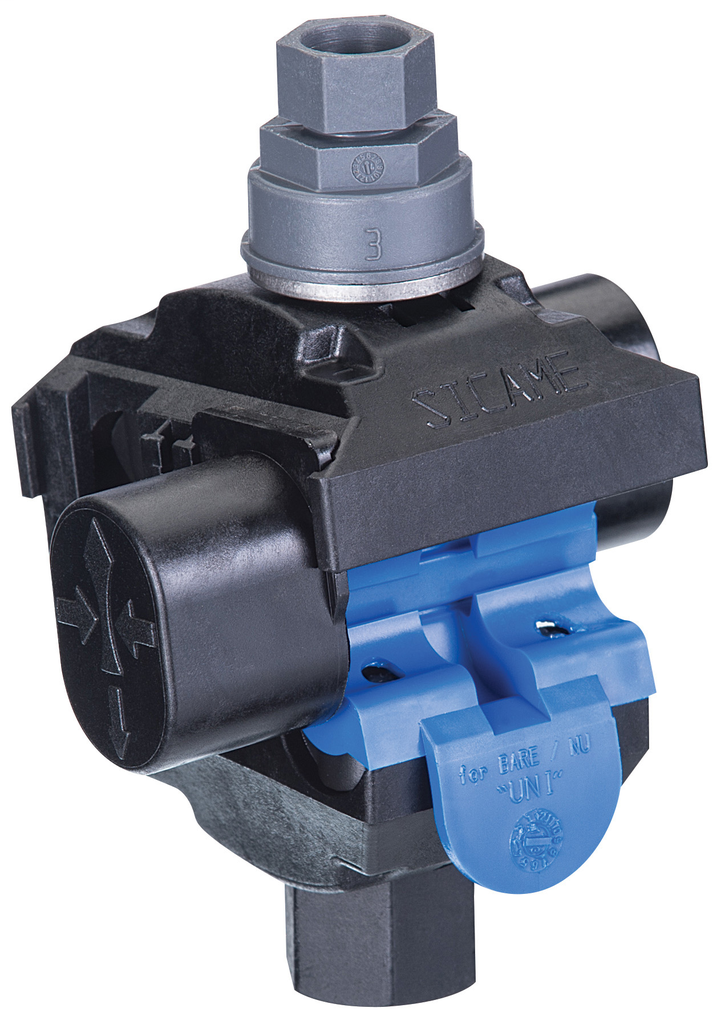

IDEAL BTC250-4 BTAP CONNECTOR

Manufacturer: Ideal Industries | Catalog # BTC250-4 | Cooper Electric Part # 82204
$111.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning
Safe, dependable, and easy. No other connector offers as much as the B-TAP® Insulation Piercing Connector. B-TAP® connectors are great for a wide range of applications such as temporary circuits, emergency repairs, disconnect/reconnect, remodeling, maintenance and repair, street lighting, service entrance, risers in high-rise construction, commercial metering, transformers, secondary midspan tap, and much more.

Technical Information

Conductor Size
1 AWG
Standard
CSA,RoHS,UL Listed
Tap Size
4/0-4 AWG
Temperature Rating
90 C
Type
Insulation-Piercing
Voltage
600 Volt

Manufacturer Information

Brand
Buchanan Rubber
Sub Brand
B-TAP®

General Product Info

12-Digit UPC
781789454481
GTiN
00781789454481
Product UPC
78178945448

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
Features
  • Hardened copper teeth pierce insulation and bite into conductors
  • Self-insulating and weather-proof, B-TAP® connectors are installed using only a standard box or socket wrench. A breakaway torque nut guarantees a perfect connection every time. The grease-filled rubber end caps provide superior water and corrosion resistance, while the insulation-piercing design eliminates downtime and power interruptions.
  • Breakaway torque nut snaps off when UL torque requirements are met
  • Grease-filled boots protect copper teeth from corrosion and prevent arcing
  • Grease-filled end cap seals end of conductor for superior weather protection
  • Second nut remains for easy connector removal
  • Rated to 90°C and 600V
  • Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
  • Full line has wire range from #14 to 750 kcmil
  • Safe, dependable, and easy. No other connector offers as much as the B-TAP® Insulation Piercing Connector. B-TAP® connectors are great for a wide range of applications such as temporary circuits, emergency repairs, disconnect/reconnect, remodeling, maintenance and repair, street lighting, service entrance, risers in high-rise construction, commercial metering, transformers, secondary midspan tap, and much more.
  • That translates into a 60% installed savings compared to split bolts. The exclusive breakaway torque nut simply snaps off when UL torque requirements are met. No more guesswork! B-TAP® connectors can be safely installed on energized systems, eliminating power interruptions and downtime.
  • Self-insulated housing eliminates the need for tape. Safely installs on energized systems
