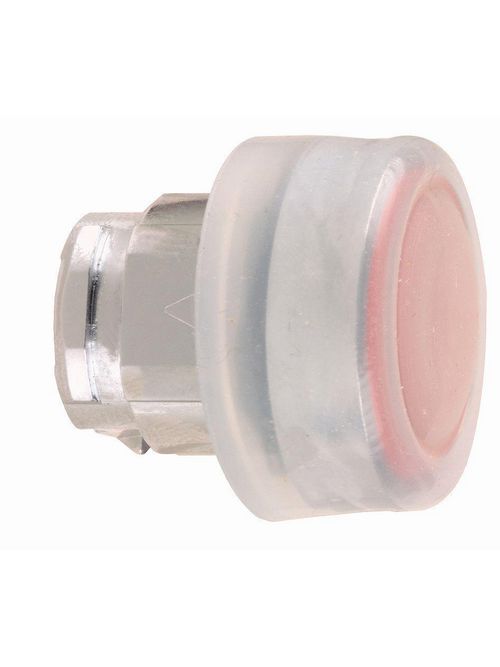

Product image for Square D ZB4BPA4 22 mm Red Round Flush Non-Illuminated Push Button Operator
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9

Email

Square D ZB4BPA4 22 mm Red Round Flush Non-Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # ZB4BPA4 | Cooper Electric Part # 819763

$29.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony XB4, flush red button head with clear boot operates with a spring return / impulse mechanism. This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.

Technical Information

Action
MOMENTARY
Actuator
METAL BUTTON: FLUSH (WITH BOOT)
Applications
RED UNMARKED
Bezel Material
Chromium Plated Metal
Enclosure
NEMA 1/2/3/4/4X/13
Head Type
Standard
Indicator
RED
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for non-illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB4

General Product Info

12-Digit UPC
785901139683
Color
Red
Environmental Conditions
IP 65
GTiN
03389110966541
Product UPC
78590113968

Dimensions

Height
30 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB4BZ009
  • ZBYLEG201001
Cross Sell Products
  • NSYS3D4420
  • XAPD1201
  • XALK84W3BE
Spare Part Products
  • ZBP0
