Thomas & Betts C10-6F #6 Bolt Hole Metal 12-10 AWG Wire Range Metallic Non-Insulated Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # RC10-6F | Cooper Electric Part # 81905
$356.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

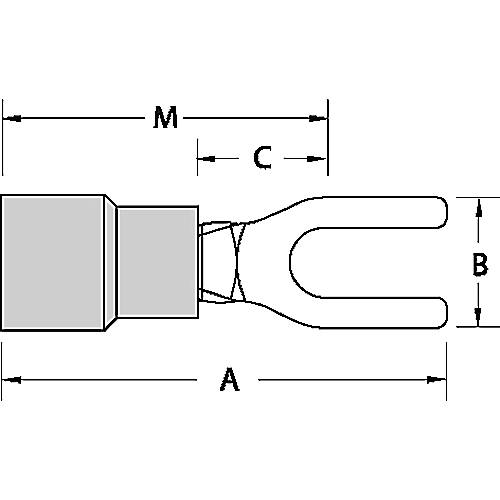

Nylon Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #6, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12 - 10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804323
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363159162
Product UPC
78621080432

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.1 in
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Certifications
  • UL
  • CSA
