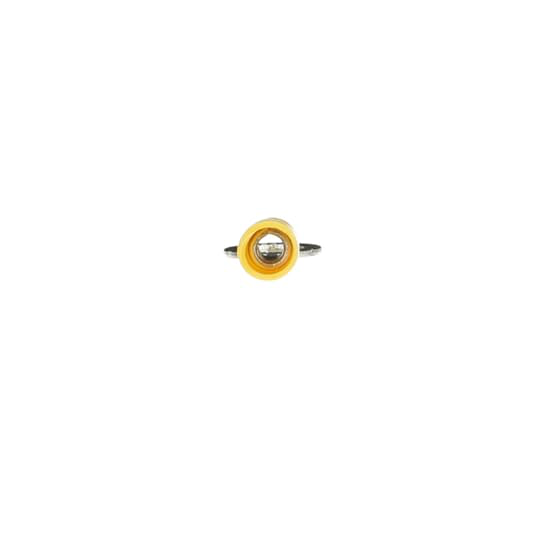

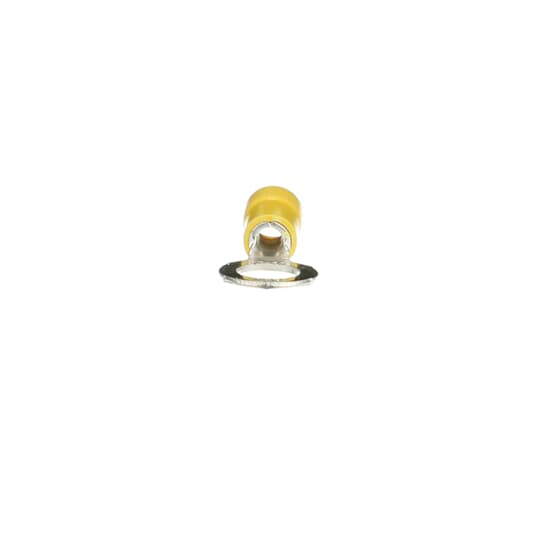

Thomas & Betts 10RC-516X 5/16 Inch Bolt Hole 12-10 AWG Wire Range Expanded Insulated Vinyl Ring Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # 10RC-516X | Cooper Electric Part # 81801
$374.60/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Expanded Vinyl-Insulated Ring Terminal, Length 1.17 Inches, Width .50 Inches, Maximum Insulation .250, Bolt Hole 5/16 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Applications
For Copper Conductors
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
5/16 in
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Vinyl Insulated Ring Terminal
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800547
Color
Yellow
Finish
Tin Plated
GTiN
05414363935711
Product UPC
78621080054

Dimensions

Height
8 Inch
Length
1.17 Inch
Thickness
.04 in
Width
10 in
Certifications
  • UL
  • CSA
Features
  • Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
