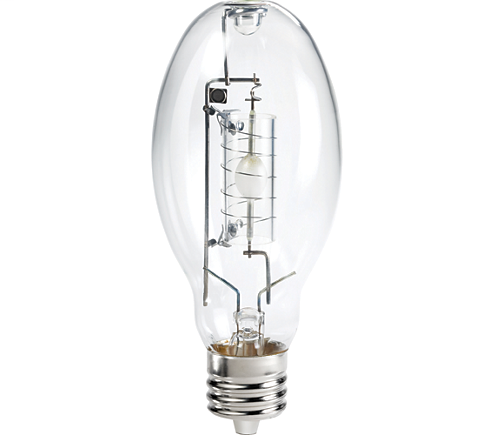

Product image for PHIL 411074 CDM145/U/O/4K ED28
Email

PHIL 411074 CDM145/U/O/4K ED28

Manufacturer: Philips Lamps | Catalog # 411074 | Cooper Electric Part # 817989
$83.17/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Philips Lighting, Lamp, Base: Exclusionary Mogul Screw, Bulb: ED28, Finish: Coated, Color: 940, Average Life: 20000 HR, Color Temperature: 4050 K, Lumen: 13775 LM, Wattage: 145 WTT, Voltage Rating: 125 V

Technical Information

Amperage
1.45 Amp
Base
Twist
Bulb Shape
ED28
Color Accuracy
87
Color Coding
940
Color Rendering Index
87
Color Temperature
4050 K
Correlated Color Temp
4,200 K
Efficacy
85 LPW
Lumens
13,775 Lumen
Material
Ceramic
Max Voltage
141 V
Power Rating
145.5 W
Size
ED28
Type
HID Lamps&Specialities
Voltage
125 Volt
Wattage
145 Watt

Manufacturer Information

Brand
Philips Lighting

General Product Info

12-Digit UPC
046677411077
Color
4000 Kelvin
Finish
Clear
GTiN
00046677411077
Product UPC
04667741107
Shape
ED28
Weight
0.001 kg

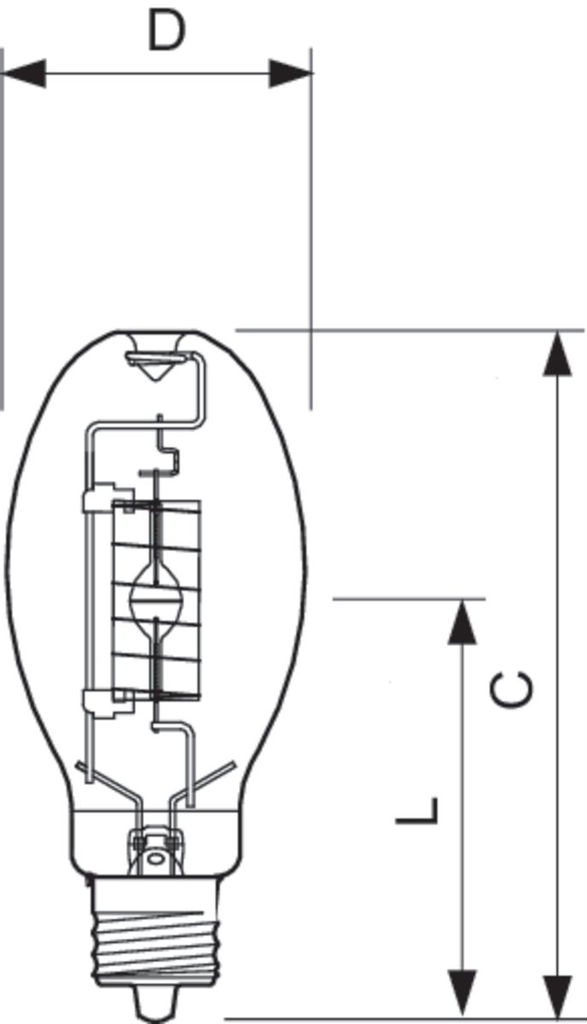

Dimensions

Diameter
88.9 mm
Features
  • Provides crisp, white light
  • Up to 100 lumens per watt
  • Universal operating position that does not affect the lamp life; exception: 860W vertical position only.
  • Long life ? 20,000 hrs rated average life
  • 330W CDM lamp with AllStart™Technology compared to 400W quartz Metal Halide lamp.
  • Rated average life is the life obtained on the average, from large representative groups of lamps in laboratory tests under controlled conditions at 10 or more operating hours per start. It is based on survival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary considerably from the average.
Benefits
  • Reduced maintenance and recycling costs
  • Direct retrofit for both probe and pulse start magnetic ballasts (not suitable for operation on electronic ballasts)
  • Excellent color rendering of CRI ? 85
Warning And Safety
  • WARNING:These lamps can cause serious skin burn and eye inflammation from short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.\" This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA:21 CFR 1040.30 Canada: SOR/DORS/80-381)
  • Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050
Applications
  • Ideal for high-ceiling industrial, retail and distribution centers as well as outdoor applications.
