SQUARED ZB4BZ1035 Single contact bl

Manufacturer: Square-D / Schneider | Catalog # ZB4BZ1035 | Cooper Electric Part # 817922
$30.87/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 Product Brochure

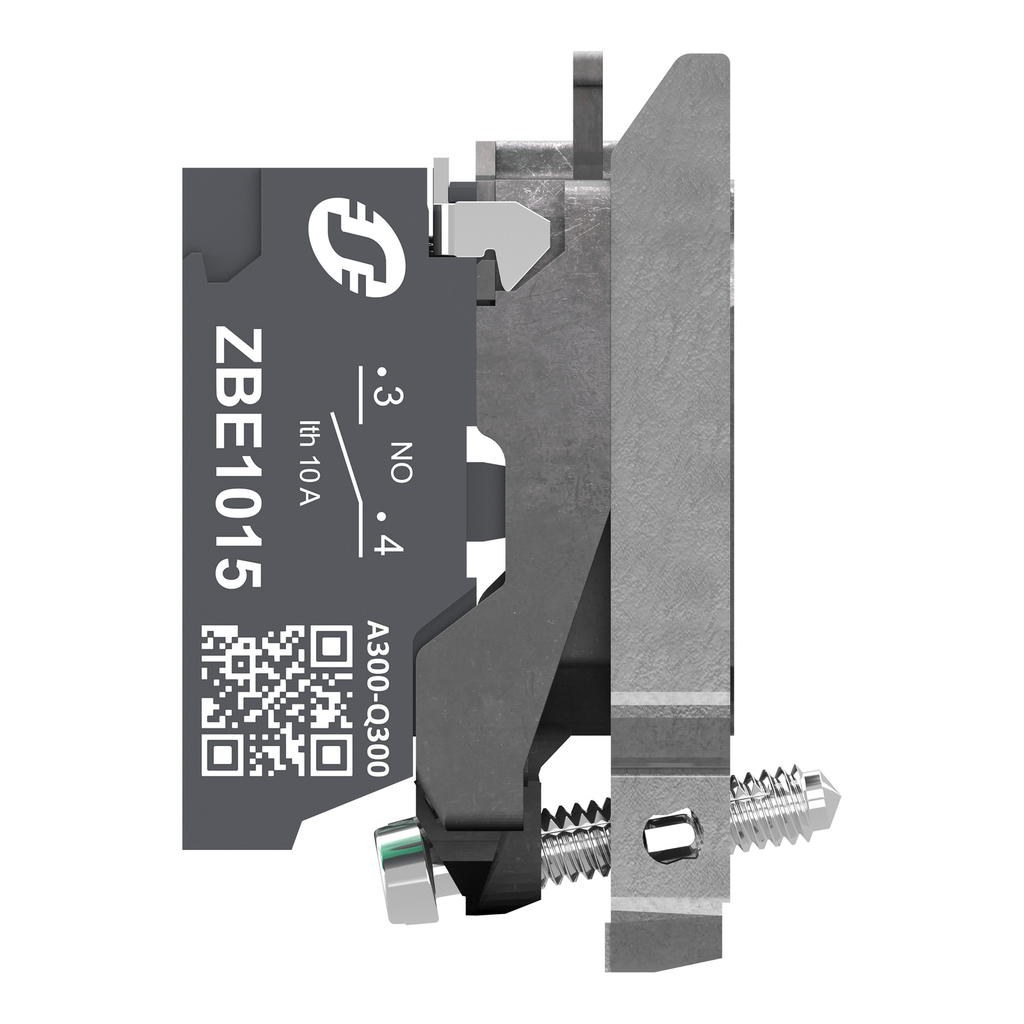

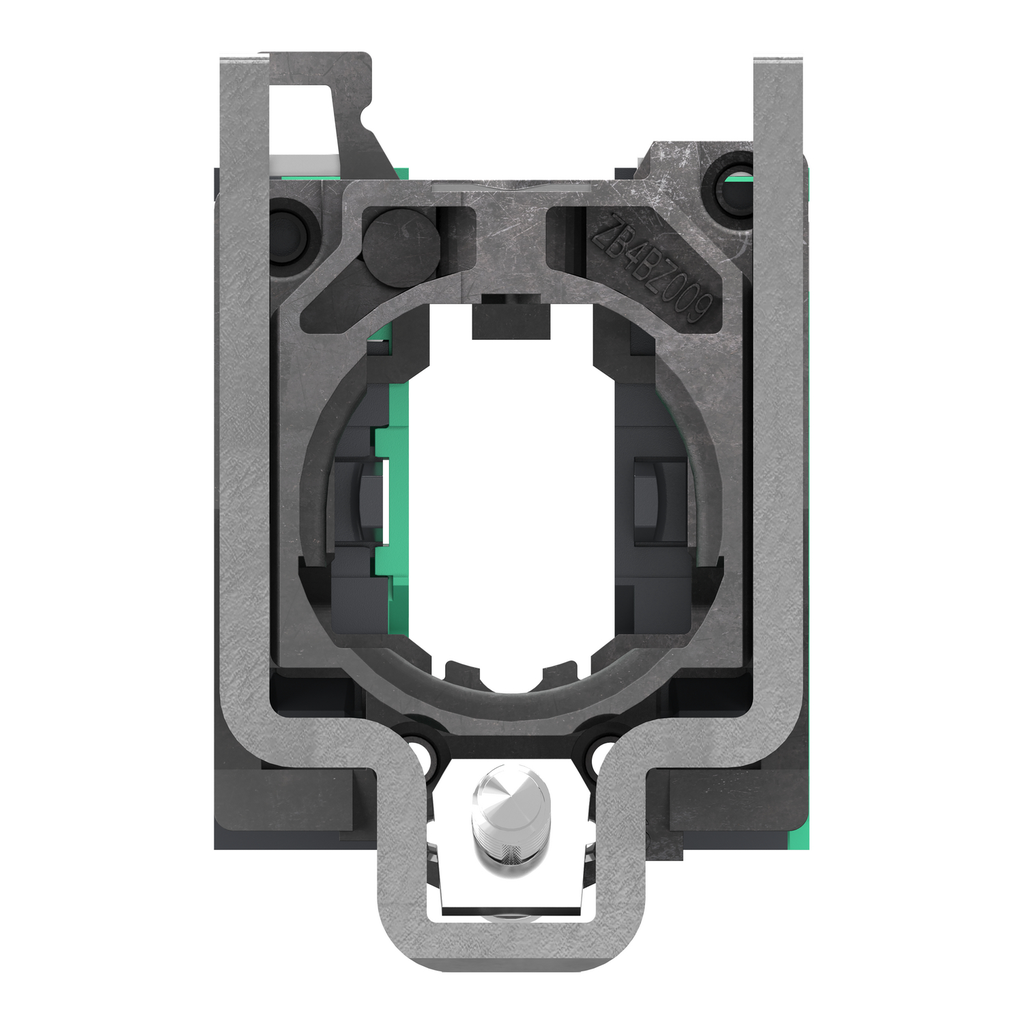

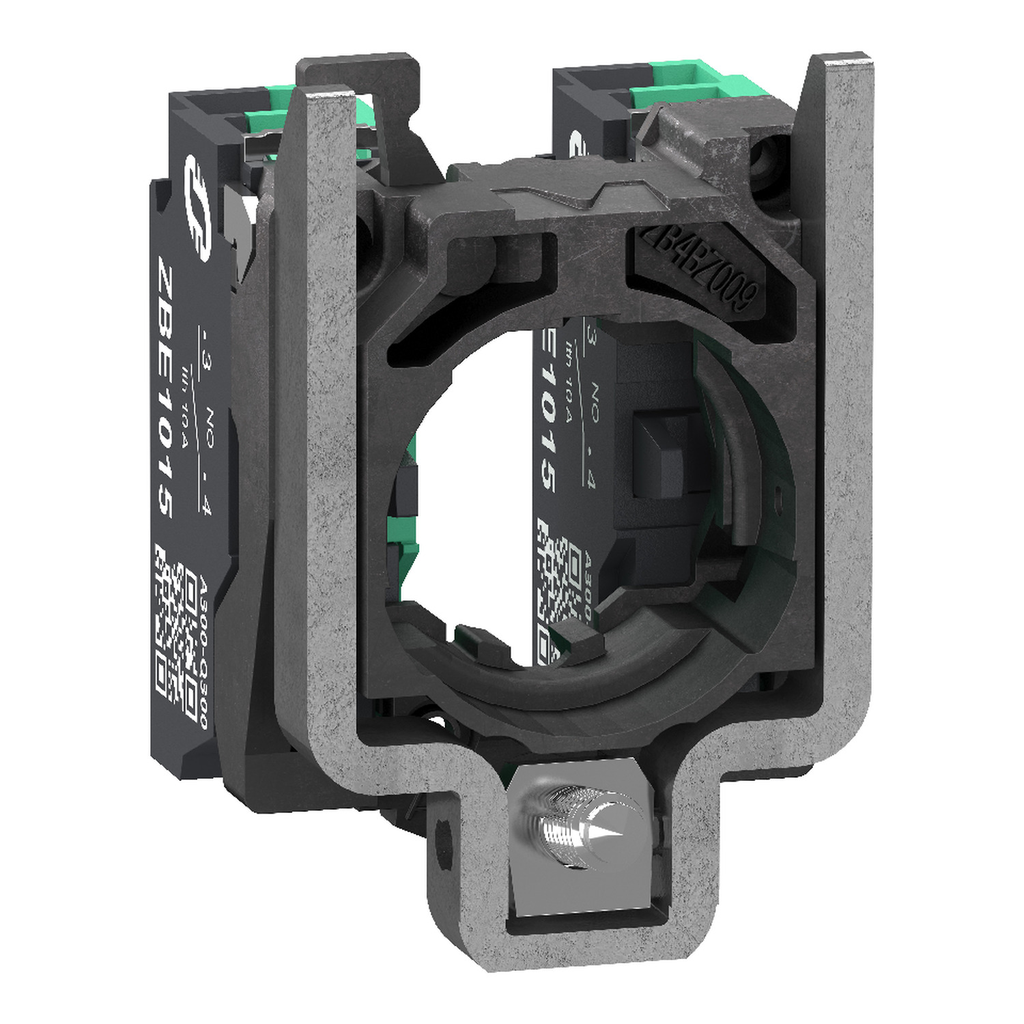

This complete body is an accessory of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It consists in a single contact block pre-assembled on a fixing collar unit. It features 2 NO slow break contact block and spring clamp connection type. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It weighs 62g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications

Technical Information

Action
Slow-break
Amperage
10 Amp
Contact Configuration
2 NO
Contact Material
Silver Alloy
Contact Rating
A600 - Q600
Head Type
Standard
Net Weight
0.048 kg
Operating Force
4.9 N
Operating Temperature
-40-70 Adegrees C
Size
30 MM,37 MM,47 MM
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SPRING CLAMP TERMINALS
Type
Single;Complete body/contact assembly
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB4

General Product Info

12-Digit UPC
389119037702
GTiN
03389119037709
Product UPC
78590186957
Weight
0.048 kg

Dimensions

Height
27.6 mm
Warranty Length
18 mth
Width
46.2 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBZ32
  • ZBY2101
  • ZBYLEG201001
  • ZBZ33
Cross Sell Products
  • NSYS3D4420
  • XALK84W3BE
  • ZB4BZ103
Spare Part Products
  • ZB4BZ009
  • ZBE1015
