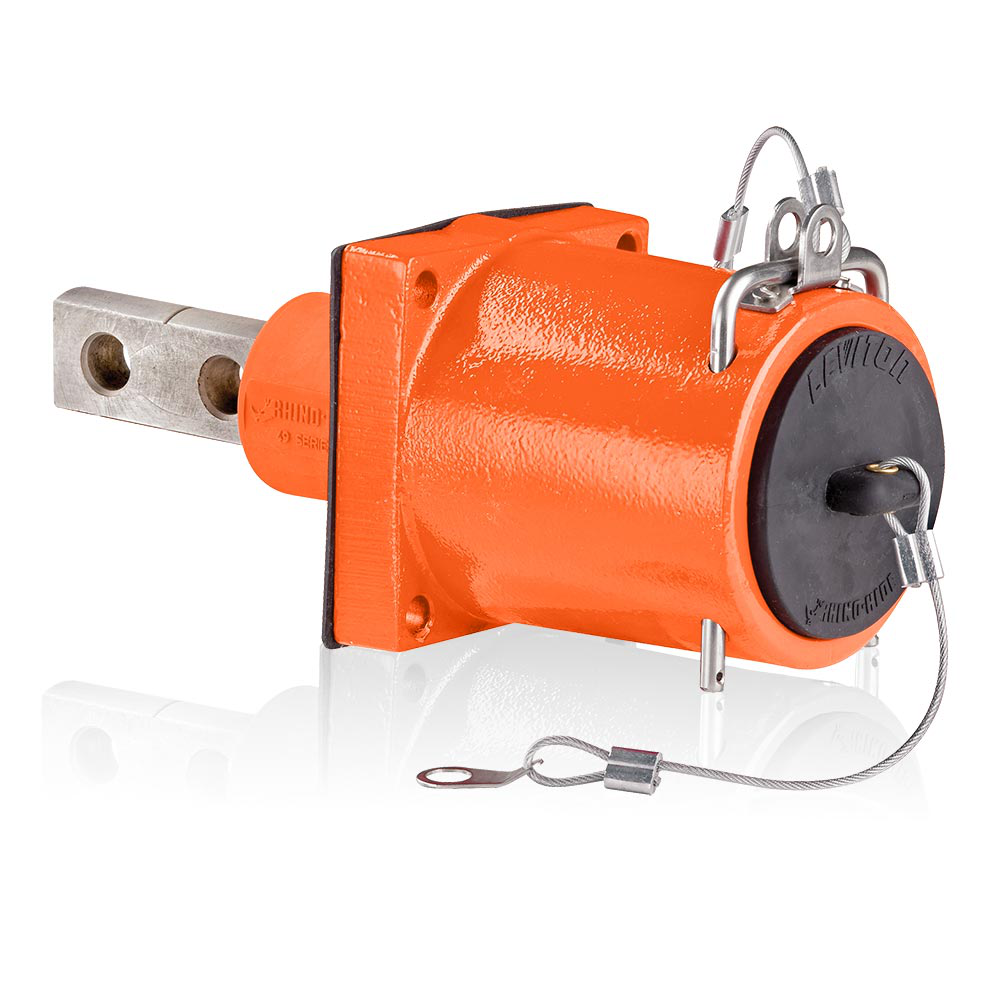

Product image for LEV 49FR2-CO OR HIGH AMP CPLT FEM R
Email

LEV 49FR2-CO OR HIGH AMP CPLT FEM R

Manufacturer: Leviton Mfg Co | Catalog # 49FR2-CO | Cooper Electric Part # 816530
$1,251.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Rhino-Hide 49 Series Single Pole Female Receptacle (Color Coded Metal Housing, Contact, & Dust Cap), Double Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - ORANGE

Technical Information

Amperage
1135 Amp
Applications
Commercial
Conductor Size
313-777 kcmil
Connection Type
Bus Bar
Material
Aluminum
Max Current
1135 A
Max Voltage
1000 V
Mounting Type
Panel
NEMA Size
3R
Number of Phases
1 Phase
Number of Poles
1 Pole
Number of Wires
1 Wire
Receptacle Type
Powder-Coated Cast Aluminum
Size
3.91 Dia. x 4.98 L IN
Standard
CULus Listed
TC Connection
Bus Bar
Temperature Rating
-60 To 135 degrees C
Type
Double Hole Bus Bar,Female Receptacle
Voltage
1000 Volt
Wire Size
313-777 kcmil

Manufacturer Information

Brand
Leviton
Sub Brand
RHINOHIDE

General Product Info

12-Digit UPC
078477344064
Color
Orange
Environmental Conditions
NEMA Type 3R
Gender
Female
GTiN
00078477344064
Product UPC
07847734406

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
  • Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
  • TPV cap prevents contamination when receptacle is not in use
  • Captive stainless steel clevis bracket accepts industry standard lockout; \"X\" versions feature 45° for easier access in smaller panels
Color Variations
  • Blue
