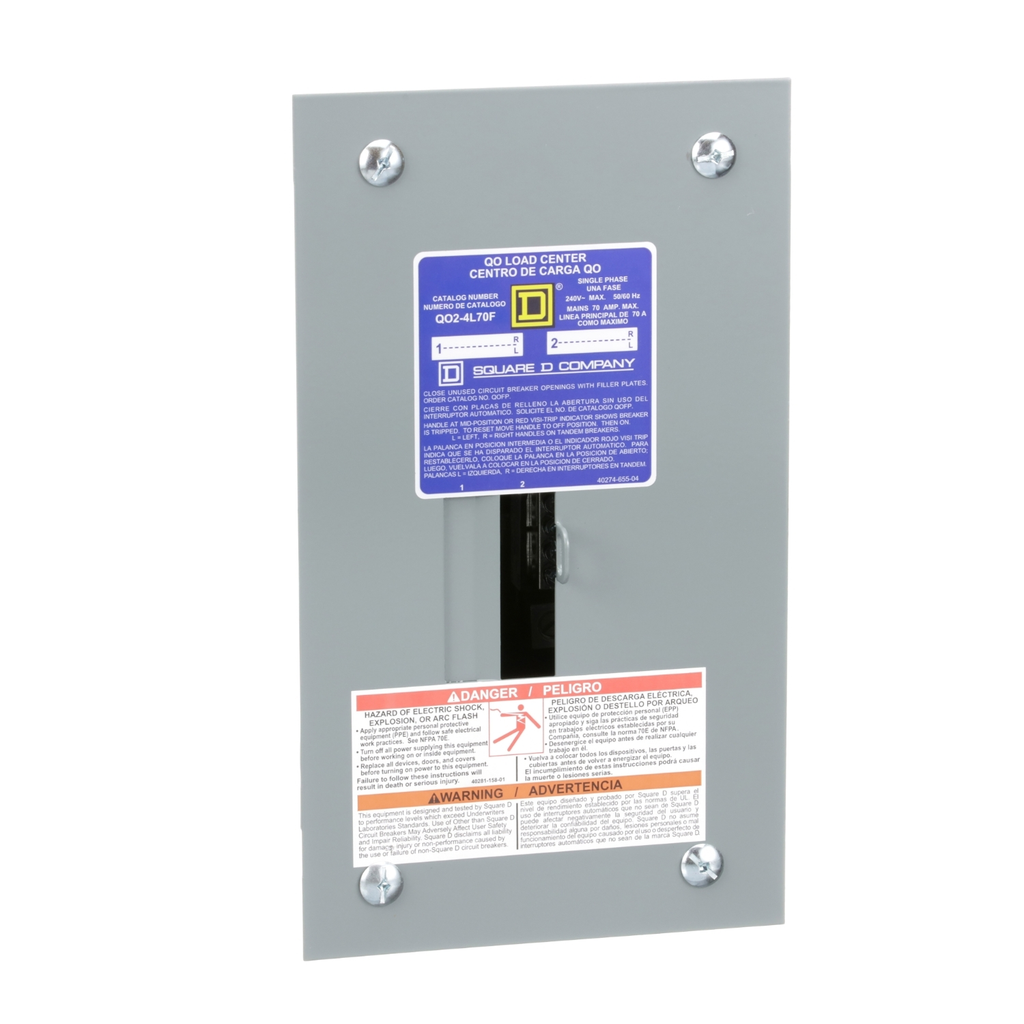

Square D QO24L70F Load Center MLO 70A 120/240V 1Ph NEMA-1

Manufacturer: Square-D / Schneider | Catalog # QO24L70F | Cooper Electric Part # 81550
$69.00/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Pick Up

at Ocean Opens Wednesday 7:00am ET
23 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
QO® Circuit Breaker Load Centers, QO24L70F, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Technical Information

Amperage
70 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Cable Size
AWG 12...AWG 3 ALUMINIUM-AWG 14...AWG 4 COPPER
Conductor Size
12-3 AWG (AL)/14-4 AWG (CU)
Cover Type
Flush Cover
Current
70 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
65 kAIC
Line Rated Current
70 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
1
Number of Circuits
4
Number of Phases
1,3 Phase
Number of Spaces
2
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
65 kA
Short Circuit Current Ratng
65 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120/240 Volt
Wire Size
AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper NULL

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901785125
Finish
Baked Enamel
GTiN
00785901785125
Product UPC
78590178512

Dimensions

Height
236 mm
Warranty Length
18 mth
Width
122 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • PK2MB
  • PK4GTA
  • PK4GTABP
  • QO120CP
  • QO2175SB
  • QOFPCP
  • QO230CP
  • QO250PSPD
  • HEPD25
  • QO115CP
  • HEPD50
  • QO240CP
  • HEPD80
  • QO250CP
  • HEPD25MKF
  • QO260CP
  • HEPD58MKF
  • QOM70VH
