Product image for HWDK HBL1221GHCS SWITCH, HOSP CALL,
Image thumbnail 0
Image thumbnail 1
Email

HWDK HBL1221GHCS SWITCH, HOSP CALL,

Manufacturer: Hubbell Wiring Device | Catalog # HBL1221GHCS | Cooper Electric Part # 814280
$29.81/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Hospital Call Switch, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Gray, With Lanyard

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
20 Amp
Applications
Back and Side Wired
Base Material
Thermoset
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Grade
Hospital
Material
Thermoset,Thermoset
Max Current
20 A
Max Voltage
277 V
Number of Poles
1-1 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C
Screw Material
Brass
Size
4.18 in x 1.45 in x 1.82 in
Style
Single Pole
TC Connection
Back and Side Wired
Toggle Material
Nylon
Type
Toggle
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585188010
Color
Gray
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585188010
Product Series
Heavy Duty
Product UPC
78358518801

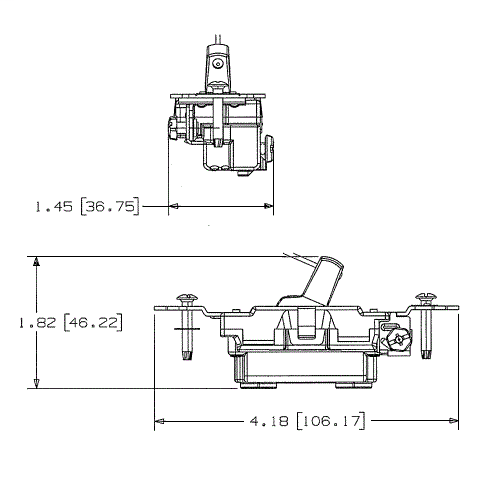

Dimensions

Height
1.82 Inch
Length
4.18 Inch
Width
1.45 in

Certifications and Compliance

Country of Origin
China
Features
  • Large brass binding head screws with deep slots
  • Provides a means of alerting trouble
  • Strip gauge for accurate wiring
