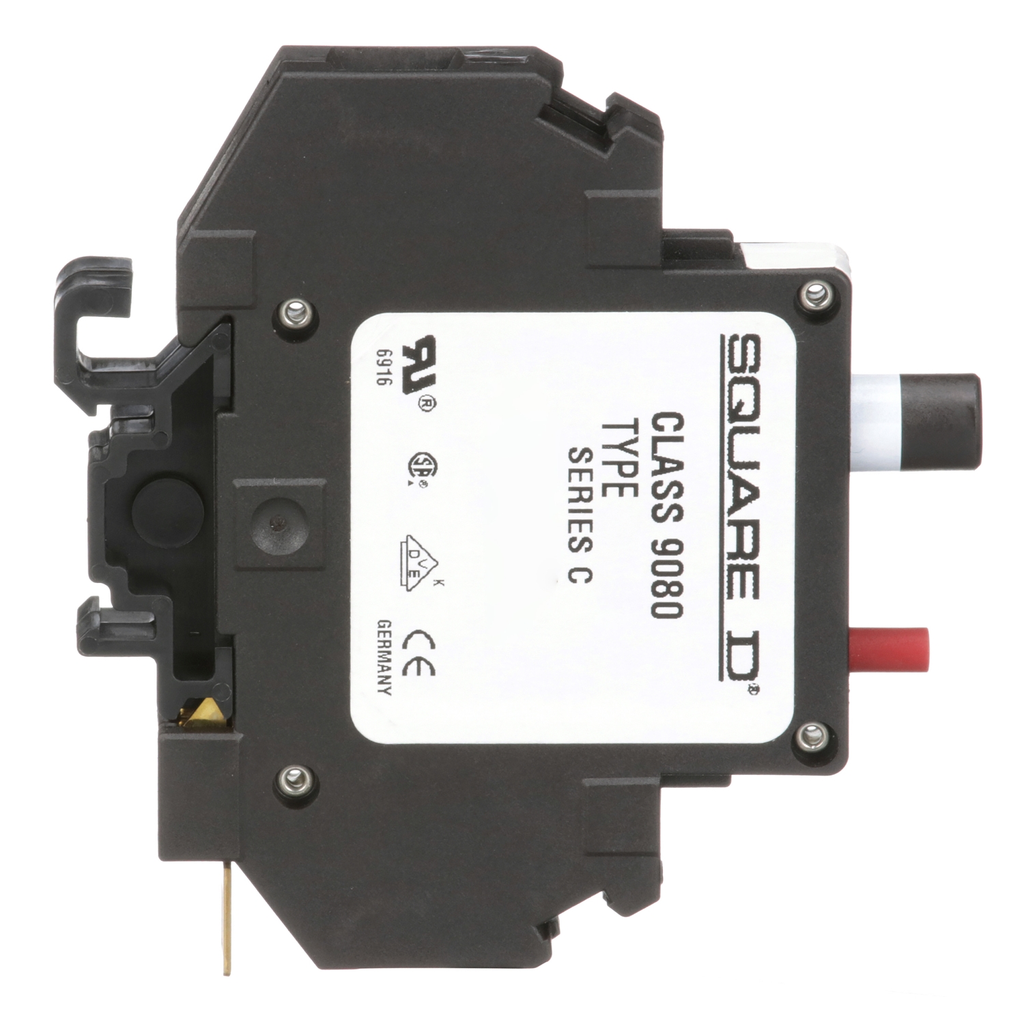

Square D 9080GCB100 250 Volt 10 Amp Type NEMA Circuit Protector

Manufacturer: Square-D / Schneider | Catalog # 9080GCB100 | Cooper Electric Part # 81405
$72.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
5 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 10.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.

Technical Information

Amperage
10 Amp
Applications
Industrial Application
Conductor Size
16-10 AWG
Line Rated Current
10 A
Number of Poles
1 Pole
Operating Temperature
-22??140? ?degrees F (-30??60? ?degrees C) NULL
Size
0.5 in
Standard
CSA C22.2 No 235,DIN 57470,UL 1077
Strip Length
0.5 in
TC Connection
Box lugs
Type
Circuit Protector
Voltage
65 Volt
Wire Size
AWG 16...AWG 10 copper

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901481010
GTiN
00785901481010
Product UPC
78590148101

Dimensions

Depth
1/2 Inch
Height
3.45 Inch
Length
1/2 Inch
Warranty Length
18 mth
Width
3.15 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 025490 Class 3211 07,UL Recognized E233026 CCN QVNU2
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9080MH339
  • 9080MHA10
  • 9080GH136
  • 9080GH236
  • 9080GH10
