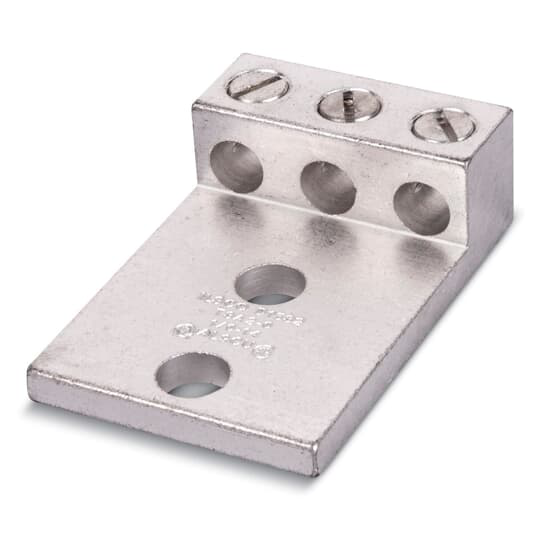

Product image for Blackburn ADR31-32 Extruded Aluminuminum Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Blackburn ADR31-32 Extruded Aluminuminum Lug

Manufacturer: Blackburn / Thomas & Betts | Catalog # ADR31-32 | Cooper Electric Part # 813732
$3,049.32/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Type ADR-ALCUL Three-Conductor, Two-Hole Mount for Conductor Range Max 3/0 Str., Min 6 Str.

Technical Information

Conductor Size
6-3/0 AWG
Conductor Type
Aluminum and Copper
Material
Aluminum
Number of Conductors
3
Standard
UL E9809
Type
Dual-Rated

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610174
Finish
Tin Plated
GTiN
00783786610174
Product UPC
78378661017

Dimensions

Length
4 Inch
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • NEMA spacing 1 3/4 inch centers.
  • UL 486B tested, AL9CU rated
Certifications
  • UL
  • CSA
Features
  • Easy Installation - no special tools required.
