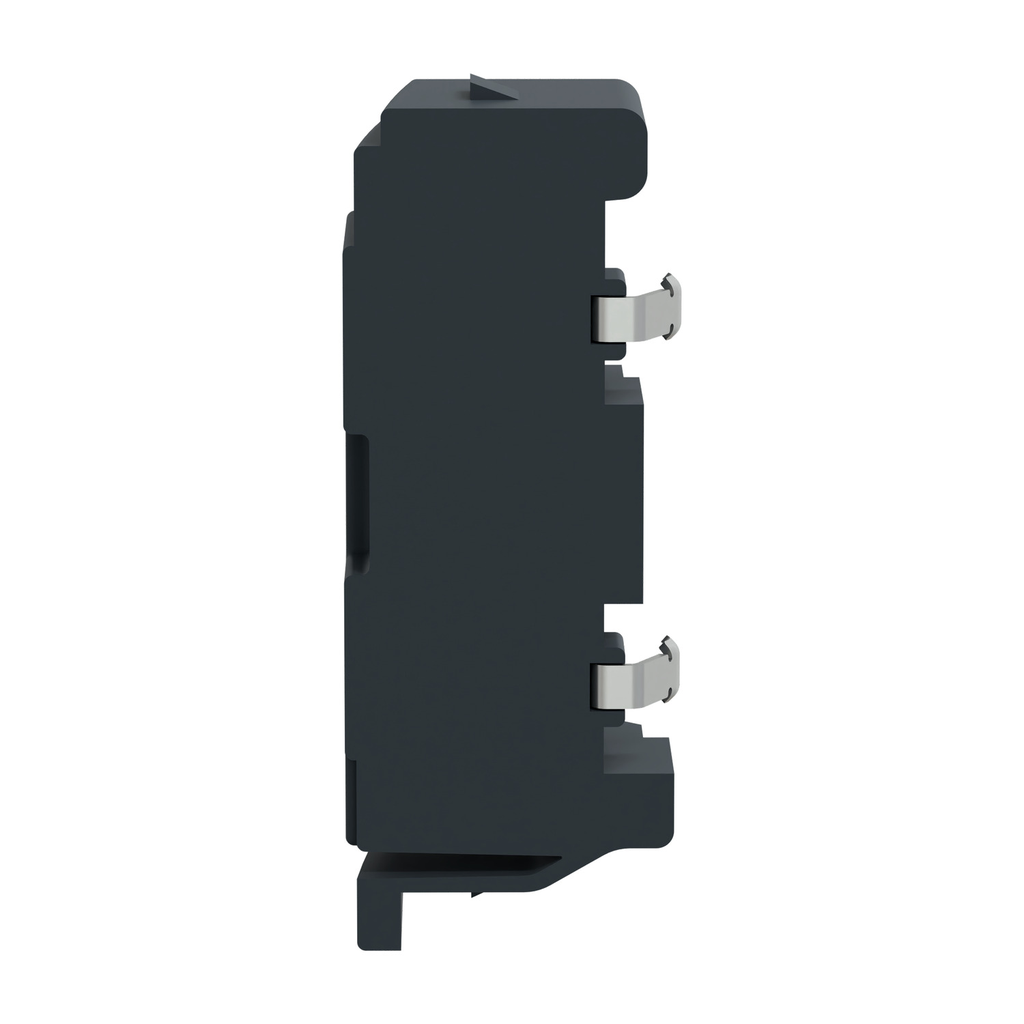

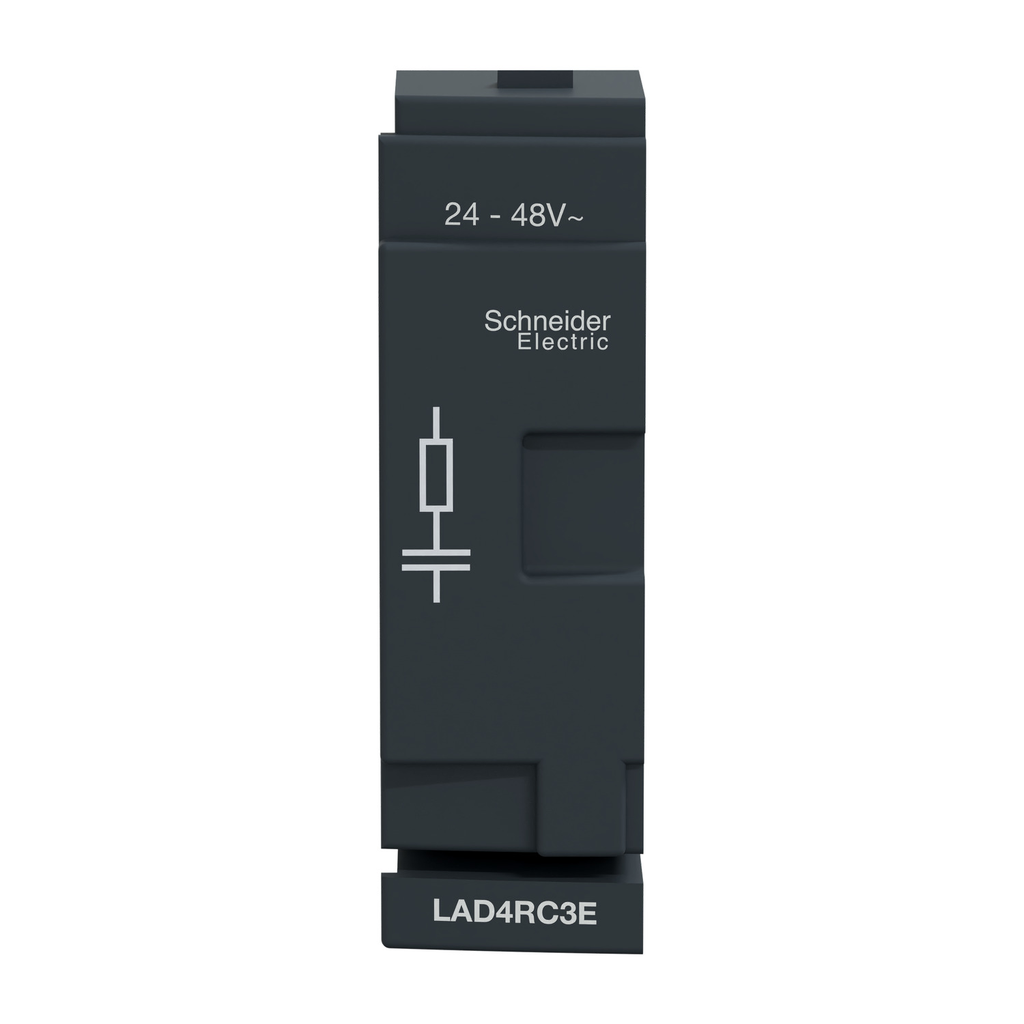

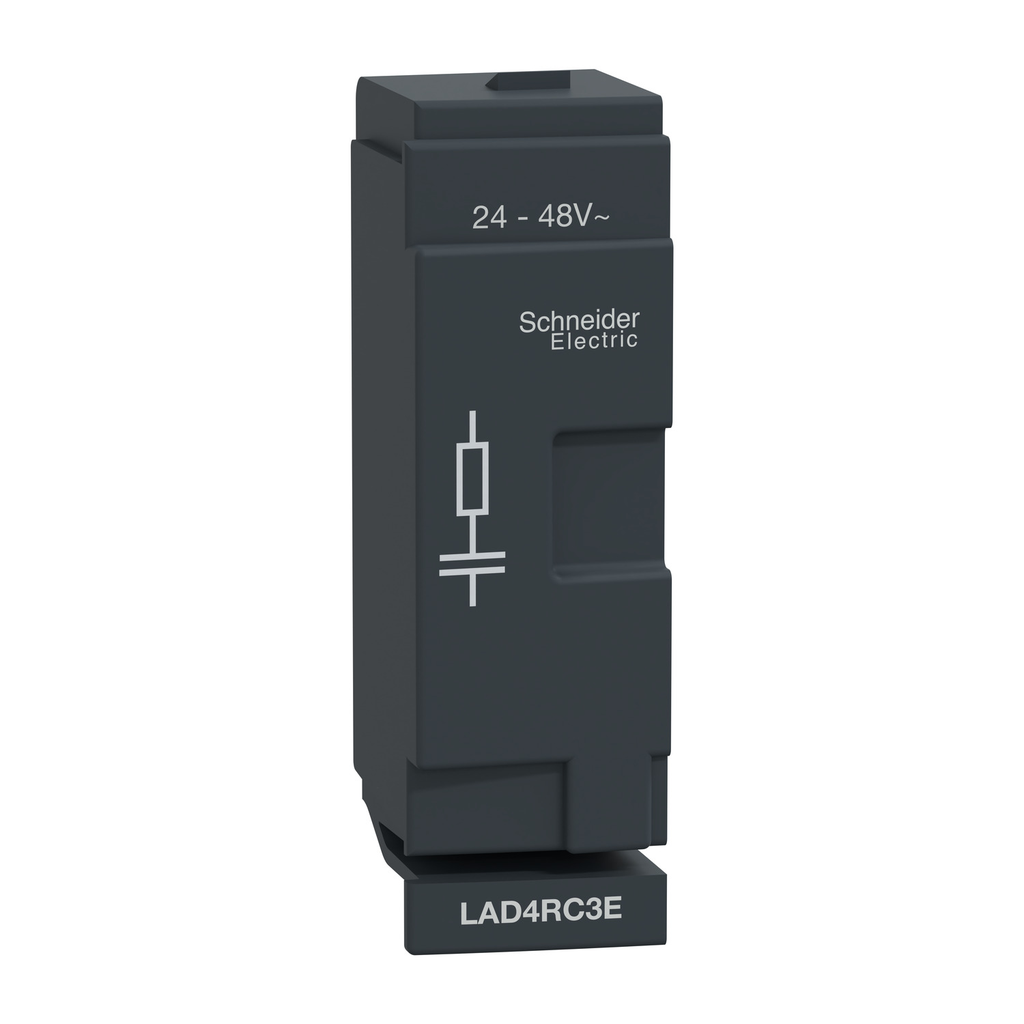

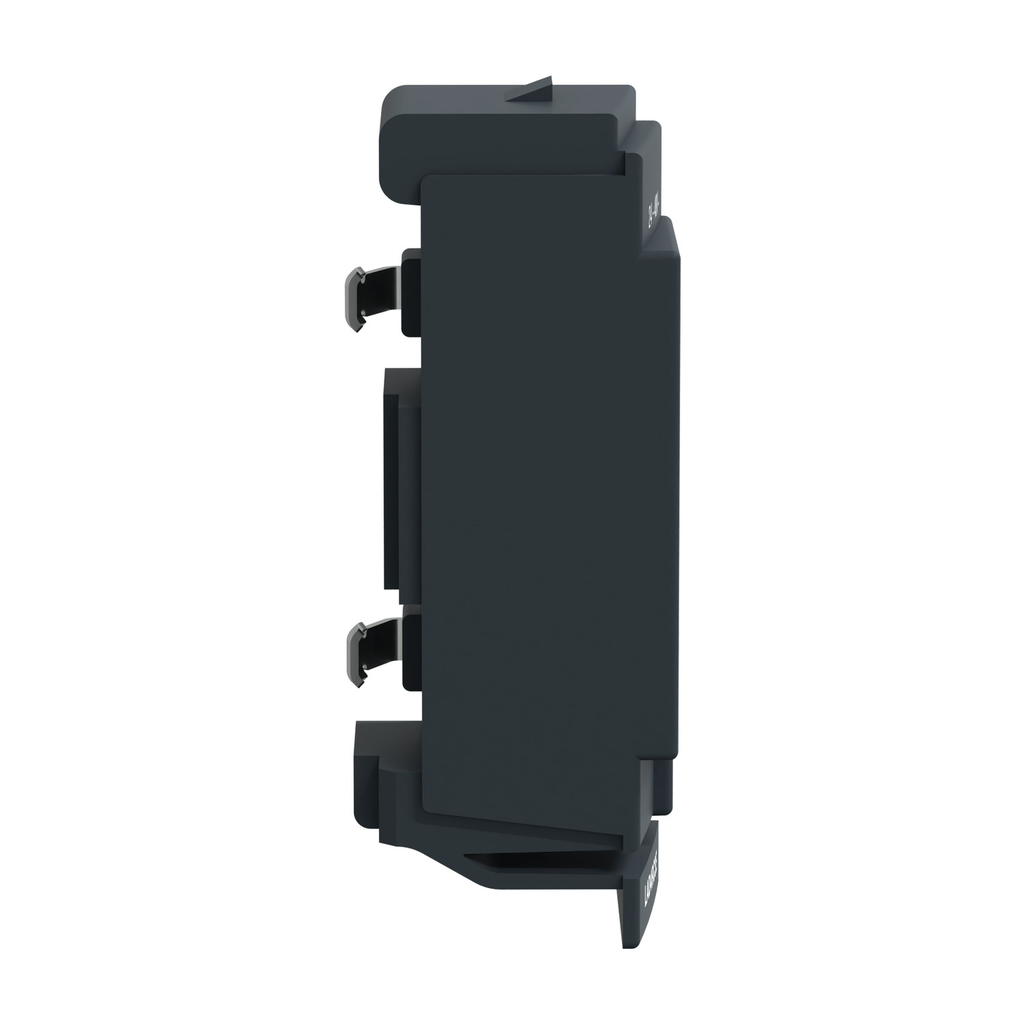

SQUARED LAD4RC3E D40A to D65A RC 24

Manufacturer: Square-D / Schneider | Catalog # LAD4RC3E | Cooper Electric Part # 811213
$31.12/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys Deca suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 24-48V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on front mounting, overall size of the contactor is unchanged.

Technical Information

Applications
3P LC1D40A...D80A-4P LC1DT60A...DT80A
Coil Voltage
24 to 48@50/60Hz V
Mounting Type
Clips
Net Weight
0.02 kg
Operating Temperature
-25-55 degrees C
Range
TeSys
Standard
CSA C22.2 No 60947-5-1,EN 60947-5-1,GB/T 14048.5,IEC 60947-5-1,UL 60947-5-1
Storage Temperature
-40-80 degrees C
Type
Suppressor module;RC circuit

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS D

General Product Info

12-Digit UPC
785901661733
Color
Gray
GTiN
03389119410168
Product UPC
78590166173
Weight
0.02 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Czechia
Compatible Products
  • LC1D40AB7
  • LC1D40AE7
  • LC1D65AB7
  • LC1D65AE7
  • LC1D50AB7
  • LC1D50AE7
  • LC1D40AB6
  • LC1D40AD7
  • LC1D65AD7
  • LC1D65A6B7
  • LC1D50AD7
  • LC1D40A6B7
  • LC1D50AB6
  • LC1DT80AE7
  • LC1DT80AB7
  • LC1D80AB7
  • LC1D80AE7
  • LC1DT60AB7
  • LC1D50A3E7
  • LC1D65AB6
  • LC1DT60A3E7
  • LC1D65A3E7
  • LC1D50A6B7
  • LC1DT60AD7
  • LC1DT80A3E7
  • LC1D80A3E7
  • LC1DT80AC7
