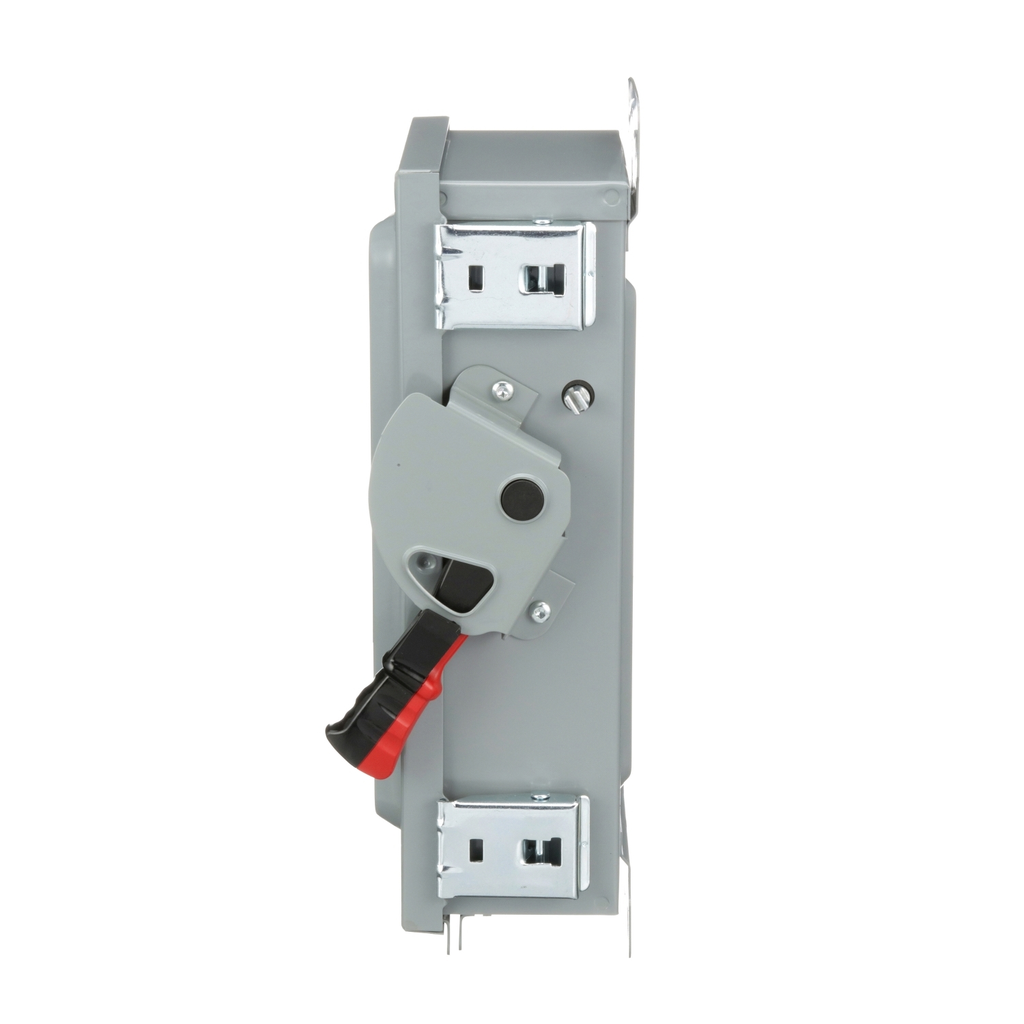

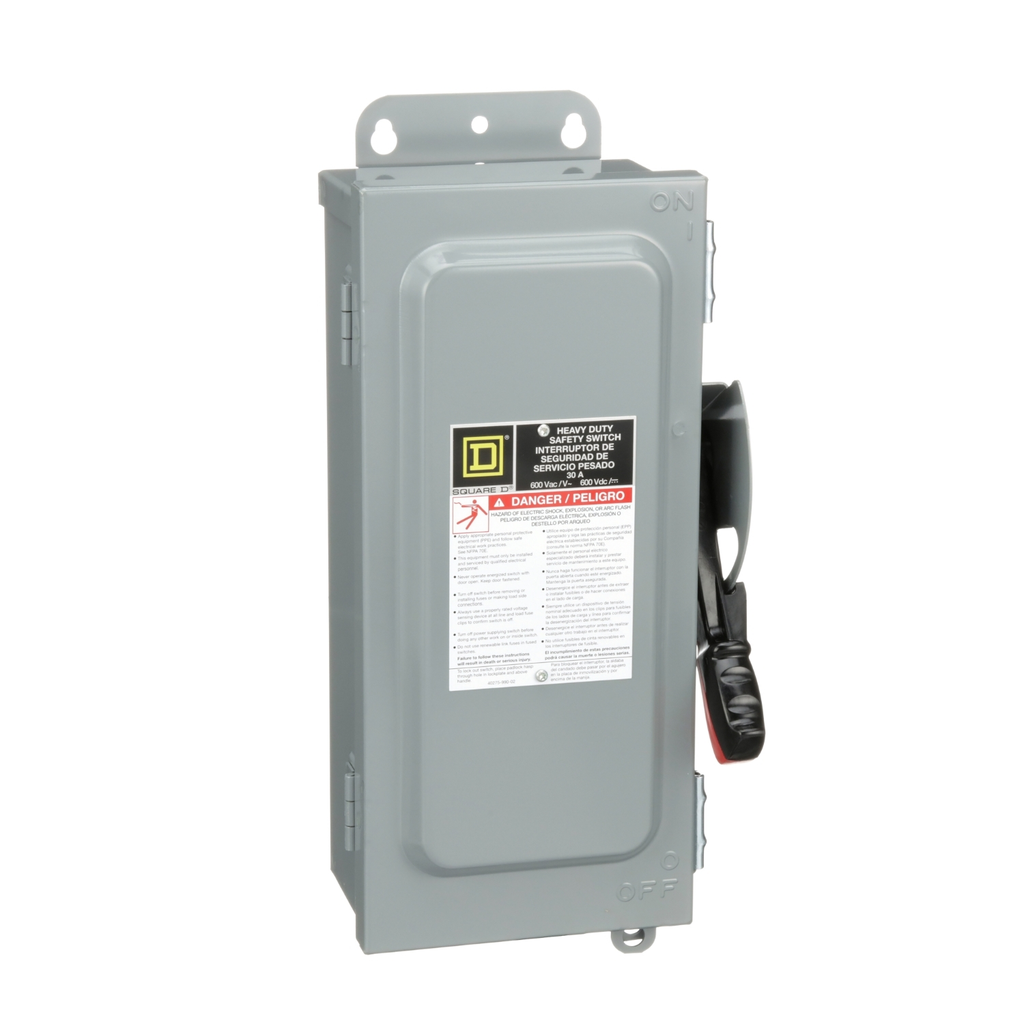

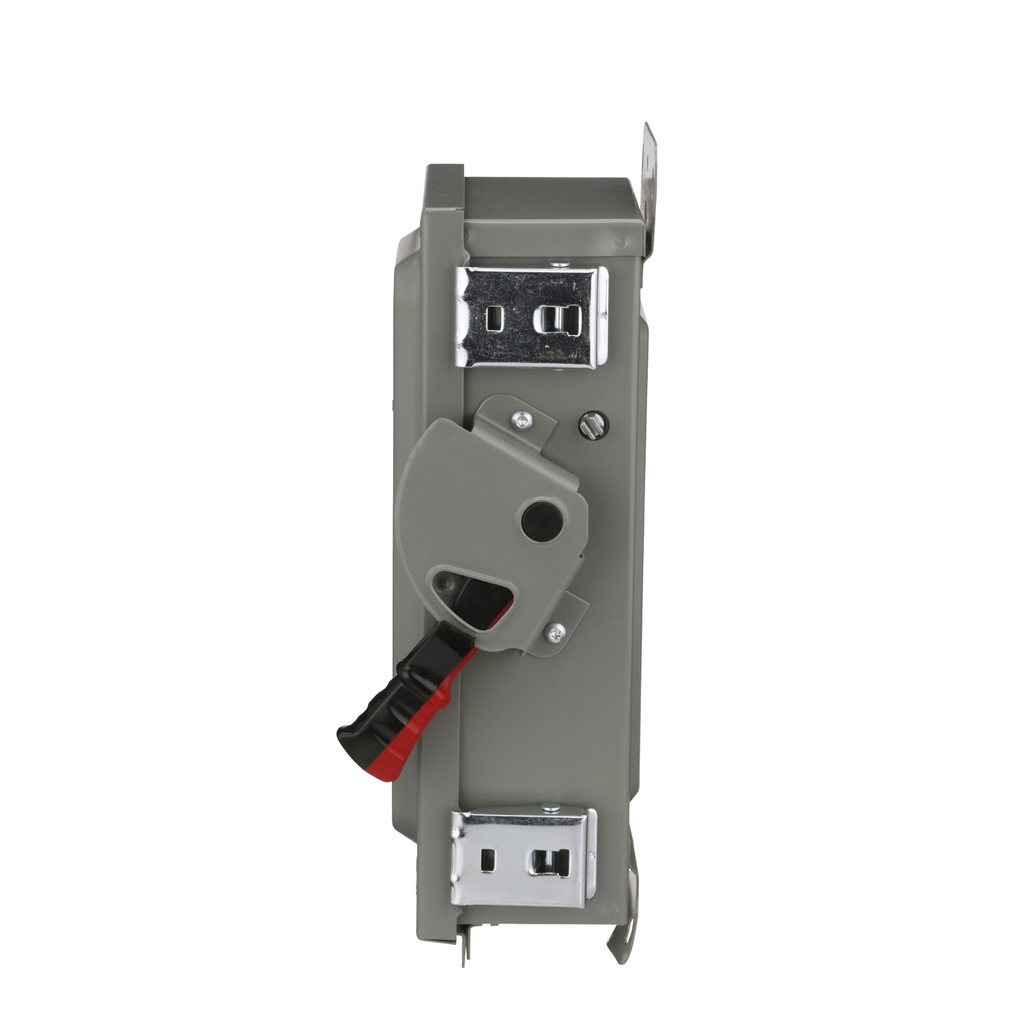

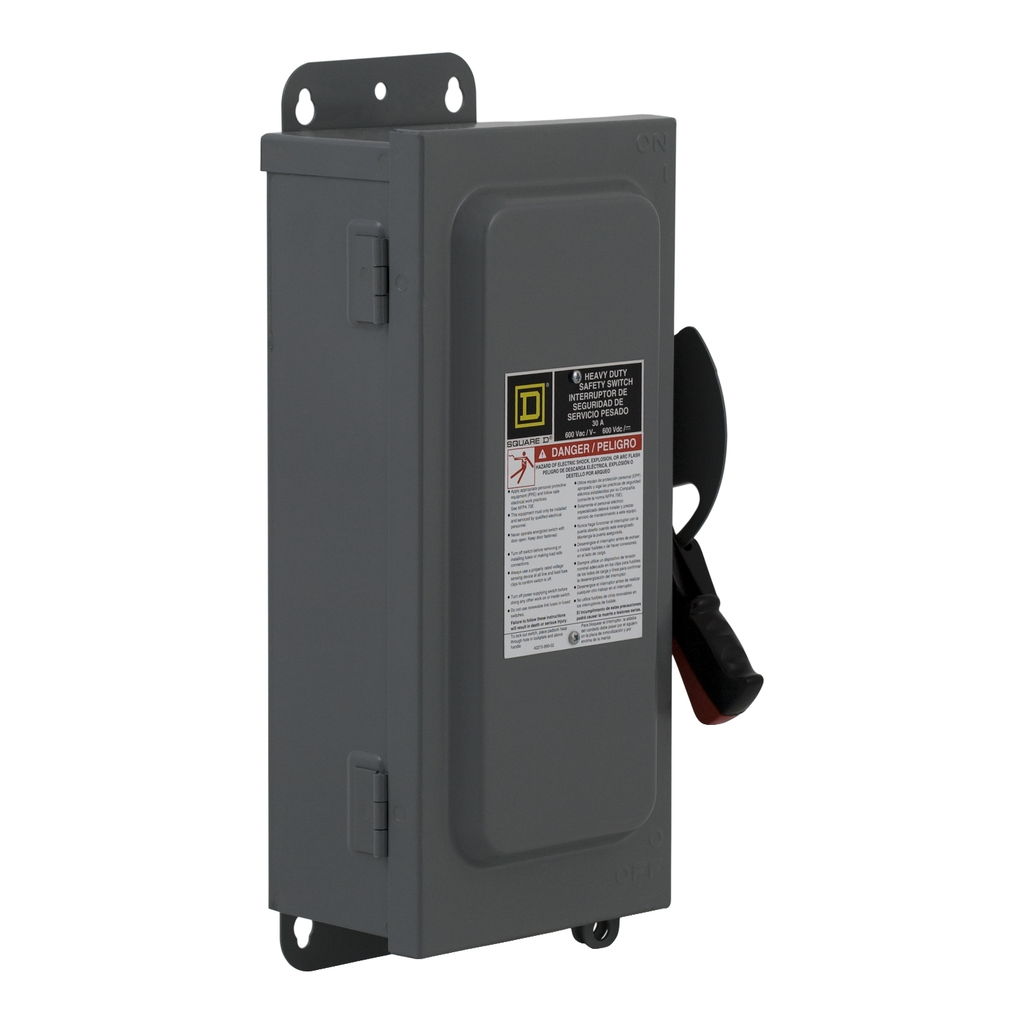

Square D HU361AWK 600 VAC 30 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU361AWK | Cooper Electric Part # 81067
$647.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 30A and is UL listed with a NEMA 3R/12 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.

Technical Information

Amperage
30 Amp
Applications
HEAVY DUTY
Conductor Size
12-6 AWG (AL)/14-6 AWG (CU)
Current
30 Amp
Duty Rating
Heavy duty
Enclosure
12,3R
Enclosure Material
Stainless Steel
Enclosure Rating
3R, 12
Line Rated Current
30 A
Material
Steel
Mounting Type
Surface
NEMA Size
12,3R
Net Weight
5 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
200 kA
Size
4.96 in
TC Connection
Lugs
Type
Non-fusible disconnect;Single Throw Safety Switch
Voltage
600 Volt
Wire Size
AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
Wire Type
AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901505716
Environmental Conditions
RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR)
GTiN
00785901505716
Product UPC
78590150571
Weight
11.02 lb

Dimensions

Depth
4.96 Inch
Height
14.6 Inch
Warranty Length
18 mth
Width
7.55 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
Motor Power Hp
  • 5 hp at 240 V AC 50-60 Hz for 1 phase motors
  • 10 hp at 240 V AC 50-60 Hz fo
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.4720950296553596
  • 0.5 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 10 kg CO2 eq.
  • 10.380862549978731
Ue Rated Operational Voltage
  • 600 V AC/DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 25 kg CO2 eq.
  • 24.618597162546592
Nema Degree Of Protection
  • NEMA 3R/12 galvannealed steel
Accessories
  • EIK031
  • EIK032
  • SN03
  • SN03C
  • GTK03C
  • SS03
  • LOGK1
  • CL0306F
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 3 kg CO2 eq.
  • 3.2480830971283483
Accessory Products
  • EIK031
  • EIK032
  • SN03
  • SN03C
  • GTK03C
  • SS03
  • LOGK1
  • CL0306F
Carbon Footprint Of The Distribution Phase A4
  • 1.3427313219426575
  • 1 kg CO2 eq.
Tightening Torque
  • 45-45 lbf.in 13.3-13.3 mm² (AWG 6)
  • 40-40 lbf.in 8.367-8.367 mm² (AWG 8)
  • 35-35 lbf.in 2.06-5.261 mm² (AWG 14...
AWG Gauge
  • AWG 12...AWG 6 aluminium
  • AWG 14...AWG 6 copper
