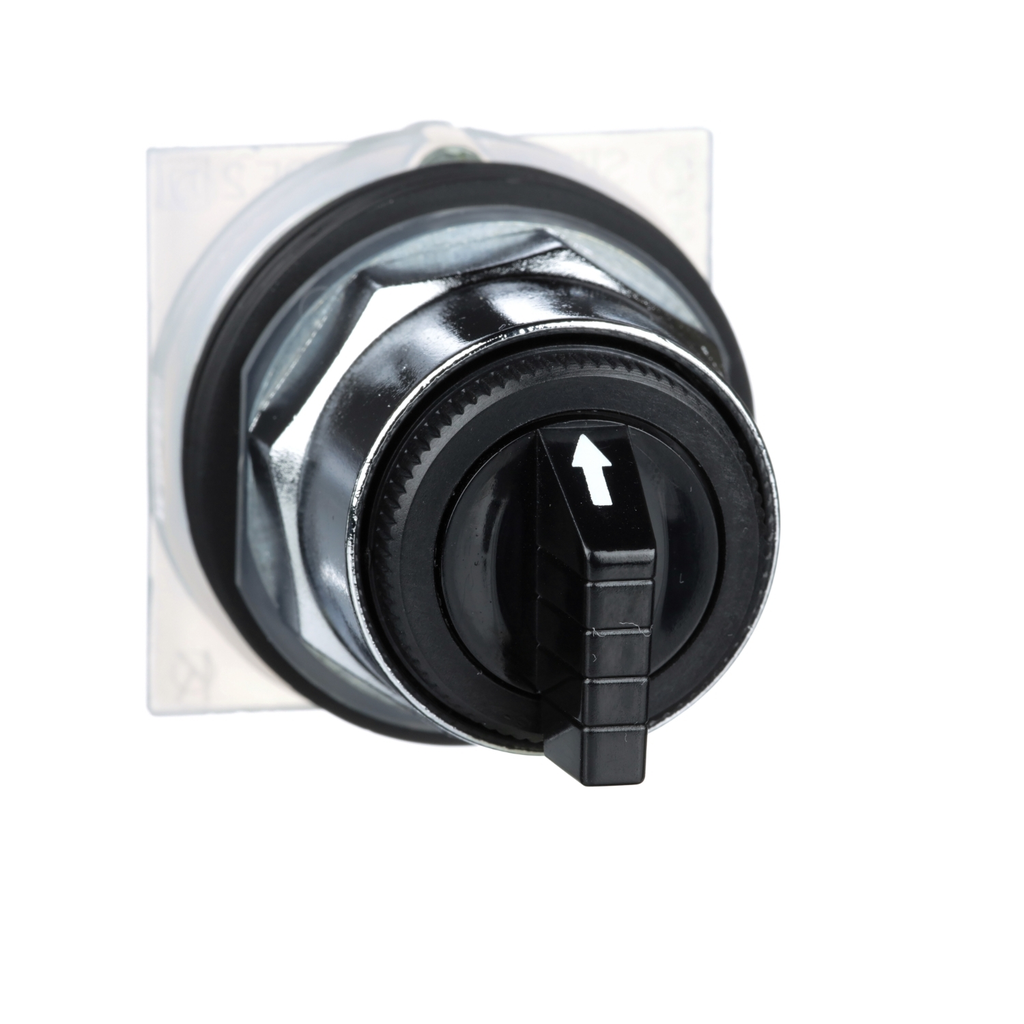

Square D 9001KS43B 30 mm 600 Volt Black Metal Bezel 3-Position Maintained Selector Switch

Manufacturer: Square-D / Schneider | Catalog # 9001KS43B | Cooper Electric Part # 81046

$58.43/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
5 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
This Harmony 9001K, black selector switch with C cam has 3 positions, operates with a stay-put mechanism. It has a chromium-plated metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Technical Information

Action
MAINTAINED
Actuator
3 positions
Applications
NON ILLUMINATED PUSH-BUTTON
Bezel Material
Metal
Contact Configuration
Without contact block
Enclosure
NEMA 1/2/3/3R/4/6/12/13
Indicator
BLACK
Size
30 mm
Type
Selector switch
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
K

General Product Info

12-Digit UPC
785901322634
Color
Black
Environmental Conditions
WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
GTiN
00785901322634
Product UPC
78590132263

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CE,CSA LR24590 Class 3211 03,UL Listed File E42259 CCN NKCR
Country of Origin
Mexico
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001KS43B_CAD&p_File_name=9001KS43B_3D.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001KS43B_CAD&p_File_name=9001KS43B_2D Front View.dwg
  • https://download.schneider-electric.com/f
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0.0009040377783440873
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.3 kg CO2 eq.
  • 0.26911895655879225
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.7 kg CO2 eq.
  • 0.6685254596119826
Accessories
  • 9001KN201
  • 9001KN202
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Accessory Products
  • 9001KN201
  • 9001KN202
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.06626459368163747
  • 0.1 kg CO2 eq.
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Operator Profile
  • black standard knob
