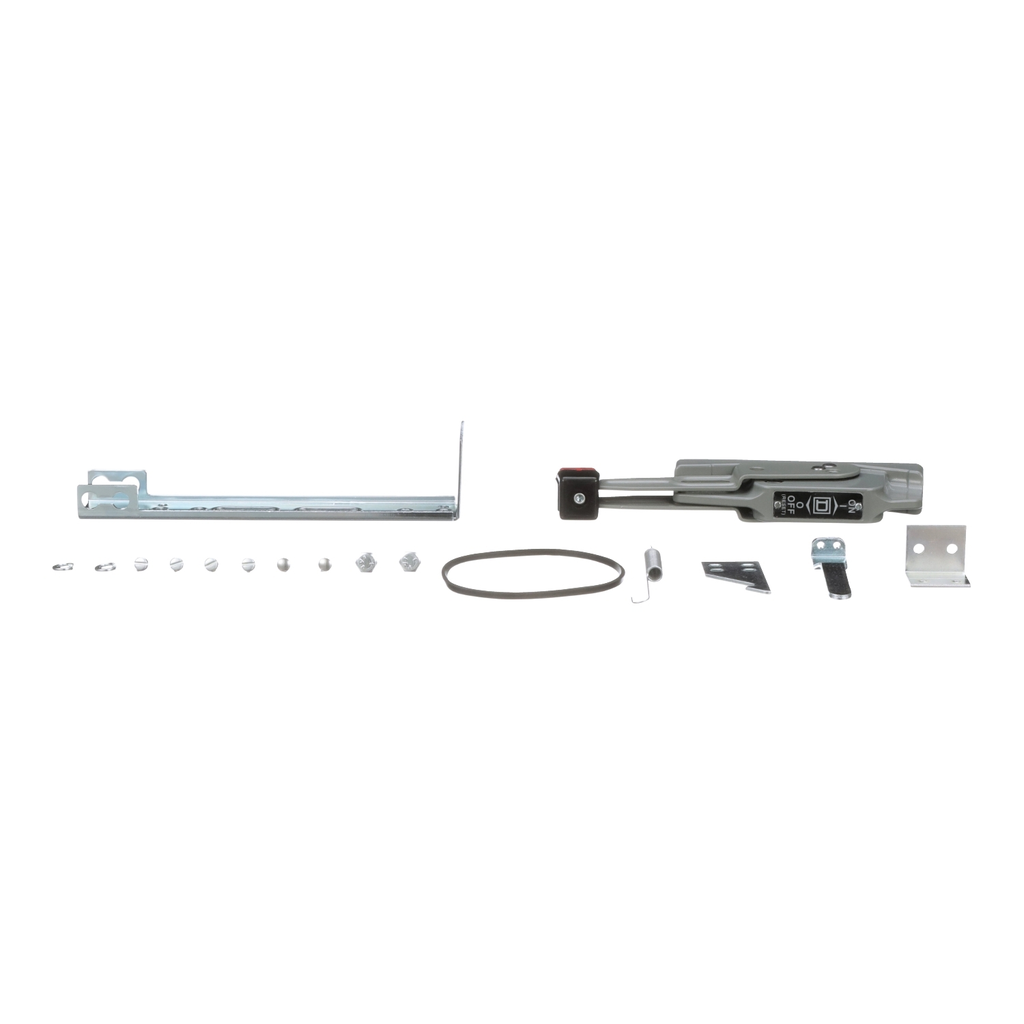

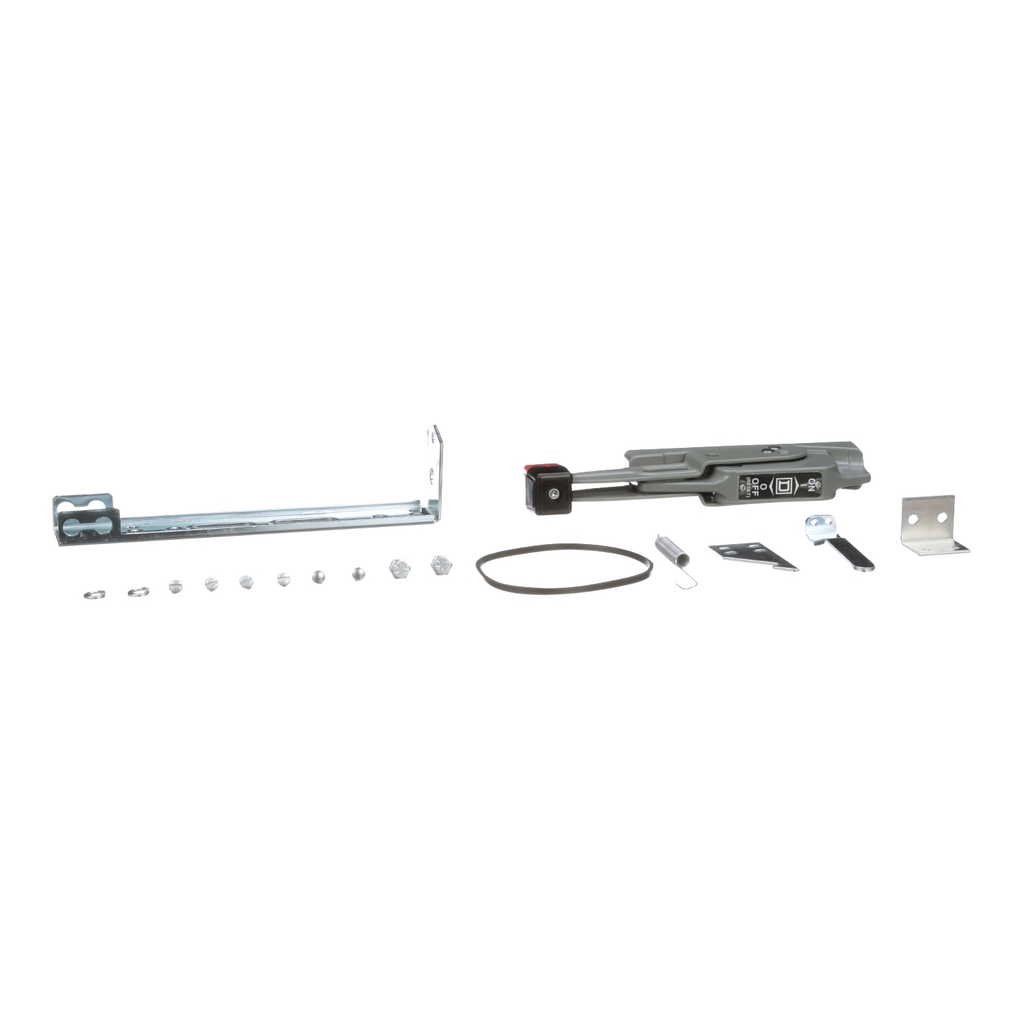

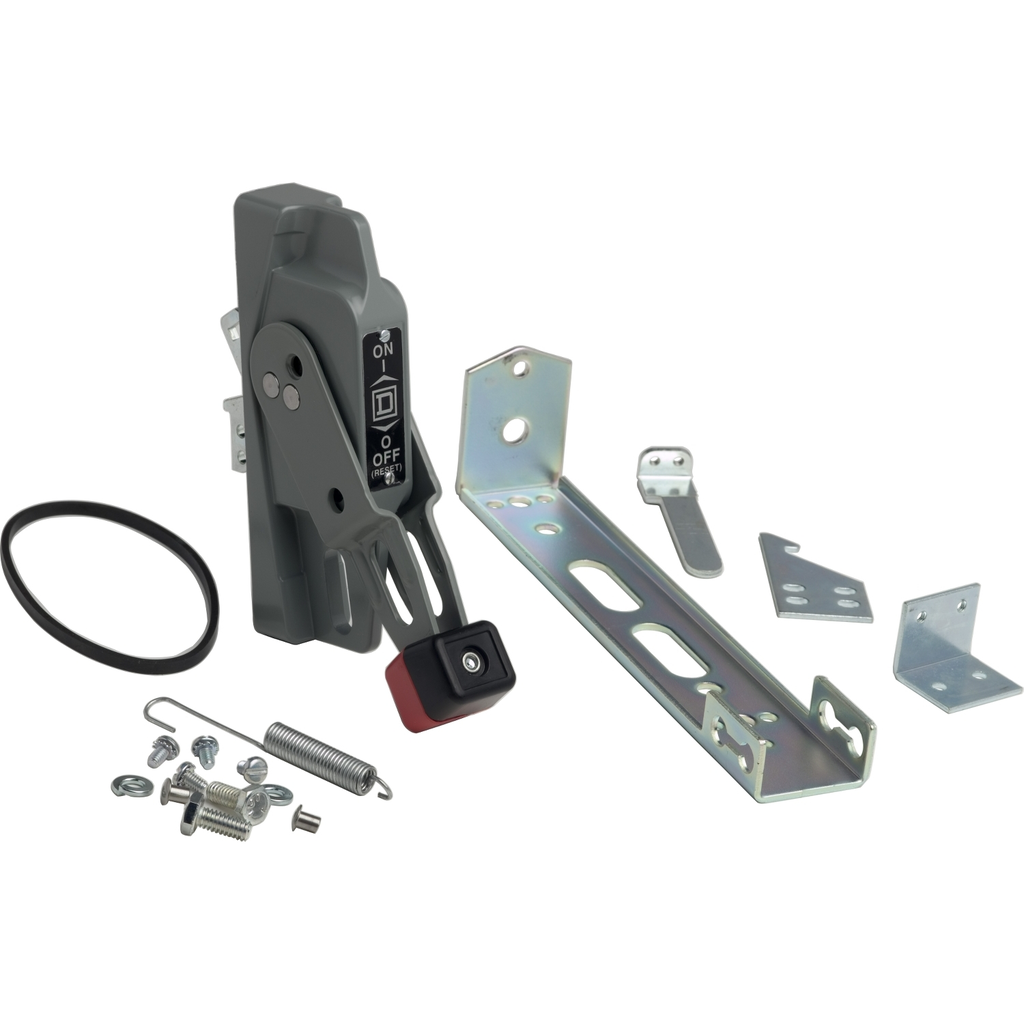

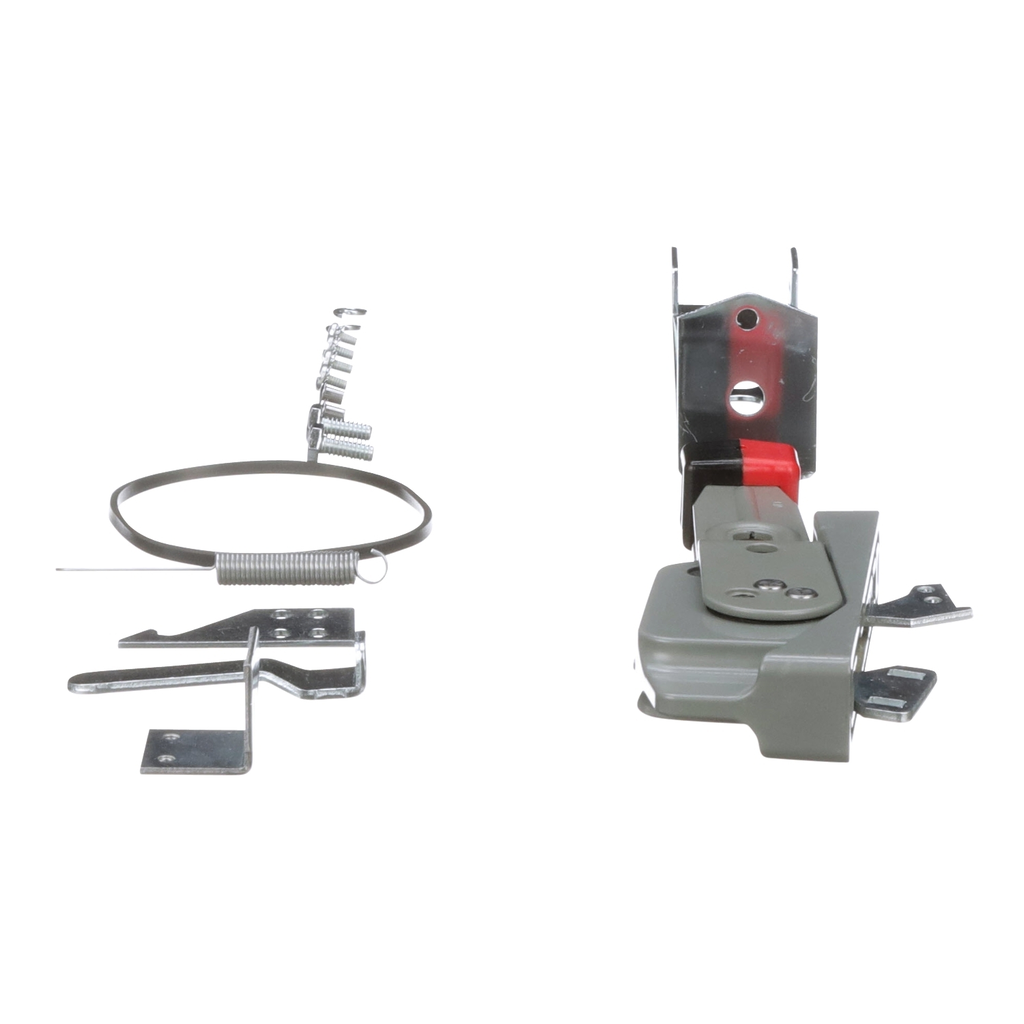

Square D 9422A1 NEMA Operating Mechanism Handle

Manufacturer: Square-D / Schneider | Catalog # 9422A1 | Cooper Electric Part # 81039
$184.39/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
3 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 1/3/3R/4/12. This handle is for use with 30-200A 9422 switches and all circuit breaker mechanisms. This product complies with UL standards.

Technical Information

Actuator
6 INCH HANDLE
Applications
NEMA 1/3/3R/4/12 enclosures;Disconnect switches (30...200 A);All circuit breaker mechanisms
Enclosure
NEMA 1/3/3R/4/12
Indicator
OFF/ON
Net Weight
1.26 kg
Size
6 in
TC Connection
FLANGE MOUNT
Type
Handle Mechanism

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901739739
GTiN
00785901739739
Product UPC
78590173973
Weight
1.26 kg

Dimensions

Length
6 Inch
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
