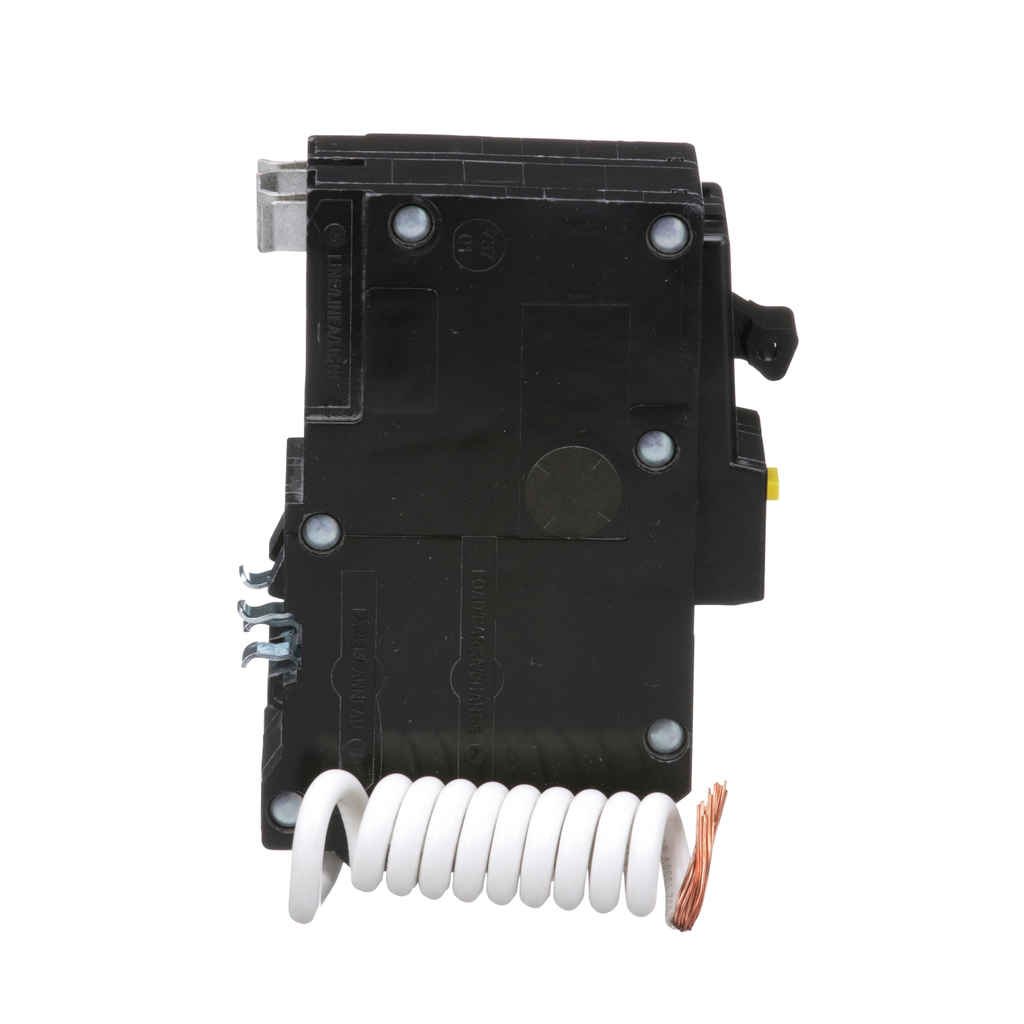

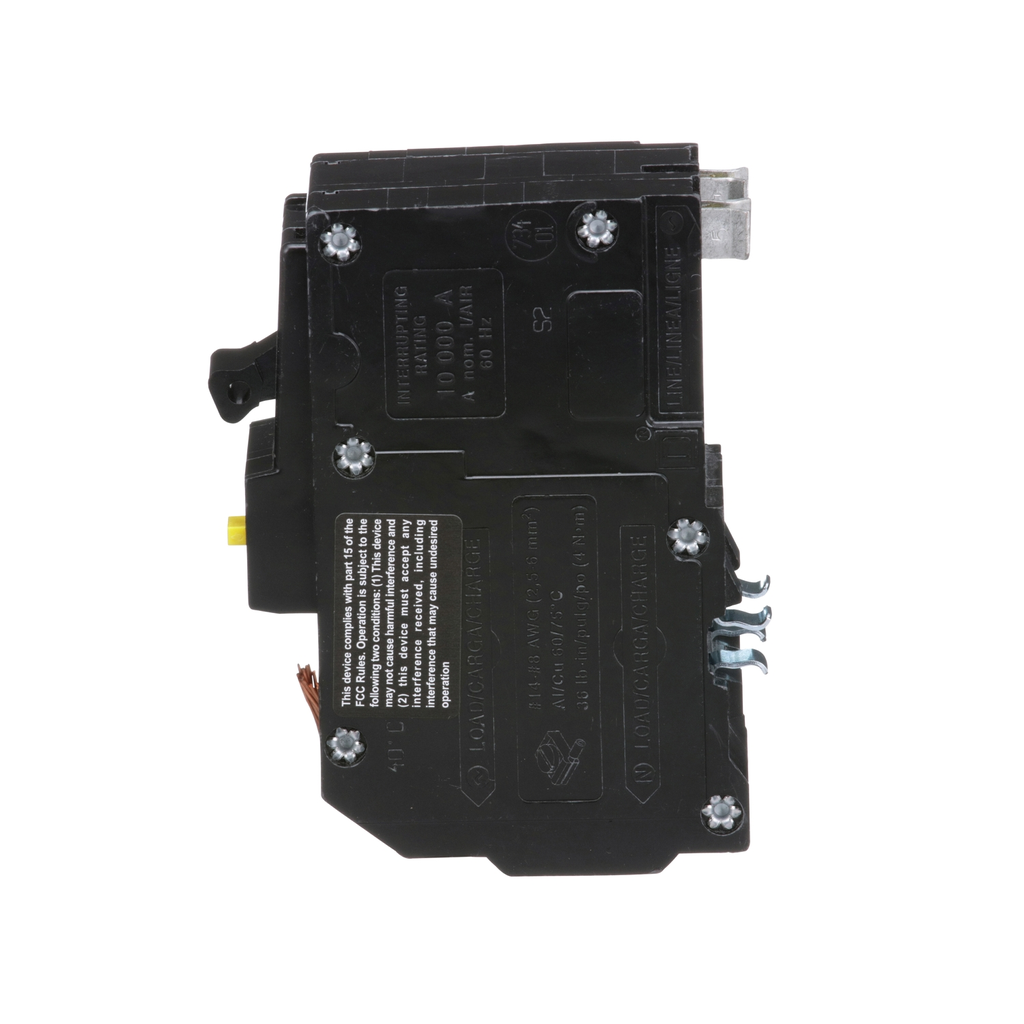

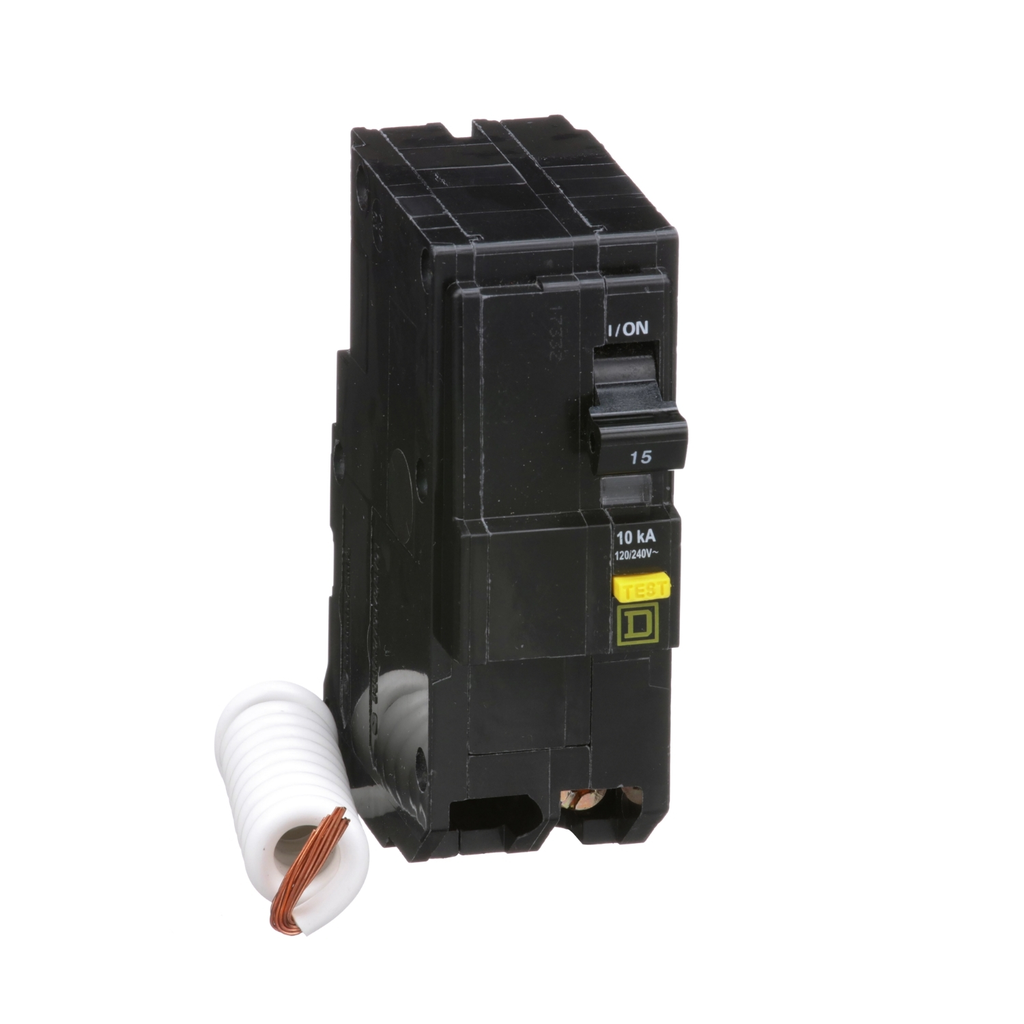

Square D QO215GFI Miniature Circuit breaker w/GFI 15A 120/240V 2P , Plug-On

Manufacturer: Square-D / Schneider | Catalog # QO215GFI | Cooper Electric Part # 80901
$413.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3
Plug-In Neutral Pigtail Neutral
1 available

For Pick Up

at Ocean Opens Monday 7:00am ET
10 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Technical Information

Amperage
15 Amp
Applications
Not rated
Circuit Breaker Type
Ground Fault Protecting Class A 6 MA
Conductor Size
12-8 AWG (AL)/14-8 AWG (CU)
Current
15 Amp
Interrupt Rating
10 kAIC
Line Rated Current
15 A
Mounting Type
Plug-in
Net Weight
0.431 kg
Number of Poles
2 Pole
Operating Temperature
40 Adegrees C
Short Circuit Current
10 kA
TC Connection
Pressure plate
Type
Miniature circuit-breaker
Voltage
120 Volt
Wire Size
AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901562986
GTiN
00785901562986
Product UPC
78590156298
Weight
0.431 kg

Dimensions

Depth
74 mm
Height
105 mm
Length
2.91 Inch
Warranty Length
18 mth
Width
38 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
