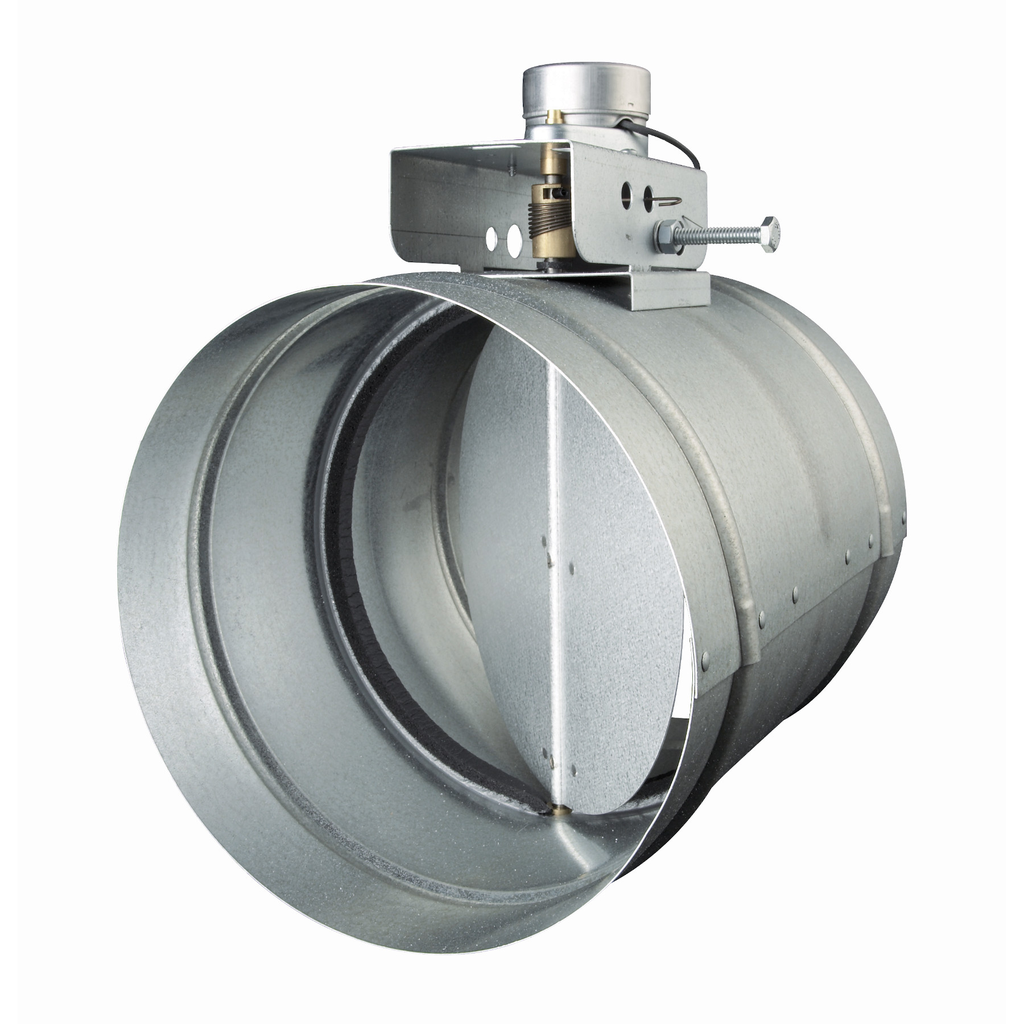

Product image for BROAN MD6TU 6" Universal automatic
Image thumbnail 0
Image thumbnail 1

Email

BROAN MD6TU 6" Universal automatic

Manufacturer: Nutone | Catalog # MD6TU | Cooper Electric Part # 807040

$252.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Designed to provide the best technology to equalize pressure between indoors and outdoors, while providing effective ventilation for a cleaner, healthier home. Eliminate gases, smoke or particulates generated from naturally vented combustion devices like a fireplace or water heater. Only Broan® offers such a complete and simple solution for automatic and controlled fresh air into the home every time you turn on the range hood! This is an interlocked, synchronized system that installs easily and requires only low voltage wiring to the sensor. Perfect for new construction or retrofit into an existing home.

Technical Information

Material
Steel
Type
Make-Up Air Damper

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715203789
Color
Galvanized
GTiN
00026715203789
Product UPC
02671520378

Dimensions

Height
9 Inch
Length
6 Inch
Width
10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Interlocked make-up air dampers provide outside air when required to keep the air in the home fresher by allowing the range hood to operate at optimum levels
  • Universal design works with any select range hood to balance indoor air pressure by providing interlocked make-up air without requiring a direct wire connection between the range hood and the damper. Instead a sensor is attached to the exhaust duct to detect if the range hood is operating
  • Slave dampers (MD6S, MD8S or MD10S) are interlocked to the main automatic or universal make-up air damper and open in unison for synchronized operation. They close, along with the main damper, as soon as the range hood is powered off. Slave dampers can be ganged together to provide a cost effective means to provide for higher volumes of make-up air
  • Interlocked make-up air damper systems meet IRC Code requirements for make-up air with range hoods over 400 CFM
  • Interlocked make-up air systems avoid wasted energy associated with barometric solutions and do not let unwanted air into the home during heating or cooling activities so air pressure is equalized for a well-balanced environment
  • Fresh air wall caps are required for use with Make-Up Air Dampers
  • Universal design works with any range hood
  • Balances indoor air pressure to keep home fresher
  • Meets IRC Code requirements for make-up air in hoods over 400 CFM
