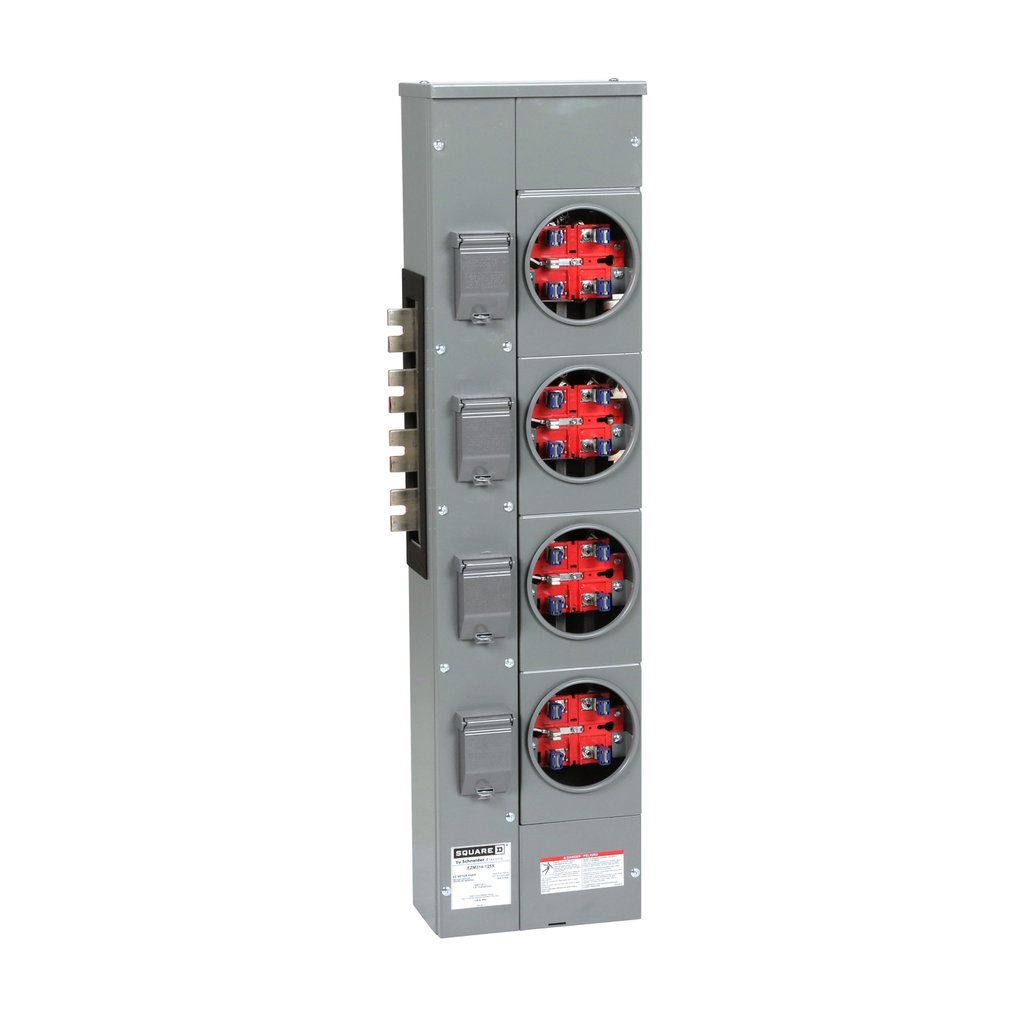

Square D EZM314125X 208 Star/120 VAC 125 Amp 3-Phase 4-Wire Ring Meter Center Branch Unit

Manufacturer: Square-D / Schneider | Catalog # EZM314125X | Cooper Electric Part # 806678
$958.03/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 125A. It has 4 five jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Technical Information

Amperage
125 Amp
Bus Rating
1200 A
Current
125 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Line Rated Current
125 A
Material
Aluminium/copper: Busbar
Mounting Type
Surface
NEMA Size
3R
Net Weight
27.400 kg
Number of Jaws
5 Without Jaw Release
Number of Phases
1,3 Phase
Size
48.12 in
Type
Ringed;Meter Center Branch Unit
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
METER-PAK

General Product Info

12-Digit UPC
785901373780
GTiN
00785901373780
Product UPC
78590137378
Weight
27.400 kg

Dimensions

Depth
180 mm
Height
1222 mm
Warranty Length
18 mth
Width
311 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 29007
  • 5J
  • EZM125QOA
  • EZM3CORNER
  • EZM3ELBOW
  • EZM3EXT
  • EZM3EXT6
  • EZM3TRANL
  • EZM3TRANR
  • EZM72MC
  • EZMCAP
  • EZMSCAP
  • RSG4
