Burndy TP168 Copper Terminal, Ring Tongue, 22-16 AWG, #6-#8 Stud, Vinyl Insulated, Tin Plated

Manufacturer: Burndy | Catalog # TP168 | Cooper Electric Part # 806084
$115.23/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
Copper Terminal, Ring Tongue, 22-16 AWG, #6-#8 Stud, Vinyl Insulated, Tin Plated.

Technical Information

Applications
Commercial and Light-Duty Industrial Control and Power Circuit Applications
Cable Size
22 - 16 AWG
Color Coding
Red
Conductor Size
16 AWG
Connection Type
Ring Terminal
Insulation Material
Vinyl
Insulation Type
Vinyl
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Stud Size
0.138-0.164 in
Type
Ring Tongue
Voltage
600 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Vinylug™

General Product Info

12-Digit UPC
781810714645
GTiN
00781810714645
Product UPC
78181071464

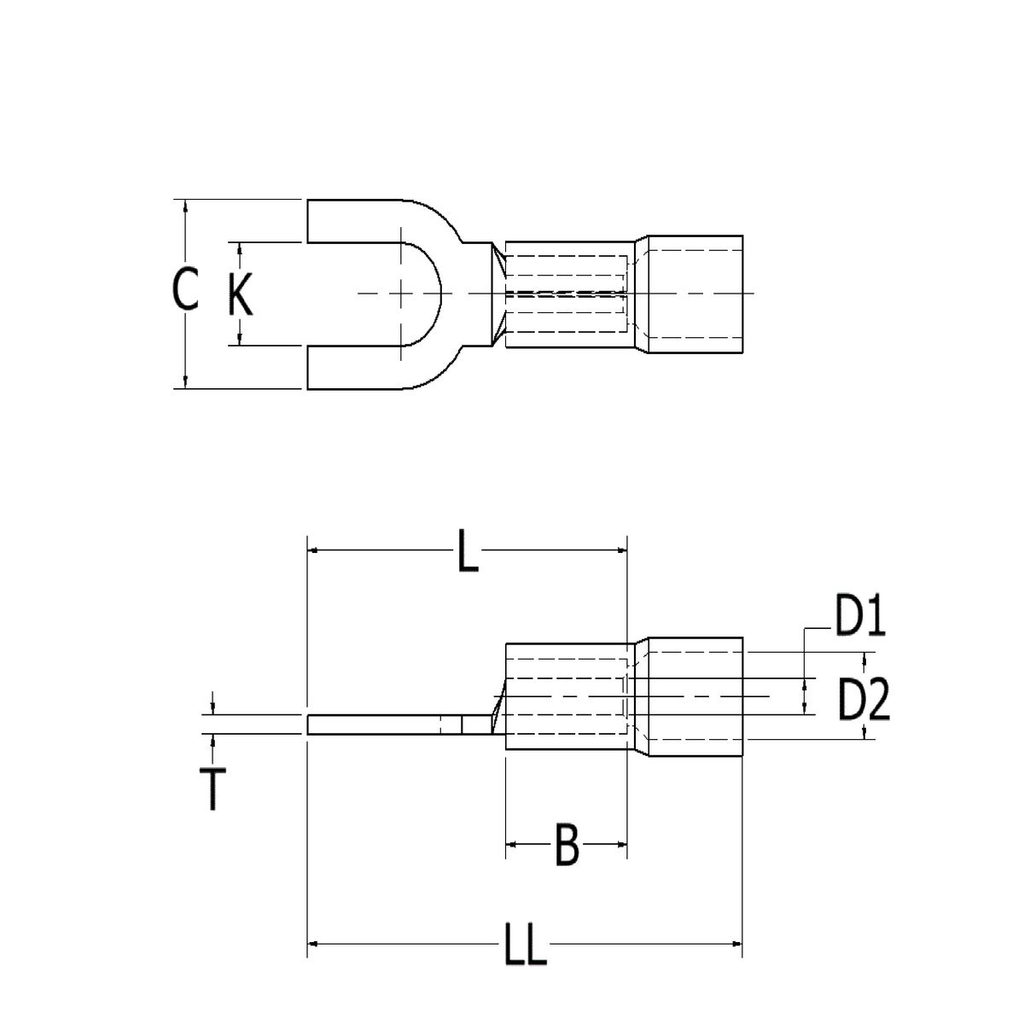

Dimensions

Height
0.16 Inch
Length
0.85 Inch
Overall Length
22 mm
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Expanded insulation support accepts standard and large wire diameters providing lower inventory requirements and greater flexibility
  • Funnel entry for easy wire insertion
  • Manufactured of pure electrolytic copper to provide maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Deep V groove serrations in the inner barrel provides added holding strength and better conductivity
