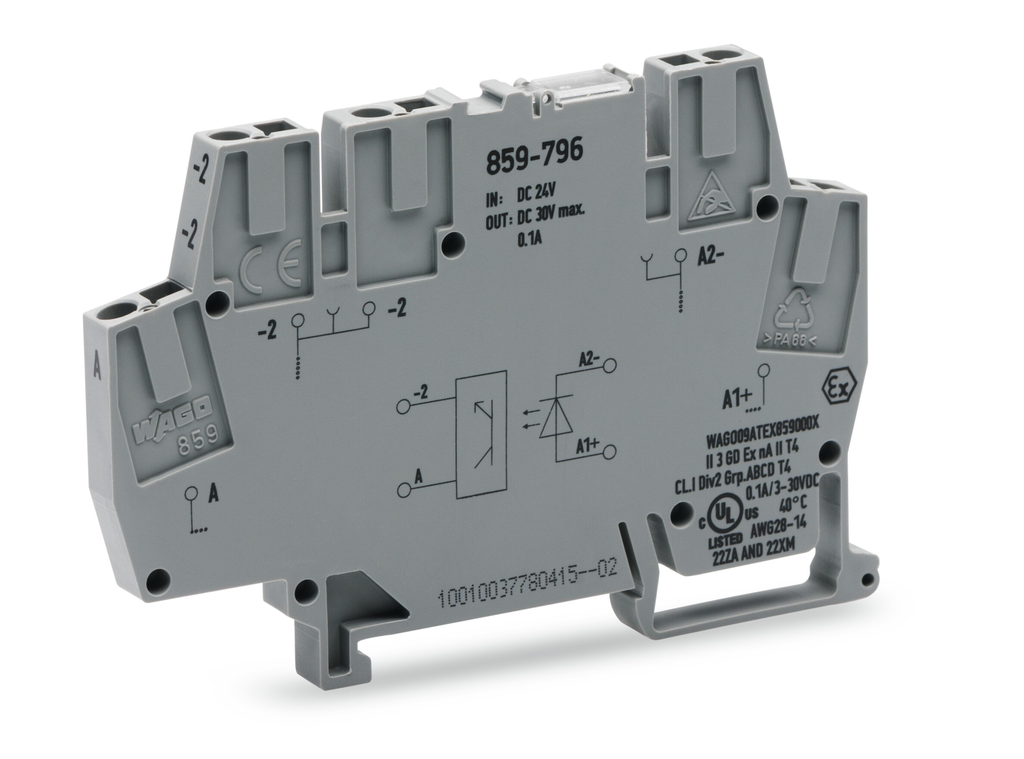

Product image for WAG 859-796 OPTOC. 6MM 24/5-24V 100MA 2L. 10KH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

WAG 859-796 OPTOC. 6MM 24/5-24V 100MA 2L. 10KH

Manufacturer: Wago | Catalog # 859-796 | Cooper Electric Part # 806049
$80.18/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

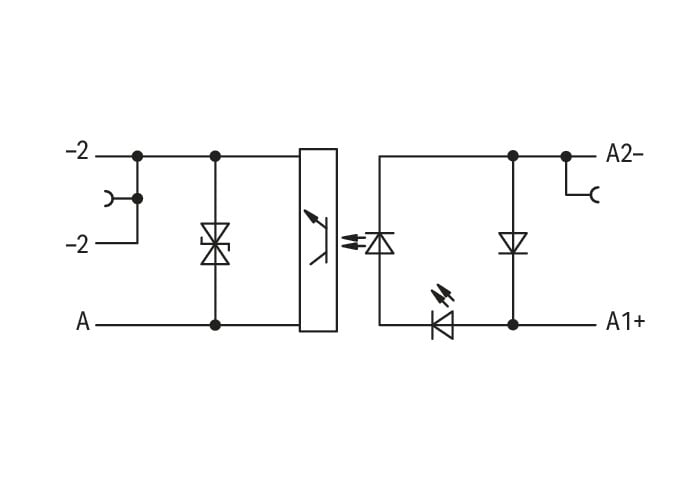

Grey Optocoupler Module with 24 VDC nominal input voltage, 3 to 30 VDC output voltage range, 0.1 A limiting continuous current, 2-wire connection; railway; 10 kHz frequency, 6 mm module width.

Technical Information

AT Rated Voltage
300 V
Conductor Size
14 AWG
Mounting Type
DIN-35 Rail
Strip Length
0.24 in
Voltage
300 Volt

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
044918111588
Color
Gray
Product UPC
04491811158
Weight
17.968 g

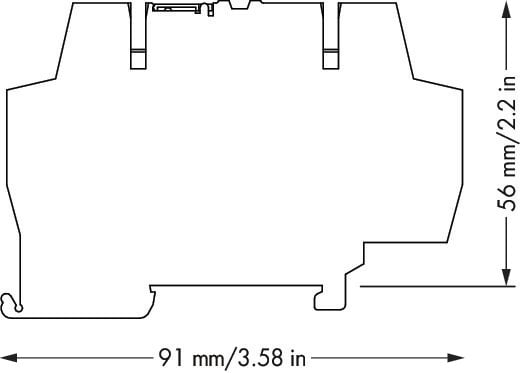

Dimensions

Depth
3.583 Inch
Height
3.583 Inch
Width
0.236 in

Certifications and Compliance

Country of Origin
China
Approvals
  • Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
  • UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
  • WAGO GmbH & Co. KG, UKEx, WAGO22UKEX007X_ec, EN 60079-0
  • Brjansker Zertifizierungsstelle, EAC, EAC_Certificate_RU_C-DE.AM02.B.00115_19, TP TC 020/2011
  • CNEX, CCC, 2021312304000982, CNCA-C23-01
