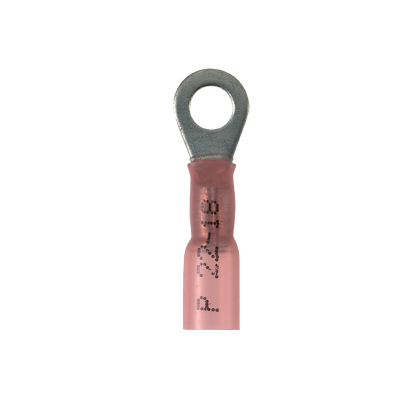

Product image for Panduit PH18-10R-Q Pan-Term® Heat Shrink Ring Terminal
Email

Panduit PH18-10R-Q Pan-Term® Heat Shrink Ring Terminal

Manufacturer: Panduit Corp | Catalog # PH18-10R-Q | Cooper Electric Part # 805629
$290.74/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
Heat Shrink Ring Terminal 22 – 18 AWG, #10 stud size.

Technical Information

Barrel Length
0.25 in
Barrel Type
Brazed Seam
Color Coding
Red
Conductor Size
22-18 AWG
Enclosure
ring shaped
Material
Copper
Max Operating Temperature
125 degrees C
Size
#10
TC Connection
Standard
Temperature Rating
230 F
Tongue Width
7.9 mm
Type
Ring Terminal
Voltage
600.0
Wire Size
18 AWG

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983818020
Color
Red
Finish
Tin Plated
GTiN
00074983818020
Product UPC
07498381802
UNSPSC
39121409

Dimensions

Overall Length
1.08 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
