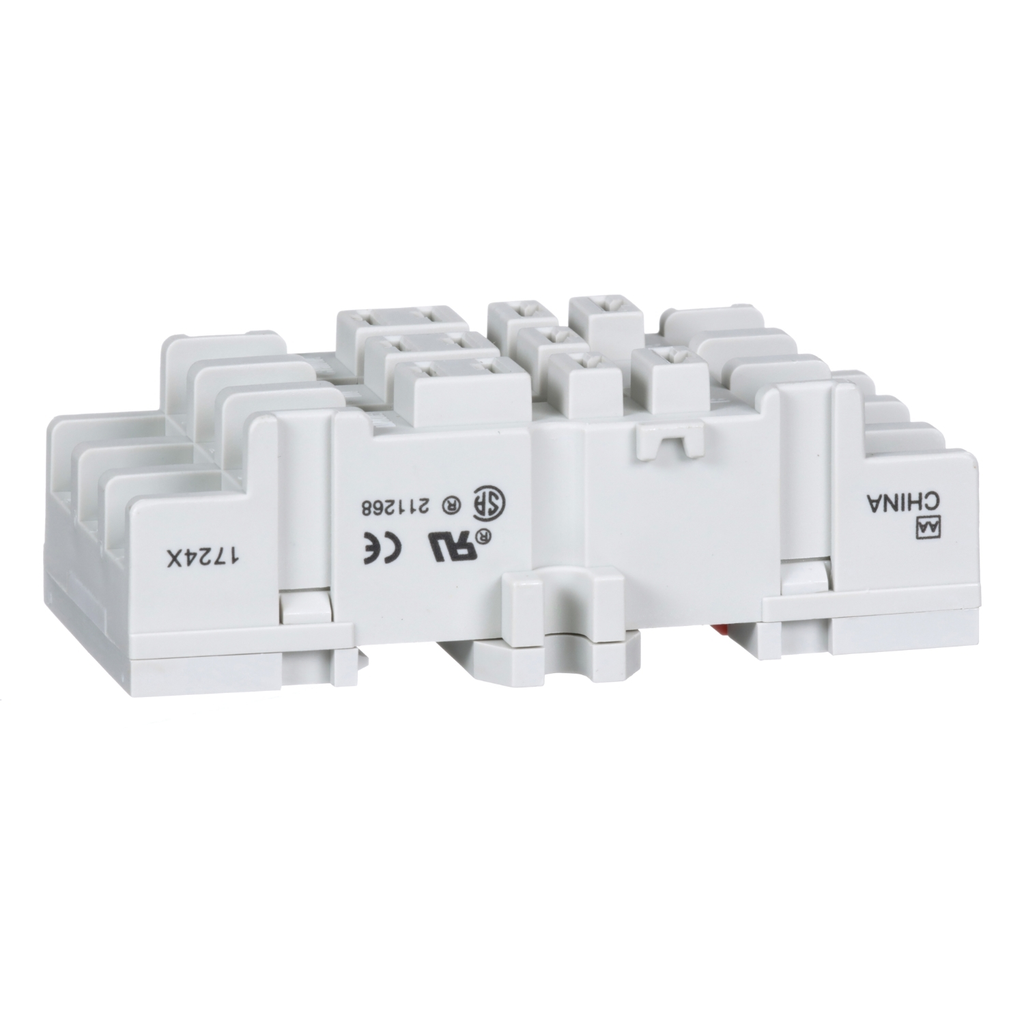

Square D 8501NR82 300 VAC 15 Amp Din Rail/Direct Panel Mount Double Tier Relay Socket

Manufacturer: Square-D / Schneider | Catalog # 8501NR82 | Cooper Electric Part # 80532
$29.82/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
2 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KUR and 8501KUDR relays will plug into this relay socket which is designed for 11 spade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Technical Information

Amperage
15 Amp
Line Rated Current
15 A
Mounting Type
DIN Rail,Panel
Number of Pins
11
Type
RELAY SOCKET

Packaging

Pkg Qty
1 NULL

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901583868
GTiN
00785901583868
Product UPC
78590158386

Dimensions

Depth
1.02 in
Height
3.15 in
Warranty Length
18 mth
Width
1.69 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CE,CSA,UL Recognized
Country of Origin
China
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005614_3D-CAD&p_File_name=MCADID0005614_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005614_3D-CAD&p_File_name=mcadid0005614_3d-simplified_2D-back.dwg
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0.0005120329
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.0998349044
Related Products
  • 9080MH312
  • 8501KUDR12P14V53
  • 8501KUDR12V53
  • 8501KUDR13V53
  • 8501KUR12P14V20
  • 8501KUR12V20
  • 8501KUR13P14V20
  • 8501KUR13V14
  • 8501KUR13V20
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.4 kg CO2 eq.
  • 0.4226894448
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Line Rated Current
  • 15 A 300 V AC
Accessory Products
  • 8501NH82
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.0083040088
  • 0 kg CO2 eq.
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Compare
