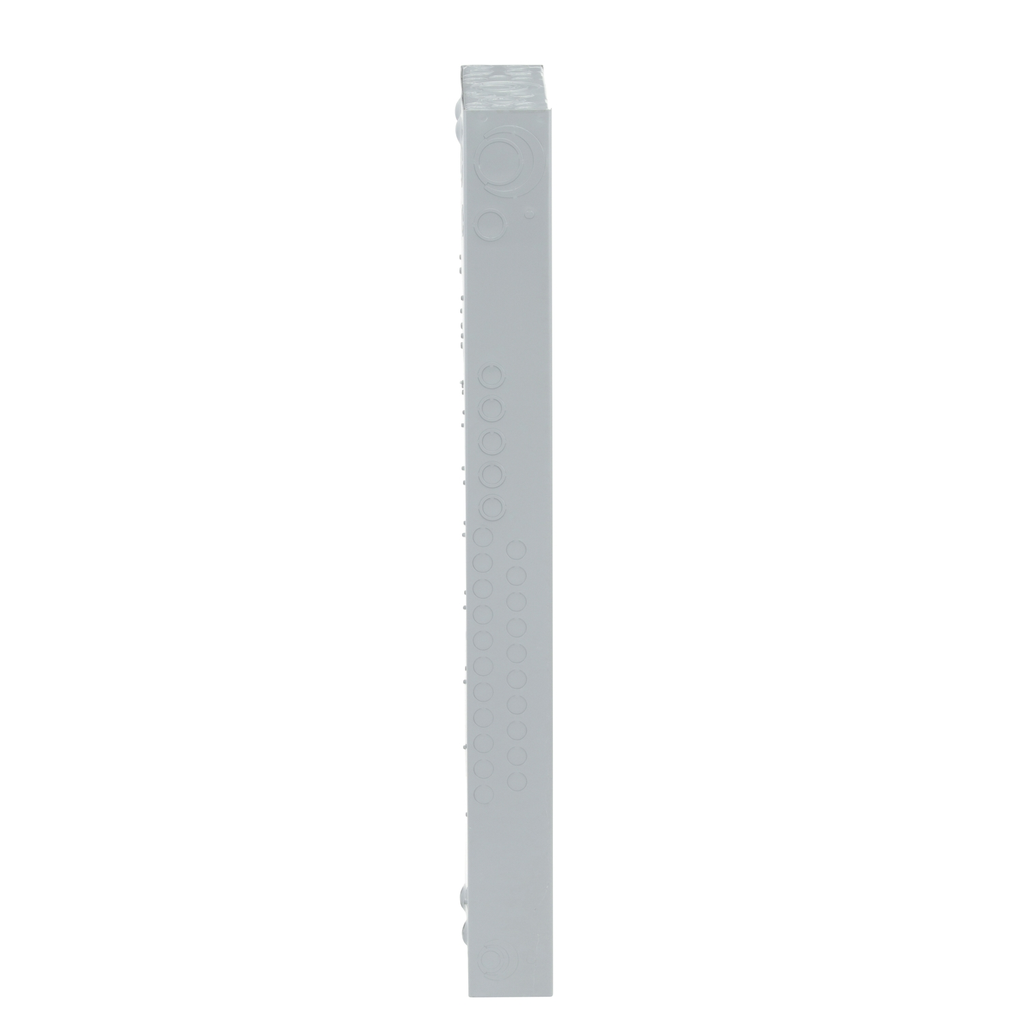

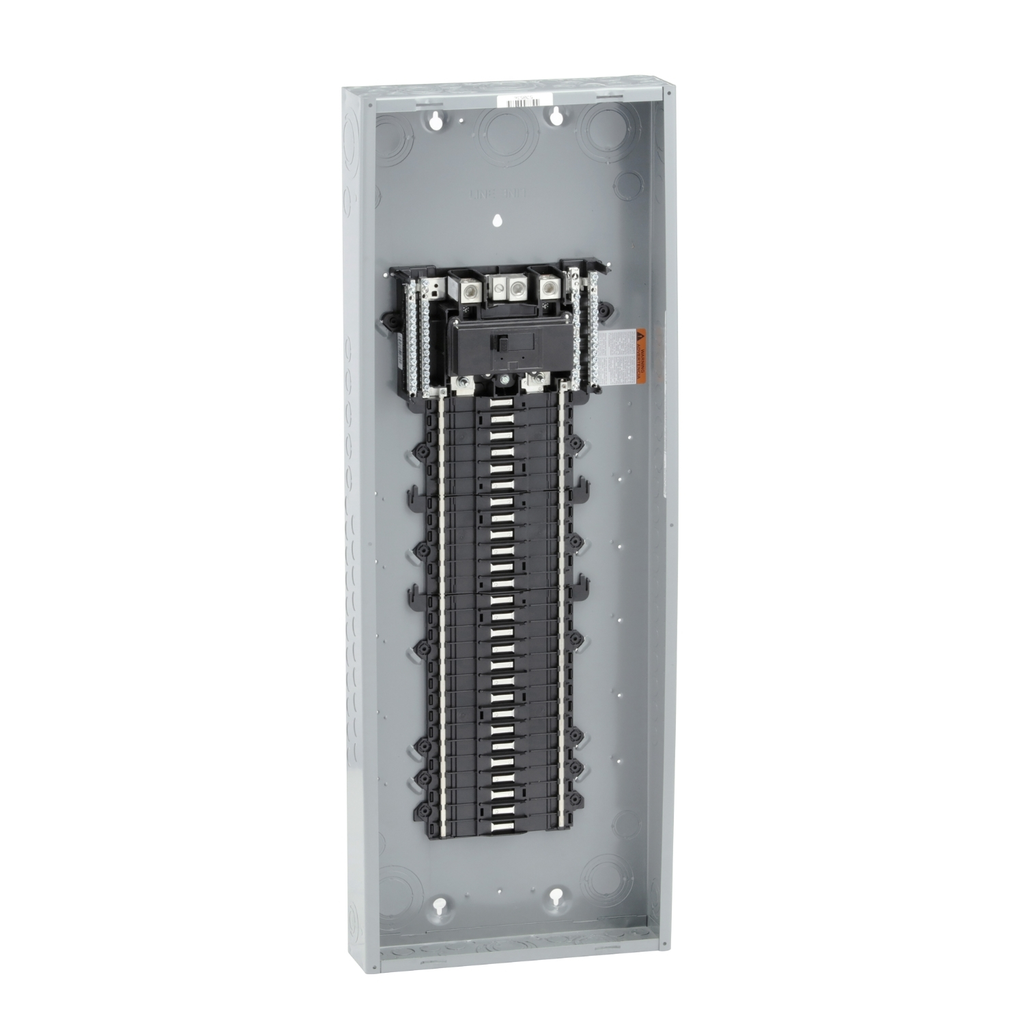

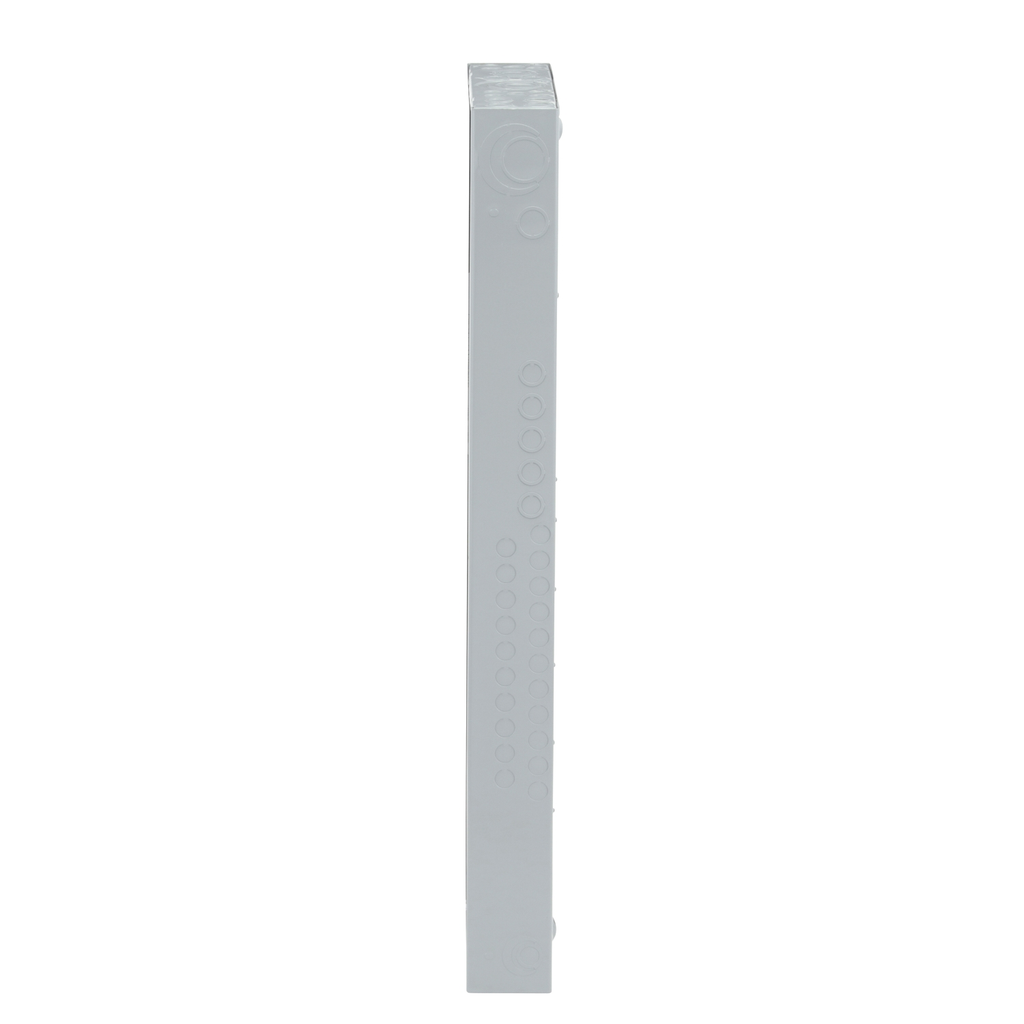

Square D QO154M200P 200A 120/240V 1phase Convertible Main Breaker Load Center, Plug-On Neutral, 54 Spaces / 72 Circuits, NEMA-1, Gray

Manufacturer: Square-D / Schneider | Catalog # QO154M200P | Cooper Electric Part # 805058
$1,496.60/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Single Three
Main Breaker Main Lug
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
29 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
QO® Circuit Breaker Load Centers, QO154M200P, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Technical Information

Amperage
200 Amp
Applications
RESIDENTIAL
Cable Size
AWG 4...250 KCMIL ALUMINIUM/COPPER
Circuit Breaker Type
QO
Conductor Size
4 AWG-250 kcmil
Cover Type
Order Separately
Current
200 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
22 kAIC
Line Rated Current
200 A
Material
Tin Plated Copper: Busbar
NEMA Size
1
Number of Circuits
54
Number of Phases
1,3 Phase
Number of Spaces
54
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Surface Finish
Baked Enamel Gray
Type
LOAD CENTER
Voltage
120/240 Volt
Wire Size
AWG 4...250 kcmil aluminium/copper

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901377443
Finish
Baked Enamel
GTiN
00785901377443
Product UPC
78590137744

Dimensions

Height
1000 mm
Warranty Length
18 mth
Width
362 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
