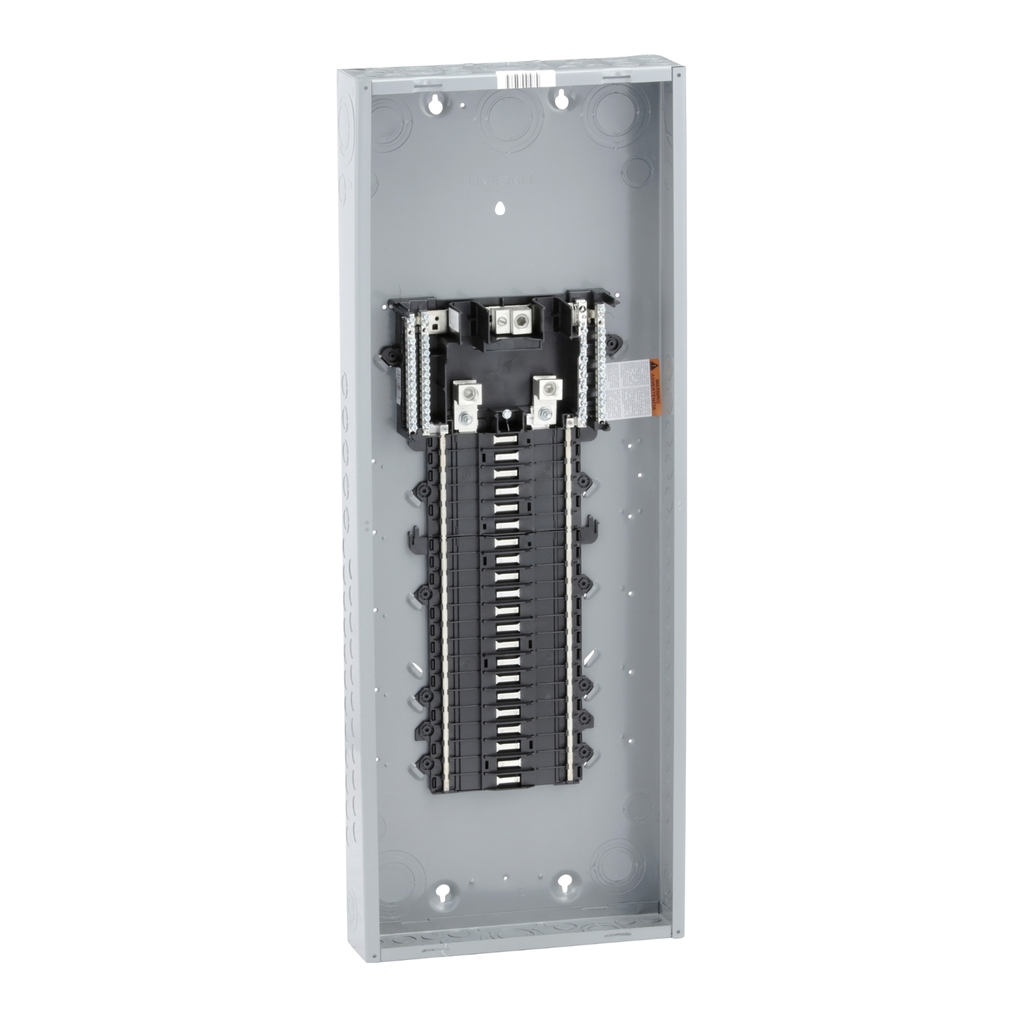

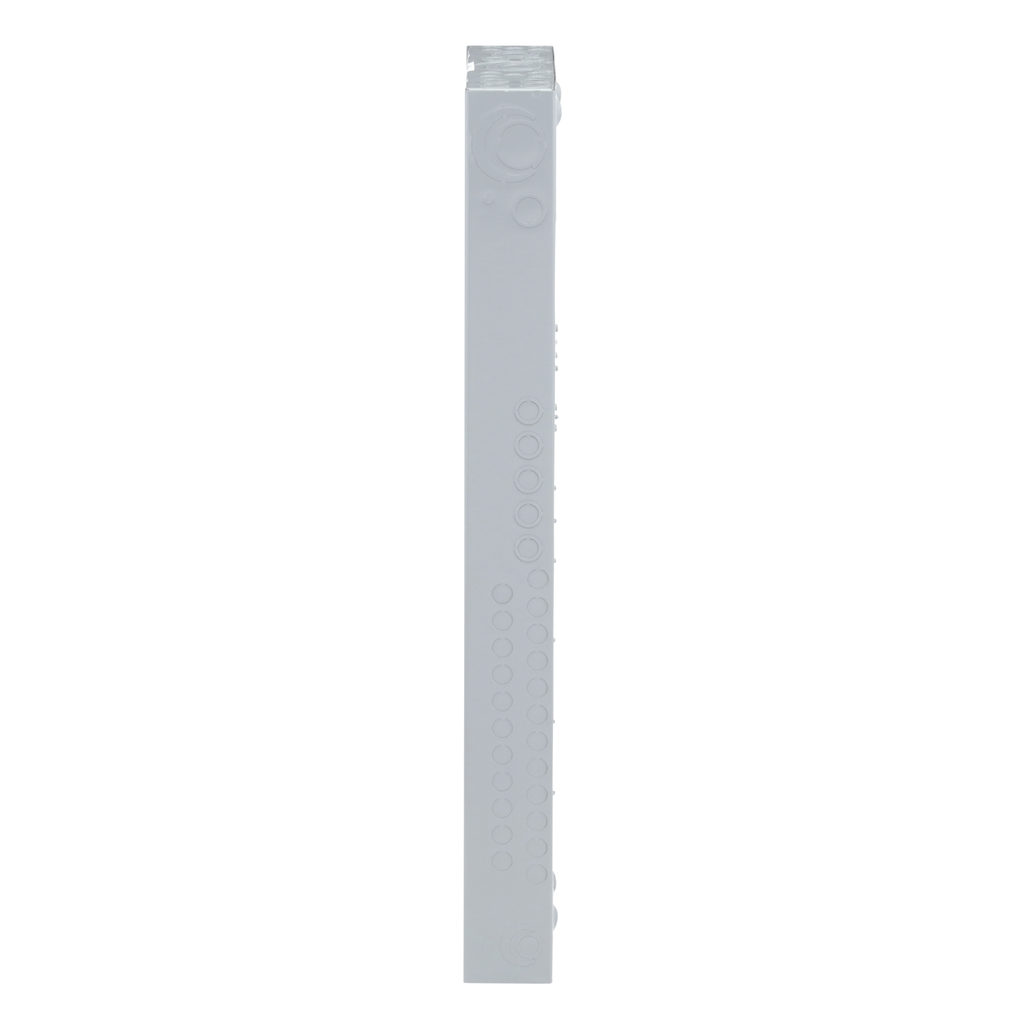

Square D QO142L225PG Load Center QO 225A 120/240V 1Ph 42SP NEMA-1 , Plug-On Neutral

Manufacturer: Square-D / Schneider | Catalog # QO142L225PG | Cooper Electric Part # 805054
$979.56/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Single Three
Main Breaker Main Lug
1 available

For Pick Up

at Ocean Closes 5:00pm ET
106 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO® Circuit Breaker Load Centers, QO142L225PG, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Technical Information

Amperage
225 Amp
Cable Size
6 AWG-300 KCMIL (ALUMINUM/COPPER)
Circuit Breaker Type
QOM2
Conductor Size
6 AWG-300 kcmil
Cover Type
Order Separately
Current
225 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
65 kAIC
Line Rated Current
225 A
Material
Tin Plated Copper: Busbar
NEMA Size
1
Number of Circuits
42
Number of Phases
1,3 Phase
Number of Spaces
42
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
65 kA
Short Circuit Current Ratng
65 kA
Surface Finish
Baked Enamel Gray
Type
MAIN BREAKER CONVERTIBLE LOAD CENTER
Voltage
120/240 VAC
Wire Size
AWG 6...300 kcmil aluminium/copper NULL

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901267430
Finish
Baked Enamel
GTiN
00785901267430
Product UPC
78590126743

Dimensions

Height
965 mm
Warranty Length
18 mth
Width
362 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • KITWISER2PLUGCO_TO
  • KIT_WISER2PLUG_TO
  • PK23GTAL
  • PSDS
  • QH230
  • QHB115
  • QHB215
  • QO115EPD1200
  • QO115VHGFI
  • QO120PDFC
  • QO120PL5393
  • QO120PLILC
  • QO120VHPCAFI
  • QO130PL5393
  • QO130VHGFI
  • QO1530
  • QO2150VH
  • QO2155237
  • QO2175
  • QO2175SB
  • QO2200VH
  • QO220PL
  • QO2255219
  • QO225VH
  • QO230PL
  • QO230PLILC
  • QO260VH1021
  • QO270VH
  • QO315GFI
  • QO315VH
  • QO3201021
  • QO320HID
  • QO325VH
  • QO3405238
  • QO3605273
  • QO3701021
  • QO370VH
  • QO3801021
  • QO3805273
  • QO380VH
  • QOC42UF
  • QOFPCP
  • QOH2110
  • QOH280
  • QO115PCAFIC
  • QO250PSPD
  • QOC42US
  • HEPD25
  • QO120PCAFIC
  • QOC42UC
  • HEPD50
  • QO115PDFC
  • QOC42UFW
  • HEPD80
  • QO2125CP
  • QOCMF42UC
  • HEPD25MKF
  • QOCMF42UCW
  • HEPD58MKF
