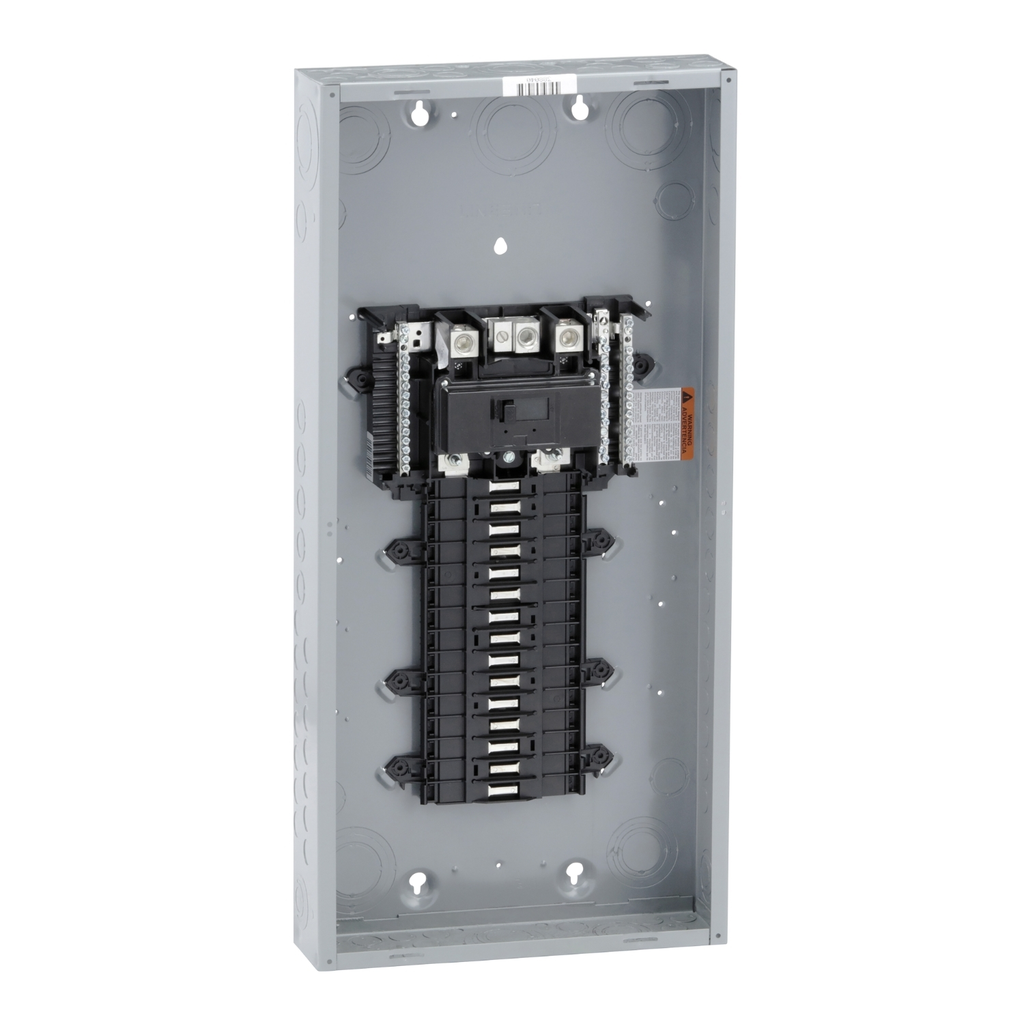

Square D QO130M200P 200A 120/240V 1phase Convertible Main Breaker Load Center, Plug-On Neutral, 30 Spaces / 40 Circuits, NEMA-1, Gray

Manufacturer: Square-D / Schneider | Catalog # QO130M200P | Cooper Electric Part # 805053
$1,043.00/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Single Three
Main Breaker Main Lug
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
27 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
QO® Circuit Breaker Load Centers, QO130M200P, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Technical Information

Amperage
200 Amp
Cable Size
4 AWG TO 250 KCMIL (ALUMINUM/COPPER)
Circuit Breaker Type
QOM2
Conductor Size
4 AWG-250 kcmil
Cover Type
Order Separately
Current
200 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
22 kAIC
Line Rated Current
200 A
Material
Tin Plated Copper: Busbar
NEMA Size
1
Number of Circuits
30
Number of Phases
1,3 Phase
Number of Spaces
30
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Surface Finish
Baked Enamel Gray
Type
MAIN BREAKER CONVERTIBLE LOAD CENTER
Voltage
120/240 Volt
Wire Size
AWG 4...250 kcmil aluminium/copper NULL

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901242536
Finish
Baked Enamel
GTiN
00785901242536
Product UPC
78590124253

Dimensions

Height
29.84 Inch
Warranty Length
18 mth
Width
14.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0067787683
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.9 kg CO2 eq.
  • 0.9007464968
Phase
  • 1 phase 3 wires
Related Products
  • QOM2200VH1021
  • QO2100CP
  • QOFPCP
  • QOC30UF
  • QOC30US
  • QOC30UC
  • QO2175SB
  • QO250PSPD
  • HEPD25
Material
  • tin plated copper: busbar
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 62 kg CO2 eq.
  • 61.9941720588
Nema Degree Of Protection
  • NEMA 1 indoor enclosure
Persona Type Names
  • End User
  • Consumer
  • Contractor
  • Original Equipment Manufacturer
  • Electrician
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0.1 kg CO2 eq.
  • 0.087341
Accessory Products
  • PK15GTA
Persona Type Ids
  • EU
  • EUA
  • LC
  • OM
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 2.9040648214
  • 3 kg CO2 eq.
Tightening Torque
  • Cover 20 lb.in
AWG Gauge
  • AWG 4...250 kcmil aluminium/copper
UE Rated Operational Voltage
  • 120/240 V AC
Surface Finish
  • baked enamel Gray
