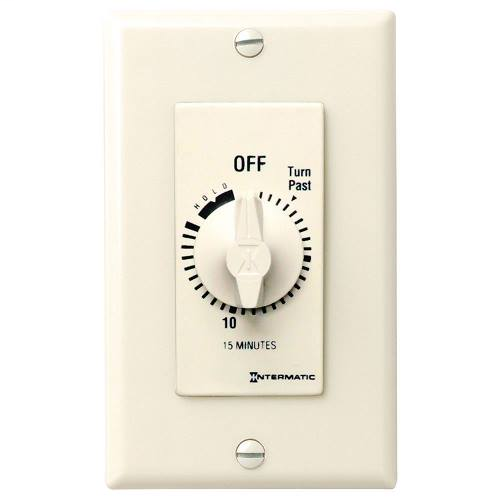

Product image for Intermatic FD15MH 15 Minute 125 to 277 VAC 60 Hz SPST Ivory Countdown Timer with 15 Minute Hold
Email

Intermatic FD15MH 15 Minute 125 to 277 VAC 60 Hz SPST Ivory Countdown Timer with 15 Minute Hold

Manufacturer: Intermatic, Inc | Catalog # FD15MH | Cooper Electric Part # 80445
$59.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Connection Type
Teeter Type
Contact Configuration
1 NO
Contact Rating
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Frequency
50/60 Hz
Horsepower
1 hp
Input Voltage
125-277 V
Max Operating Temperature
104 degrees F
Min Operating Temperature
0 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
104 degrees F
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,UL Listed,UL Recognized
Switch Type
SPST
TC Connection
Teeter Type
Type
Decorator Spring Wound Auto-Off
Voltage
125-277 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275185548
Color
Ivory
GTiN
00078275185548
Product UPC
07827518554
Weight
0.299 lb

Dimensions

Depth
31.8 mm
Height
104.8 mm
Warranty Length
1 yr
Width
44.5 mm
Features
  • No electricity required to operate
  • Replaces any standard or decorator single or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Models available from 5-minute to 12-hour countdown time intervals
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required
Related Accessories and Parts
  • 146MT573 146MT574 146MT575 148FD5066
Applications
  • Bathroom Fans
  • Spas
  • Hot Tubs
  • Storage Closets
  • Garage Lights
